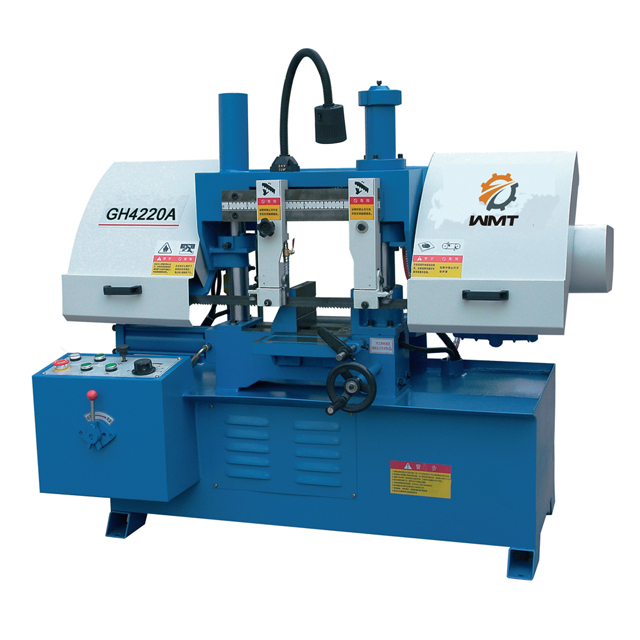

GH4220A 7-6/7" Dual Column Horizontal Band Saw

  • GH4220A
  • WMT
Quantity:

Product Description

GH4220A



GH4220A
Main motor power kw 1.5
Hydraulic motor power kw 0.55
Coolant pump motor power kw 0.04
Blade linear speed m/min 27/45/69
Blade feed type
 hydraulic stepless
Main drive structure
 worm wheel
Blade size mm 2800X27X0.9
Machine dimensions mm 1400X900X1100
Blade tension type
 manual
Workpiece feed type
 manual
Workpiece clamp type
 hydraulic
N.W. kgs 260
Cutting range (round) mm Φ200
Cutting range (rectangular) mm 200X200
Features:
Double column structure vertical lifting  with high stability.
The cutting speed is variable and hydraulic.
Workpiece is clamped by hydraulic control and easy to operate.
Hydraulic clamping on three axis is available.
