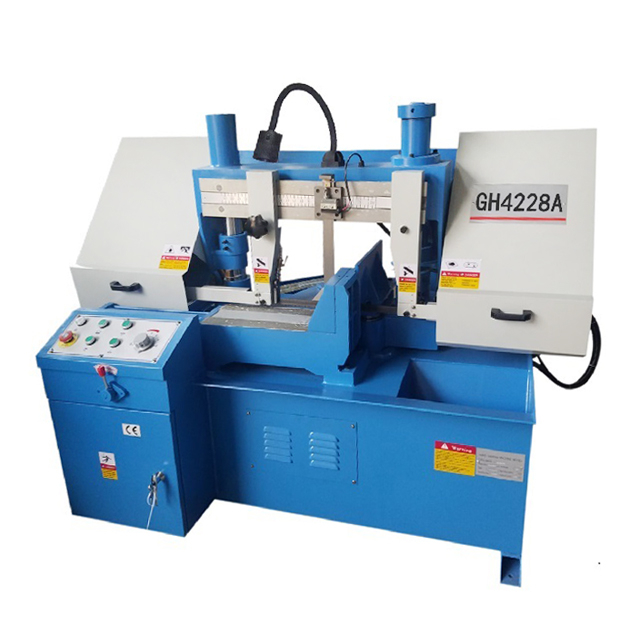

GH4228A 11-2/5" Dual Column Horizontal Band Saw

  • GH4228A
  • WMT
Quantity:

Product Description

GH4228A

SPECIFICATION FOR BAND SAW MACHINE GH4228A
Main motor power
2.2kw
Hydraulic motor power
0.55kw
Coolant pump motor power
0.04kw
Blade linear speed
27/45/69m/min
Blade feed type
Hydraulic stepless
Main drive structure
worm wheel
Blade size
3505X27X0.9mm
Machine dimensions
1860X1000X1400mm
Blade tension type
manual
Workpiece feed type
manual
Workpiece clamp type
hydraulic
N.W.
610kgs
Cutting range (round)
280mm
Cutting range (rectangular)
280X280mm

Features:

(1)Double column structure vertical lifting  with high stability.

(2)The cutting speed is variable and hydraulic.

(3)Workpiece is clamped by hydraulic control and easy to operate.

(4)Hydraulic clamping on three axis is available.


Dedicated to the policy of precision and promotion from stability, the group spares no effort in innovation, improvement, integrity management and insured quality.
