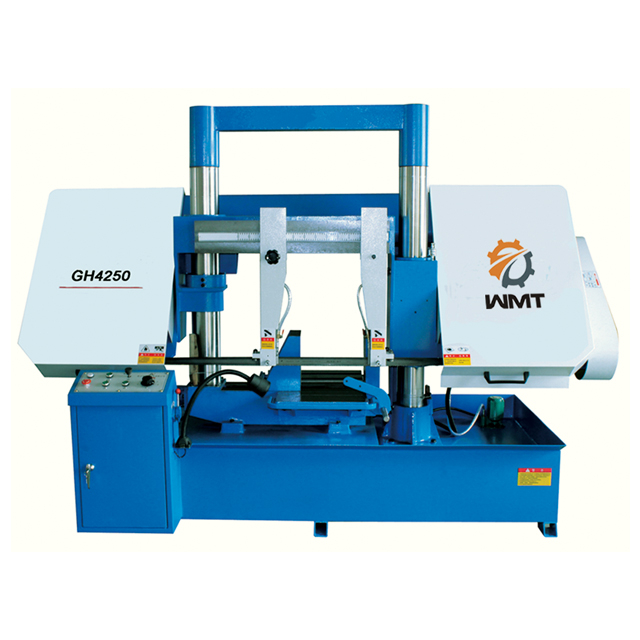

GH4250 19-2/3" Dual Column Horizontal Band Saw

  • GH4250

  • WMT

Availability:
Quantity:

Product Description

GH4250

Features:
Double column structure vertical lifting  with high stability.
The cutting speed is variable and hydraulic.
Workpiece is clamped by hydraulic control and easy to operate.
Hydraulic clamping on three axis is available.



GH4250
Main motor power kw 5.5
Hydraulic motor power kw 0.75
Coolant pump motor power kw 0.09
Blade linear speed m/min 27/45/69
Blade feed type
 hydraulic stepless
Main drive structure
 worm wheel
Blade size mm 5800X41X1.3
Machine dimensions mm 2800X1400X1900
Blade tension type
 manual
Workpiece feed type
 manual
Workpiece clamp type
 hydraulic
N.W. kgs 1900
Cutting range (round) mm Φ500
Cutting range (rectangular) mm

500X500

GH4250细节
