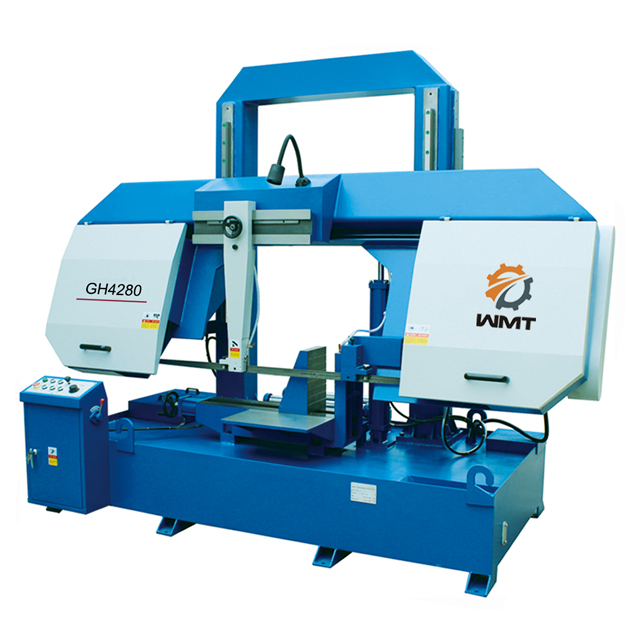

GH4280 31-1/2" Variable Speed Horizontal Metal Cutting Bandsaw

  • GH4280
  • WMT
Quantity:

Product Description

GH4280


GH4280
Main motor power 7.5kw
Hydraulic motor power 2.25kw
Coolant pump motor power 0.125kw
Blade linear speed 27/45/69m/min
Blade feed type 液压无级 hydraulic stepless
Main drive structure 齿轮减速机 gear speed reducer
Blade size 8820X54X1.6mm
Machine dimensions 4130X2150X2500mm
Blade tension type 液压 hydraulic
Workpiece feed type 电动 motor drive
Workpiece clamp type 液压 hydraulic
N.W. 4300kgs
Cutting range (round) Φ800mm
Cutting range (rectangular) 800X800mm

Features:
Double column structure vertical lifting  with high stability.
The cutting speed is variable and hydraulic.
Workpiece is clamped by hydraulic control and easy to operate.
Hydraulic clamping on three axis is available.
