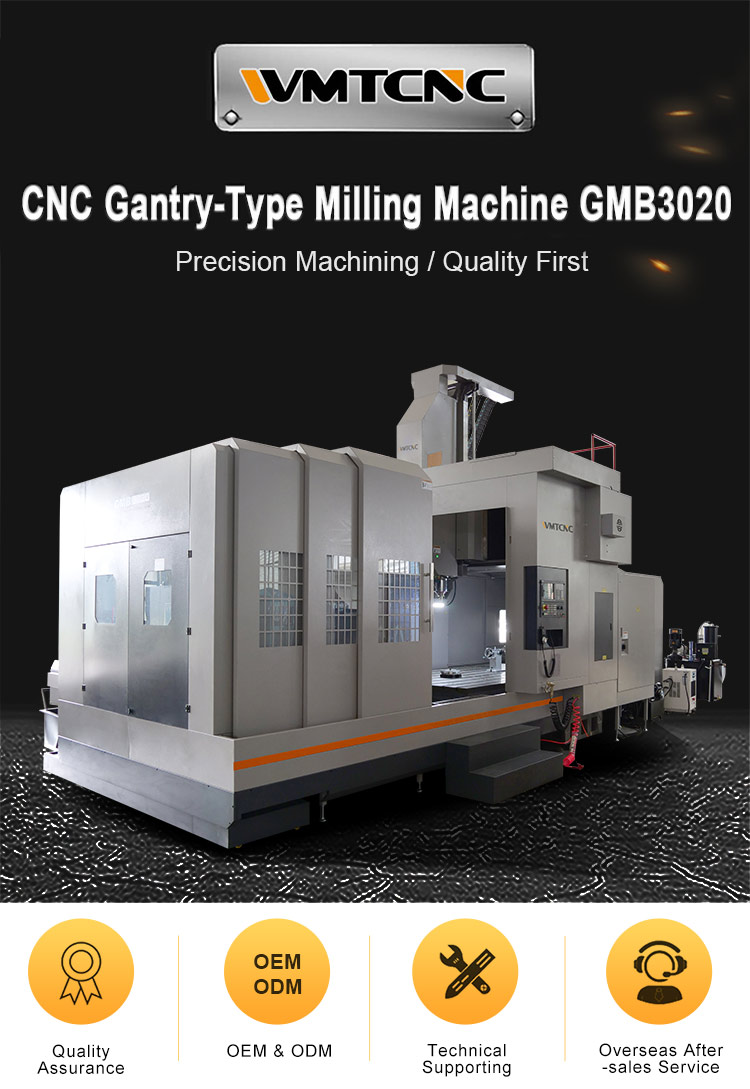

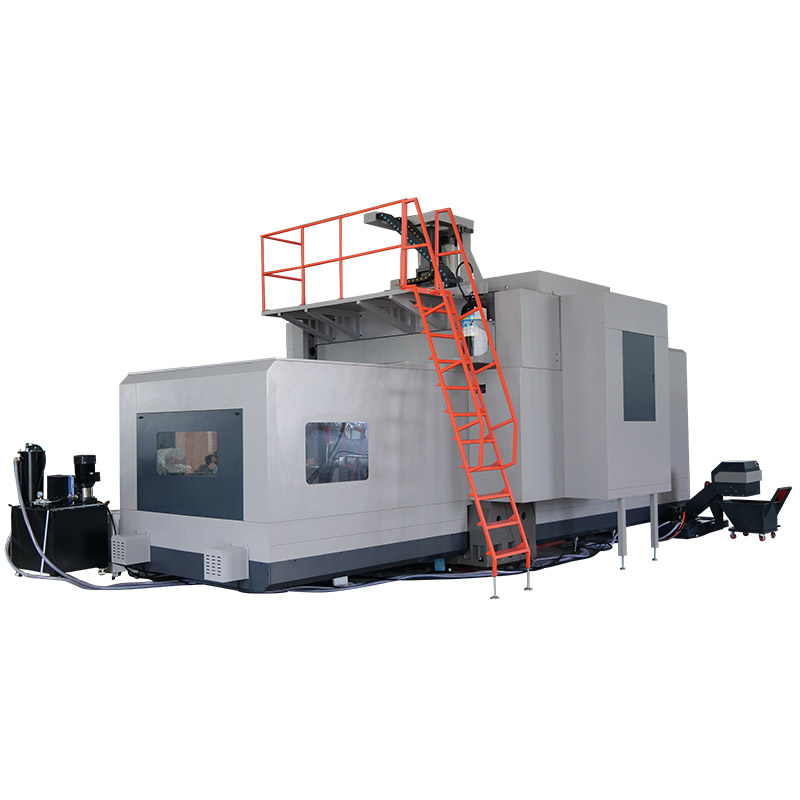

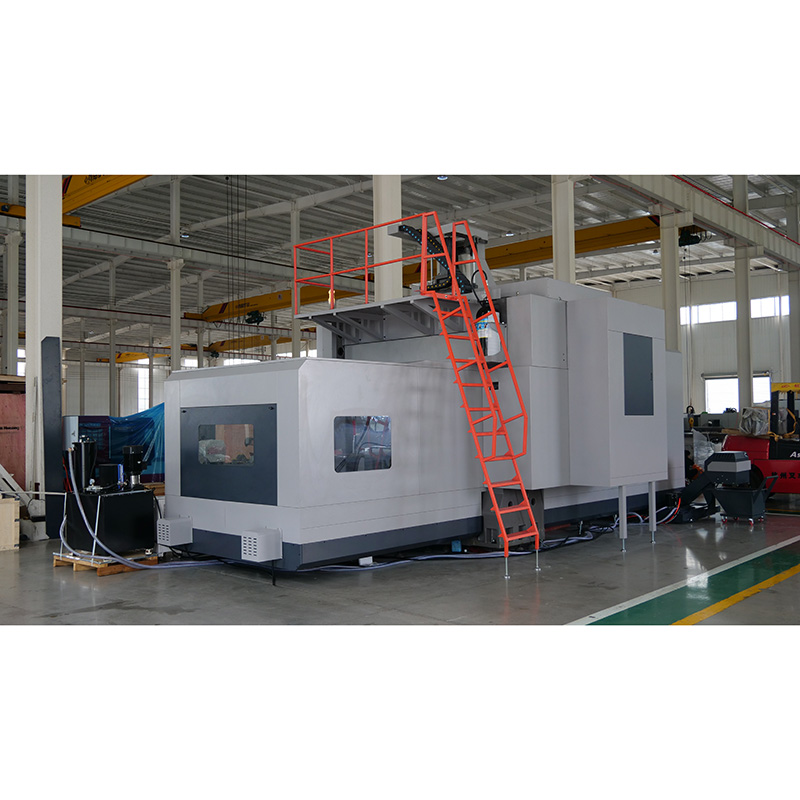

Main Features:
1. In line with design concept of driven at the center of gravity, the machine equipped with double balance counter weight. Meanwhile the center of ram falls on the center of axis, with equalized ram guideway allocation. The design eliminates bending of ram guideway when ram moves up and down. Consequently Z axis can perform with high stability and accuracy.
2. Equipped with oil chiller, cycle cooling source for spindle unit and motor cabine.
3. Equipped with heat exchanger, the electric cabinet can abstrcat heat efficiently during work.
4. Lubrication station is controlled by CNC system which can test and alarm automatically.
| Specification | GMB3020 |
| Table size |
|
| Worktable size(L×W) | 1800×3000mm |
| T-slots size(N×W×D) | 9-22×190mm |
| Travel |
|
| X/Y/Z axis travel | 3200×2000×1000mm |
| Capacity |
|
| Max. distance from spindle end to table surface | 180-1180mm |
| Distance between two columns | 2000mm |
| Spindle |
|
| Spindle taper | BT50/190 |
| Spindle speed | 40-6000r/min |
| Max. spindle output torque | 143N.m |
| Spindle motor power | 15/18.5kw |
| Motor model | βiIP 30 |
| Power volume | 50KVA |
|
|
| Gear reduction ratio | 1:1/4:1 |
| Max. output torque of gear spindle | 560N.m |
| Feed |
|
| Rapid feed speed (X/Y/Z) | 15/15/12m/min |
| Cutting feed speed range | 1-10000mm/min |
| Feeding motor model (X/Y/Z) | Bis40/30/30B |
| Feeding motor power (X/Y/Z) | 3/3/2.5kw |
| Feeding motor torque (X/Y/Z) | 90/68/68Nm |
| Ball screw(diameter+lead) |
|
| X/Y/Z axis ball screw | 8020/5010/5010mm |
| X/Y/Z guideway type | 55-10/55-4/Linear guideway |
| Tool magazine |
|
| Tool magazine capacity | 24/32T |
| Max. weight of the tools | 18kg |
| Max. diameter of the tool(fully tools) | Φ110mm |
| Max. diameter of the tool(spacing tool) | Φ220mm |
| Max. length of tool | 350mm |
| Tool change time(T-T) | 3s |
| Positioning accuracy(JB/T8771.4-1998) |
|
| Positioning accuracy(X/Y/Z) | 0.030/0.020/0.015mm |
| Re-positioning accuracy(X/Y/Z) | 0.014/0.012/0.010mm |
| Machine dimension |
|
| L×W×H | 9000×4250×4100mm |
| Machine weight |
|
| Max. loading of worktable | 5000kg |
| N.W | 24000kg |
