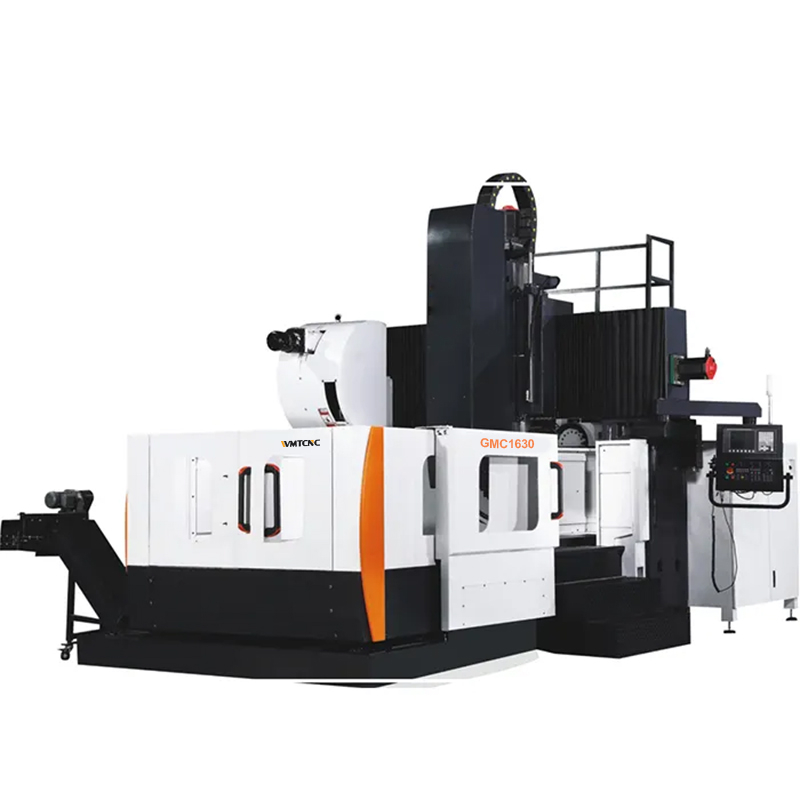

Specification | GMC1630 |
Worktable |
|
Worktable size (L×W) | 3000×1500mm |
T-slots size (N×W×D) | 9-22×160mm |
Travel |
|
X/Y/Z axis travel | 3100/1650/800mm |
Capacity |
|
Distance from spindle nose to worktable surface | 160-960mm |
Distance between two columns | 1650mm |
Spindle |
|
Spindle taper | BT50 |
Spindle power | 15/18.5kw |
Max. spindle speed | 6000rpm |
Spindle torque | 143N·m |
Feed |
|
Rapid feed speed (X/Y/Z) | 10/10/10m/min |
Ball screw (diameter+lead) |
|
X/Y/Z axis ball screw | 6316/5016/5016 |
X/Y/Z guideway type | X/Y:roller linear guideways, Z:box guideway |
Tool magazine |
|
Tool magazine capacity | 24T |
Max. length of tool | 350mm |
Tool change time (T-T) | 3s |
Positioning accuracy (GB standard) |
|
Positioning accuracy(X/Y/Z) | 0.03mm |
Re-positioning accuracy(X/Y/Z) | 0.018mm |
Machine dimension |
|
L×W×H | 8800×5800×5000mm |
Machine weight |
|
Max. loading of worktable | 7t |
N.W | 26t |
