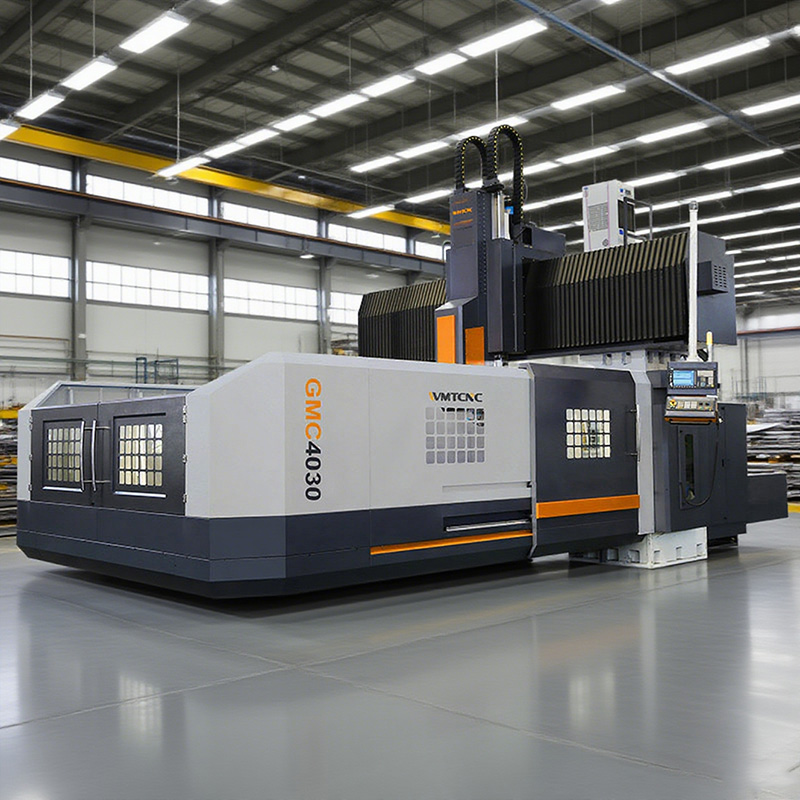

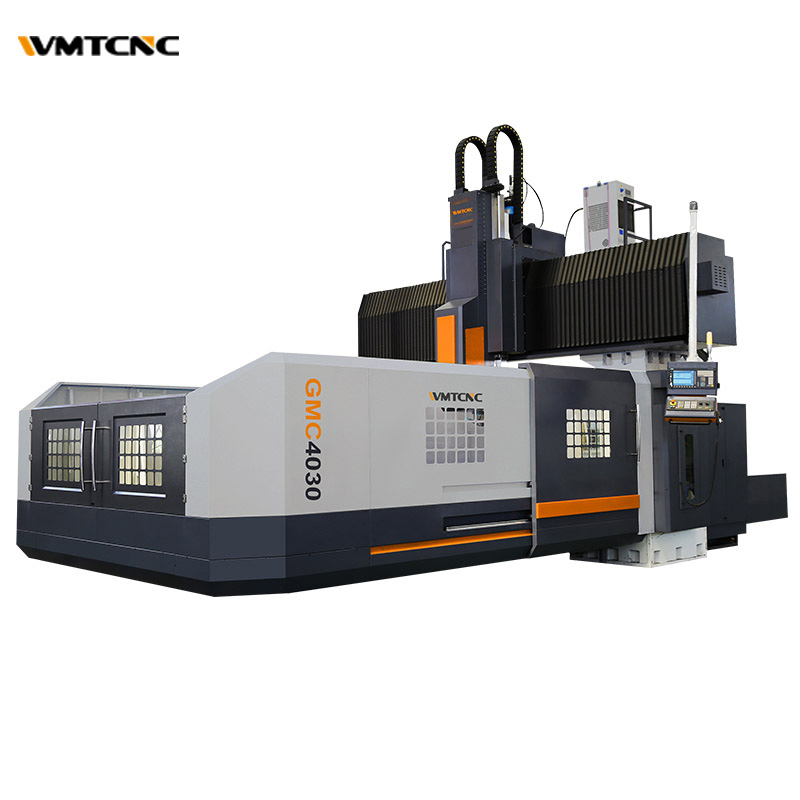

GMC4030 High Performance CNC Gantry Milling Machine Double Column CNC Milling Machine for Metal Processing

Share to:

GMC4030 High Performance CNC Gantry Milling Machine Double Column CNC Milling Machine for Metal Processing

The machine tool has the characteristics of strong rigidity, symmetrical mechanism and high stability. By optimizing the structure of the basic parts and improving the dynamic performance of the product. Get the perfect combination of high power, high torque, high efficiency and high precision processing.

Model:
GMC4030
Brand:
WMTCNC

Availability:

Quantity:



Inquire Add to Basket

Product Description

Main Features:

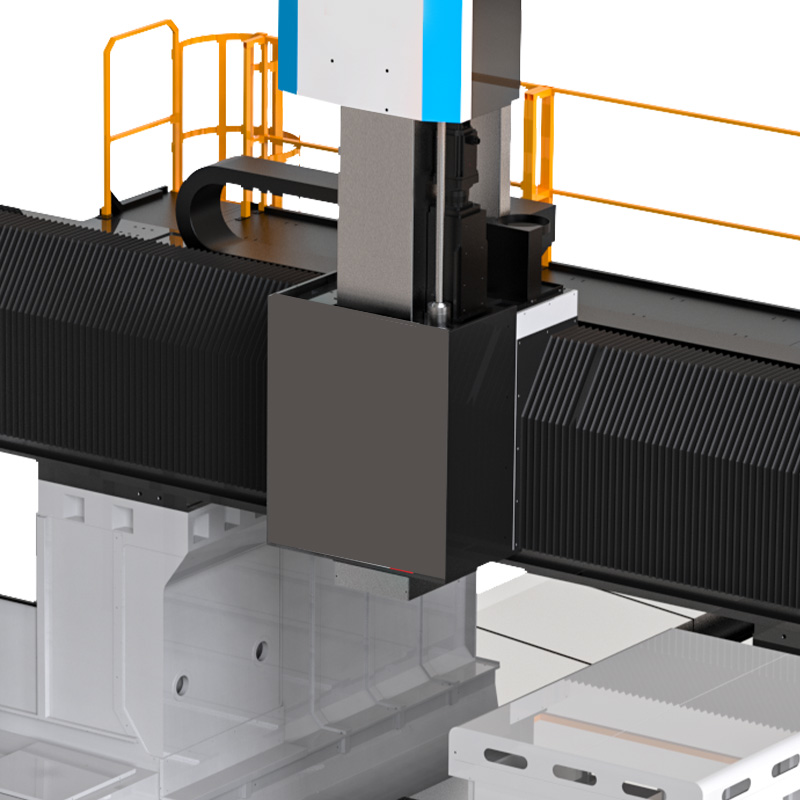

1. In line with design concept of driven at the center of gravity, the machine equipped with double balance counter weight. Meanwhile the center of ram falls on the center of axis, with equalized ram guideway allocation. The design eliminates bending of ram guideway when ram moves up and down. Consequently Z axis can perform with high stability and accuracy.

2. Equipped with oil chiller, cycle cooling source for spindle unit and motor cabine.
3. Equipped with heat exchanger, the electric cabinet can abstrcat heat efficiently during work.

4. Lubrication station is controlled by CNC system which can test and alarm automatically.

GMC4030_01

Specification	GMC4030
Worktable
Worktable Size(L×W)	2200×4000mm
T-slots size(N×W×D)	11×28×200mm
Travel
X/Y/Z axis Travel	4200/3150/1000mm
Machining range
Distance between gantry columns	3000mm
Distance from spindle nose to worktable surface	250-1250mm
Spindle
Spindle taper	BT50-190
Spindle power	22/26kw
Max.spindle speed	6000rpm
Feed
Max.feed speed	8000mm/min
Rapid feed speed(X/Y/Z)	10/12/10m/min
Tool magazine
Tool Magazine capacity	24T
Positioning accuracy
Positioning accuracy(X/Y/Z)	0.025/0.02/0.02mm
Re-positioning accuracy(X/Y/Z)	0.016/0.014/0.013mm
Mschine dimension
L×W×H	10300×5800×5600mm
Machine weight
Max.loading of worktable	15000kg
Machine weight	45000kg
