HBS330-A High Quality Rotating Horizontal Band Sawing Machine with CE

  • HBS330-A
  • WMTCNC
Quantity:

Product Description

Features:

The value base use aviation aluminum alloy, better heat dissipation and easier for maintenance.Screw type chip conveyor will convey chips automatically to the chip stock box when machine is in operation. It has highly consistent stability, weld joint is smooth, no lack of weld and false weld. Special fast drop rod water outlet design with improved water exit points; improves coolant effect and prolongs blade life.

Specification:

SpecificationHBS-330A
Blade speed10-120m/min
Blade size4115mmL*34mmW*1.1mmT
blade tensionhydraulic tension
total power7kw
blade main motor5.5kw
hydraulic motor0.75KW
coolant motor90W
chip cleaner motor40W
single feeding distance500mm
hydraulic oil70L
cutting oil100L

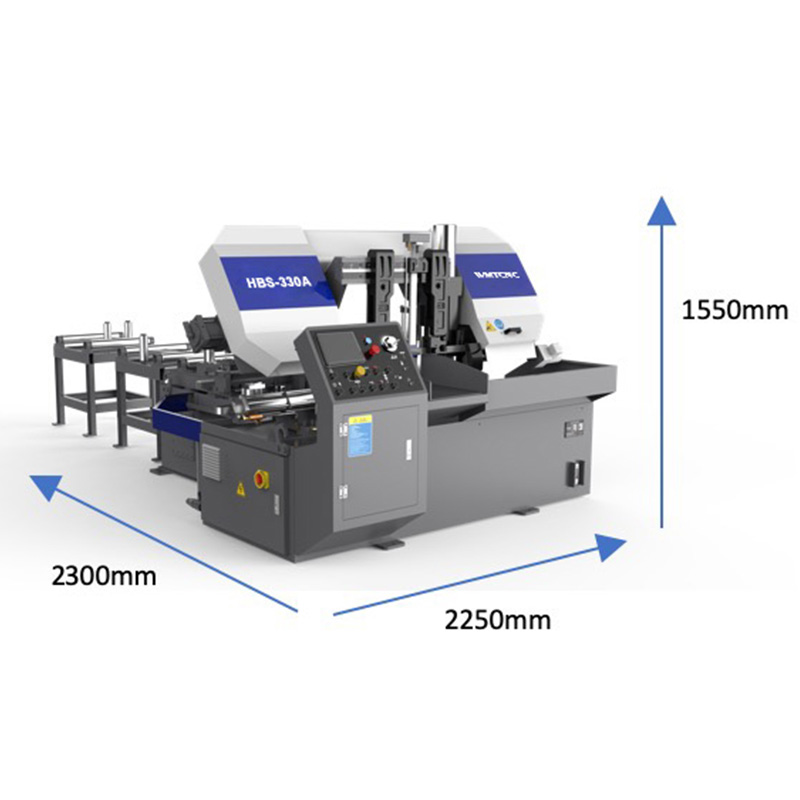

machine size2250*2300*1550mm
machine weight≈1750




Dedicated to the policy of precision and promotion from stability, the group spares no effort in innovation, improvement, integrity management and insured quality.
