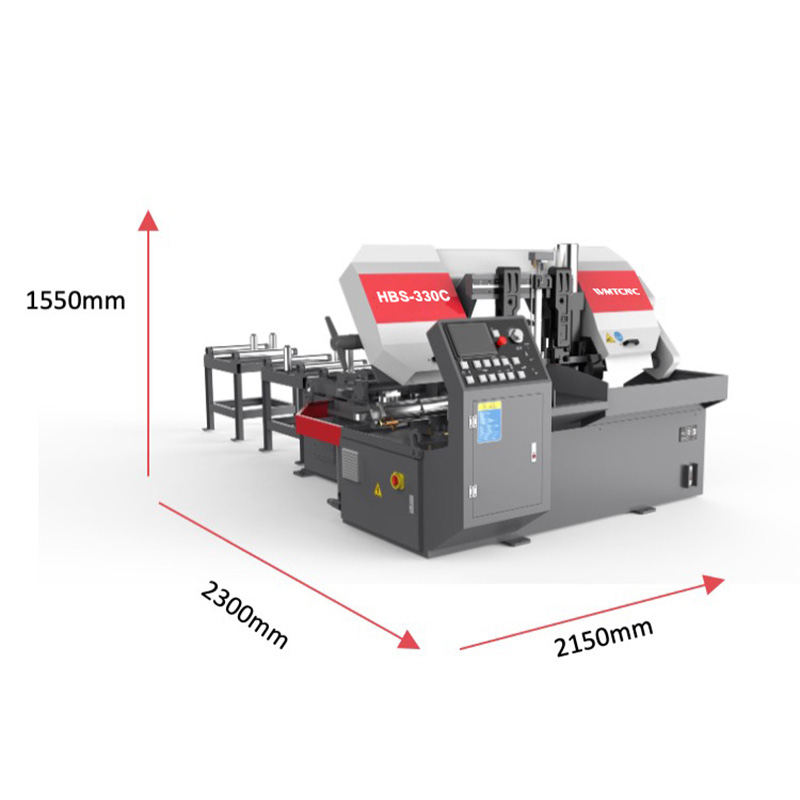

HBS330-C High-accuracy Rotating Horizontal Band Sawing Machine with CE

  • HBS330-C
  • WMTCNC
Availability:
Quantity:

Product Description

Features:

The value base use aviation aluminum alloy, better heat dissipation and easier for maintenance.Screw type chip conveyor will convey chips automatically to the chip stock box when machine is in operation. It has highly consistent stability, weld joint is smooth, no lack of weld and false weld. Special fast drop rod water outlet design with improved water exit points; improves coolant effect and prolongs blade life.

Specifications:

Cutting capacity(mm)Square: 330×330   Round: 330
Blade speed(m/min)25/40/58/80
Blade size(mm)4115mm(L)*34mm(W)*1.1mm(T)
Blade tensionManual tension
Total power5kw
Blade main motor4kw
Hydraulic motor0.75KW
Coolant motor90W
Single feeding distance500mm
Oil tank volumeHydraulic oil(L)70
Hutting oil(L)100
Machine size(mm)2150(W)*2300(L)*1550(H)
Machine weight(kg)≈1750
Main transmission structureGear reducer
Saw blade tension modeHydraulic
Clamping methodHydraulic vise
Sawdust cleaning methodWire brush and cutting coolant
