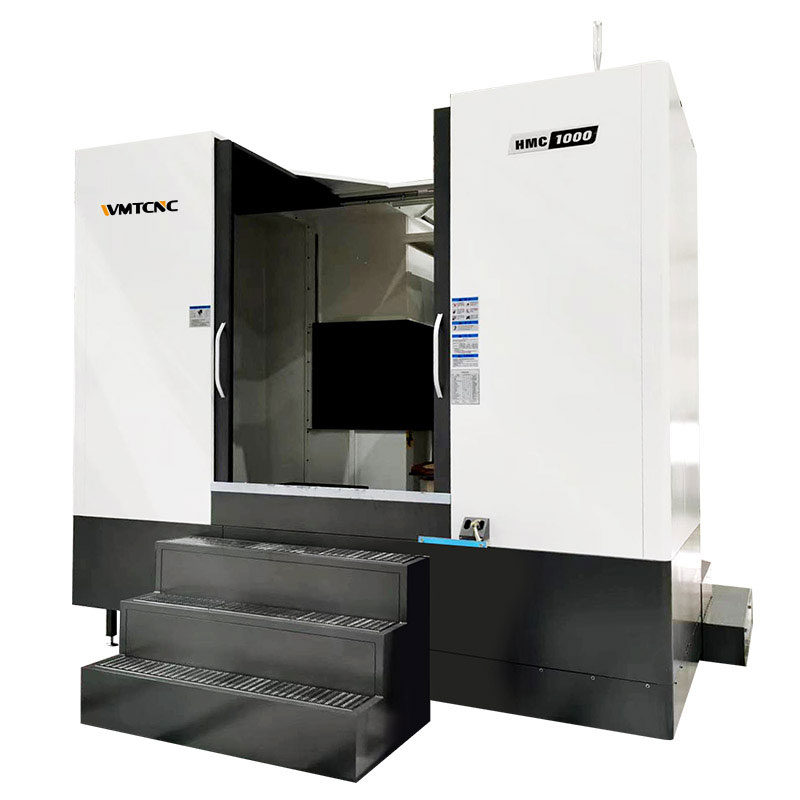

Product Description
Features:
1. Flexible processing capacity.
2. High machining accuracy.
3. High processing productivity.
4. Reduce operator labor.
5. Complex machined parts.
6. Stable processing quality.
| Specification | Unit | HMC1000 |
| Table travel (X,Y,Z) | mm | 1700*1350*1400 |
| Table size | mm | 1000*1000 |
| Max. load of worktable | kg | 3000 |
| Worktable indexing | 1°*360° | |
| Worktable positioning accuracy | 10″ | |
| Worktable re-positioning accuracy | 2″ | |
| Rapid feed speed | m/min | 24/24/24 |
| Spindle speed | rpm | 30-3000 |
| Torque of spindle | N.m | 770（gear） |
| Tool shank type | BT50 | |
| Main motor power | kw | 22/26 |
| Tool magazine capability | qty | 40 |
| Tool weight | kg | 25 |
| Positioning accuracy (X,Y,Z) | mm | ±0.005/300 JIS |
| Repeat positioning accuracy (X,Y,Z) | mm | ±0.003/300 JIS |
| Machine weight | kg | 25000 |
