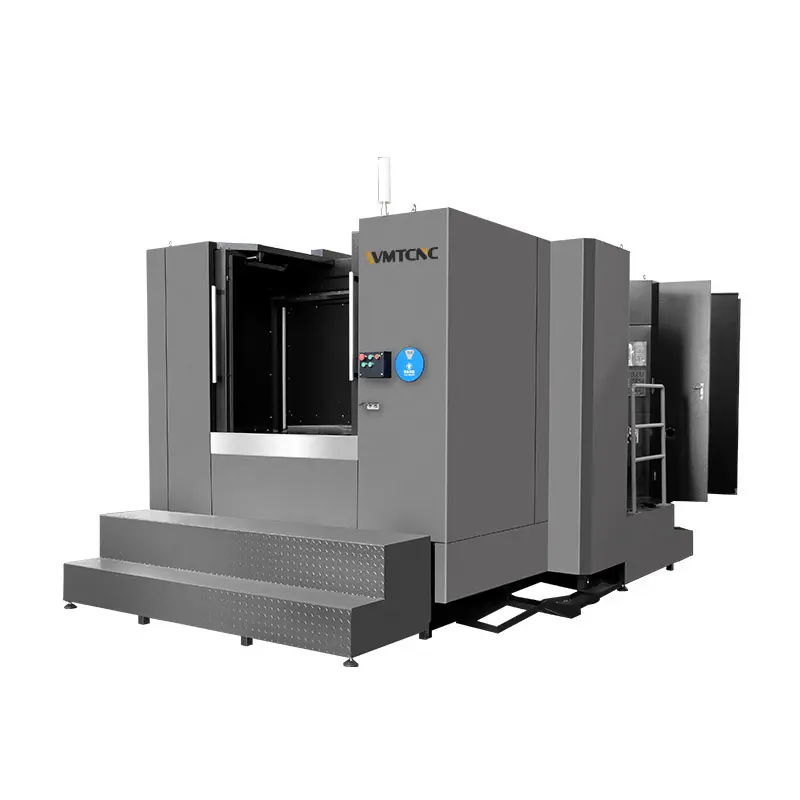

HMC630A
WMT
8457101000
| Quantity: | |
|---|---|
Product Description
Features:
3-Axis Plus Rotary Table: It enables the workpiece to be machined in the following four faces except for the mounting surface and top surface after one clamping, which is most suitable for machining box parts.
The automatic exchange workbench can process the workpiece on the workbench at the loading and unloading position while processing the workpiece on the workbench at the working position, thereby greatly shortening the auxiliary time and improving the processing efficiency.
| Specification | HMC630A(Inverted T) |
| Worktable | |
| Worktable size (W×L) | 630×700mm |
| Workpiece clamping type | 24×M16 |
| Changing time of worktables | N/A |
| Rotary diameter of workpiece | 1380mm |
| Travel | |
| X/Y/Z axis | 1050/750/900 |
| Distance from spindle center to worktable surface | 120-870mm |
| Distance from worktable center to spindle nose | 130-1030mm |
| Spindle | |
| Spindle hole taper | BT50 |
| Spindle speed range | 5300rpm |
| Drive type (Spindle) | Belt type |
| Spindle power | 15/18.5kw |
| Feed | |
| X/Y/Z axis rapid feed speed | 24/24/24m/min |
| B axis rapid feed speed | 10m/min |
| Tool magazine | |
| Tool magazine model | Manipulator |
| Capacity | 24T |
| Max. tools weight | 15kg |
| Max. tools length | 350mm |
| Tool change time | 5.5s |
| Accuracy(National standard) | |
| Positioning accuracy (X/Y/Z) | ±0.010mm |
| Re-positioning accuracy(X/Y/Z) | ±0.006mm |
| B axis division accuracy | 10’’ |
| B axis re-division accuracy | 5’’ |
| Machine Size | |
| L×W×H | 4800x3200x2950mm |
| Machine weight | |
| Max. loading of worktable | 1200kg |
| Machine weight | 12000kg |
