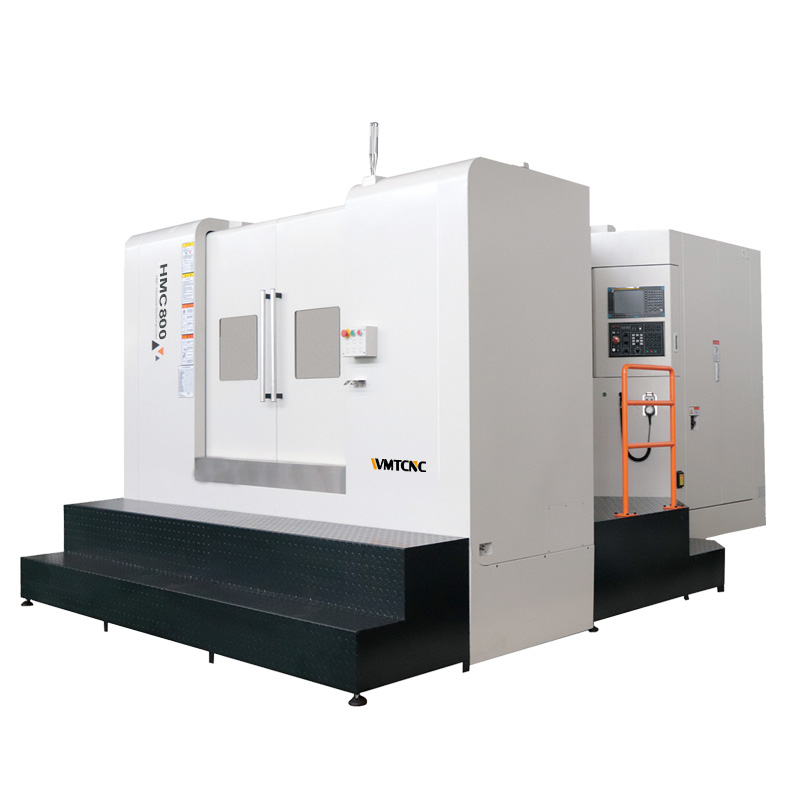

Heavy Duty Horizontal Cnc Milling Machine HMC800 Machining Center With Automatic Tool

Model:
HMC800
Brand:
WMTCNC
Code:
8457101000

Availability:

Quantity:



Inquire Add to Basket

Product Description

Main Features:

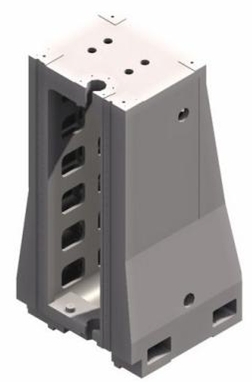

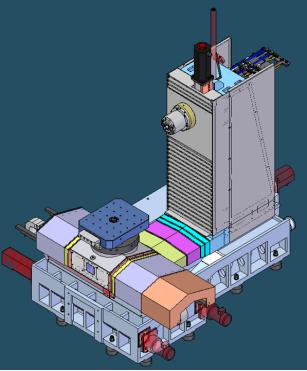

1. Machine body main structure, ‘┻’ shape and column moving structure to afford high rigidity and travel speed.

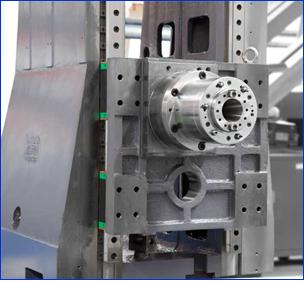

2. Standard machine with spindle house oil cooling system to reduce heat distortion during working and keep the stable machining accuracy.

3. Tool magazine, BT50, 24 position Arm type tool magazine are made by OKADA and POJU who are Professional tool manufacturers in Taiwan.

4. Standard JAPAN and GERMANY brand Bearings for all ball screws.

5. TOP TAIWAN brand Ball screw & linear guideway.

6. Three Automatic chip conveyors, two screw type conveyor to move the chips from inside machine to outside chain type conveyor during working, and the outside chip conveyor transfer the chips to chips tank. The whole process is smoothly and high efficiency to clean the chips, reduce the machine body heat, escape from machine body heat distortion.

卧加详情_800

Specification	HMC800
Worktable
Worktable size (W×L)	800×800mm
Workpiece clamping type	24×M16
Changing time of worktables	/
Rotary diameter of workpiece	1750mm
Travel
X/Y/Z axis	1600/1000/1000mm
Distance from spindle center to worktable surface	160-1160mm
Distance from worktable center to spindle nose	200-1200mm
Spindle
Spindle hole taper	BT50
Spindle speed range	6000rpm
Drive type (Spindle)	Belt type
Spindle power	15/18.5kw
Feed
X/Y/Z axis rapid feed speed	24/24/24m/min
B axis rapid feed speed	10m/min
Tool magazine
Tool magazine model	Manipulator
Capacity	24T
Max. tools weight	15kg
Max. tools length	300mm
Tool change time	5.5s
Accuracy(National standard)
Positioning accuracy (X/Y/Z)	±0.012mm
Re-positioning accuracy(X/Y/Z)	±0.008mm
B axis division accuracy	12’’
B axis re-division accuracy	6’’
Machine Size
L×W×H	5600x4075x3180mm
Machine weight
Max. loading of worktable	1200kg
Machine weight	17000kg
