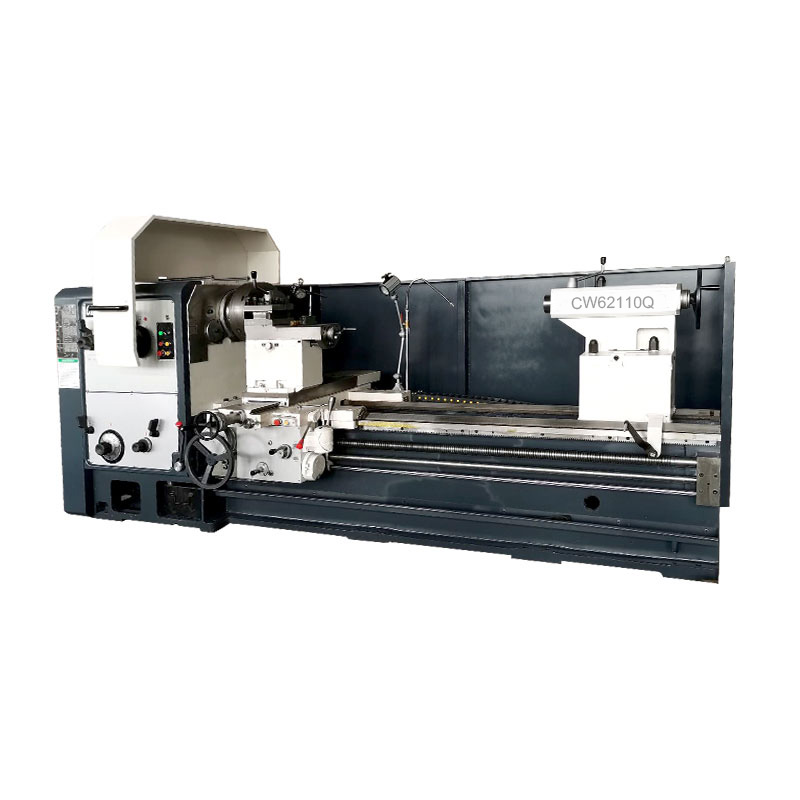

CW62110Q
WMTCNC
84581900
| Quantity: | |
|---|---|
Product Description
Features:
The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity, machine adopts the 250 casting iron, equipment with high frequency quenching, guide rail mill grinding process, stable machine tools with high precision, high rigidity, strong cutting.
Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.
The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.
| Max. Swing over bed | mm | φ1100 | ||
| Max. Swing over cross slide | mm | φ780 | ||
| Centers distance | mm | 3000 | ||
| Max. Cutting length | Mm | 2850 | ||
| Bed width and hardness | mm | 600 RC52 | ||
| Max. swing over gap and effective width of gap | mm | 1400/310 | ||
| Spindle | Spindle bore and nose | mm | 130；A2-11 | |
| Spindle front taper | mm | 140 | ||
| Spindle speed steps | 18 kinds | |||
| Spindle speed | r/min | 5.4-720 | ||
| Main motor power | kw | 11 | ||
| Motor power of fast moving motor | kw | 1.1 | ||
| Gap rapid speed | mm/min | 4000 | ||
| Cross feed step and range | mm/r | 64 kinds 0.06-24.3 | ||
| Ratio of transverse feed to longitudinal feed | 1/2 | |||
| Leadscrew pitch | 12（metric） | |||
| Threading | Metric thread | mm | 50 kinds 1-240 | |
| （There are 14 other non-standard threads） | ||||
| Inch thread | t.p.i | 26 kinds 14-1 | ||
| Module thread | mm | 53 kinds 0.5-120 | ||
| Pitch thread | Dp | 24 kinds 28-1 | ||
| Tail-stock | Diameter of tail-stock sleeve | mm | 120 | |
| Travel of tail-stock sleeve | mm | 250 | ||
| Tail-stock taper | MT6 | |||
| Turret | Type | Vertical four-station | ||
| Max. Diameter of Maximum rotation diameter of tool holder | mm | 780 | ||
| Lower toolpost travel | mm | 550 | ||
| Upper toolpost travel | mm | 200 | ||
| Coolant pump motor | W | 125W | ||
| Machine weight(around) | kg | 7000 | ||
| Machine overall size | LXWXH | mm | 5100×1700×1950 | |
| Max. Loading weight | t | 2.5 | ||
