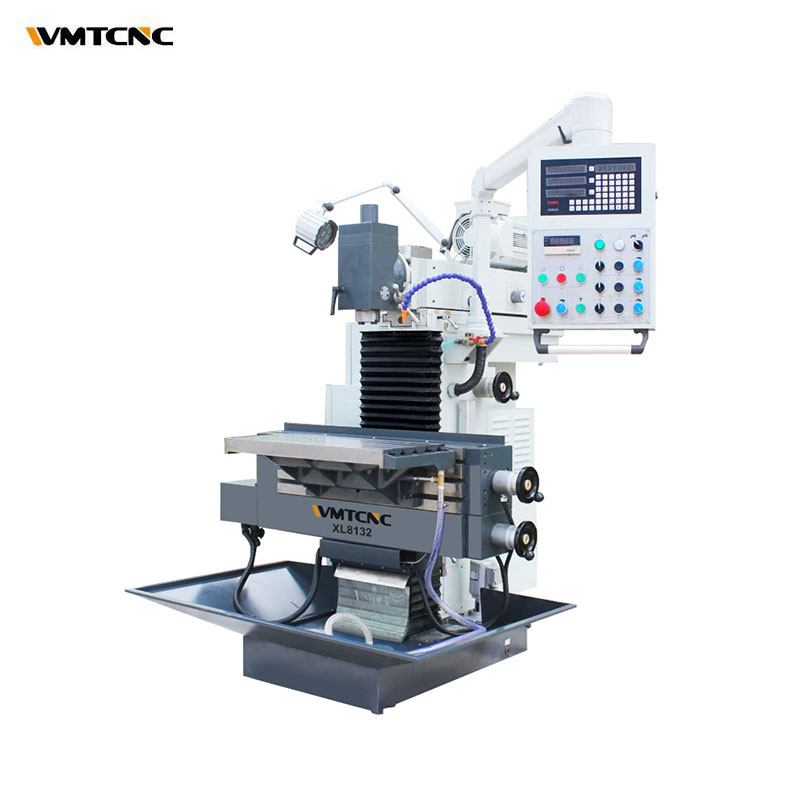

XL8132
WMTCNC
84592900
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds.
2. Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor.
3. Electronic handwheel adopted on X Y Z 3-axis, easy operating.
4. Automatic oil lubrication, cooling system, chip collector tray, CE Electric are standard.
| Specification | XL8132 |
| Table size | 750*320mm |
| Table travel (X/Y/Z) | 405/305/400mm |
| Table feed(X/Y/Z) | 10-1000mm/min |
| T-slots(work table) | 5-14x63mm |
| T-slots(vertical table) | 3-14x63mm |
| Spindle taper | NT40 |
| Spindle speed range | (2 steps)40-2000rpm |
| 3 to feed Ac servo motor torque | 7.7/7.7/10N.m |
| Table rapid speed | 1200mm/min |
| Max loading capacity | 160kg |
| Main motor power | 3.7kw |
| Vertical table dimensions | 890x225mm |
| Quill stroke | 60mm |
| Overall size | 1500x1700x1800mm |
| N.w | 1500kg |
