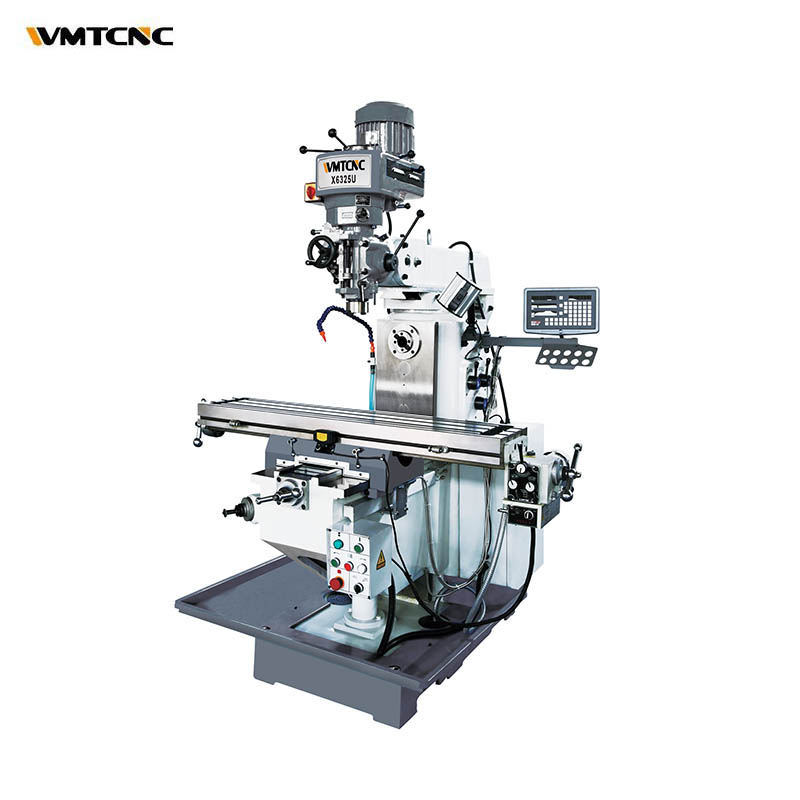

1. Rectangular guideway on Y and Z axis makes the machine stable and rigid.
2. DRO is optional.
3. The guideway on saddle is lined with TF wearable material.
4. Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.
|Table travel (X/Y/Z)||800×400×450mm|
|Spindle taper:vertical/horizontal||R8/NT30(V), NT40(H)|
|Distance between horizontal nose and table surface||0-400mm|
|Distance between spindle axis and ram surface||230mm|
|Vertical spindle variable speed||80-4200rpm(variable)|
|Vertical spindle step speed||66-4540rpm(16 steps)|
|Horizontal spindle step speed||40-1300rpm(12 steps)|
|Main motor power(V/H)||2.25kw, optional 3.75(vertical)|
|Overall size (L×W×H)||1650×1680×2450mm|
