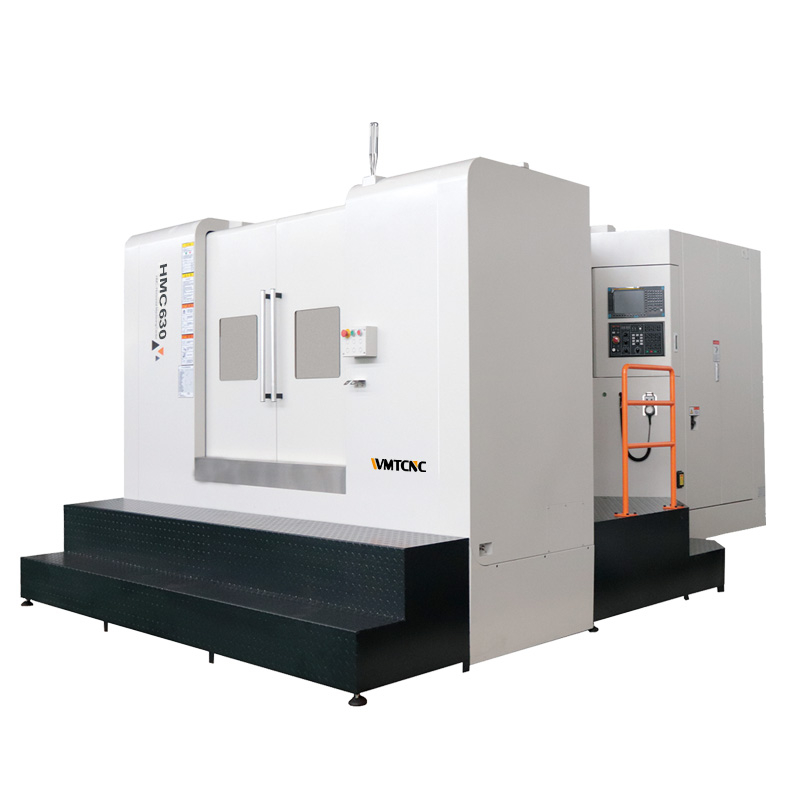

HMC630A
WMTCNC
8457101000
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Machine body main structure, ‘┻’ shape and column moving structure to afford high rigidity and travel speed.
6. Three Automatic chip conveyors, two screw type conveyor to move the chips from inside machine to outside chain type conveyor during working, and the outside chip conveyor transfer the chips to chips tank. The whole process is smoothly and high efficiency to clean the chips, reduce the machine body heat, escape from machine body heat distortion.
| Specification | HMC630A (Inverted T) |
| Worktable | |
| Worktable size (W×L) | 630×700mm |
| Workpiece clamping type | 24×M16 |
| Changing time of worktables | / |
| Rotary diameter of workpiece | 1380mm |
| Travel | |
| X/Y/Z axis | 1050/750/900mm |
| Distance from spindle center to worktable surface | 120-870mm |
| Distance from worktable center to spindle nose | 130-1030mm |
| Spindle | |
| Spindle hole taper | BT50 |
| Spindle speed range | 5300rpm |
| Drive type (Spindle) | Belt type |
| Spindle power | 15/18.5kw |
| Feed | |
| X/Y/Z axis rapid feed speed | 24/24/24m/min |
| B axis rapid feed speed | 10m/min |
| Tool magazine | |
| Tool magazine model | Manipulator |
| Capacity | 24T |
| Max. tools weight | 15kg |
| Max. tools length | 350mm |
| Tool change time | 5.5s |
| Accuracy(National standard) | |
| Positioning accuracy (X/Y/Z) | ±0.010mm |
| Re-positioning accuracy(X/Y/Z) | ±0.006mm |
| B axis division accuracy | 10’’ |
| B axis re-division accuracy | 5’’ |
| Machine Size | |
| L×W×H | 4800x3200x2950mm |
| Max. loading of worktable | 1200kg |
| Machine weight | 12000kg |
