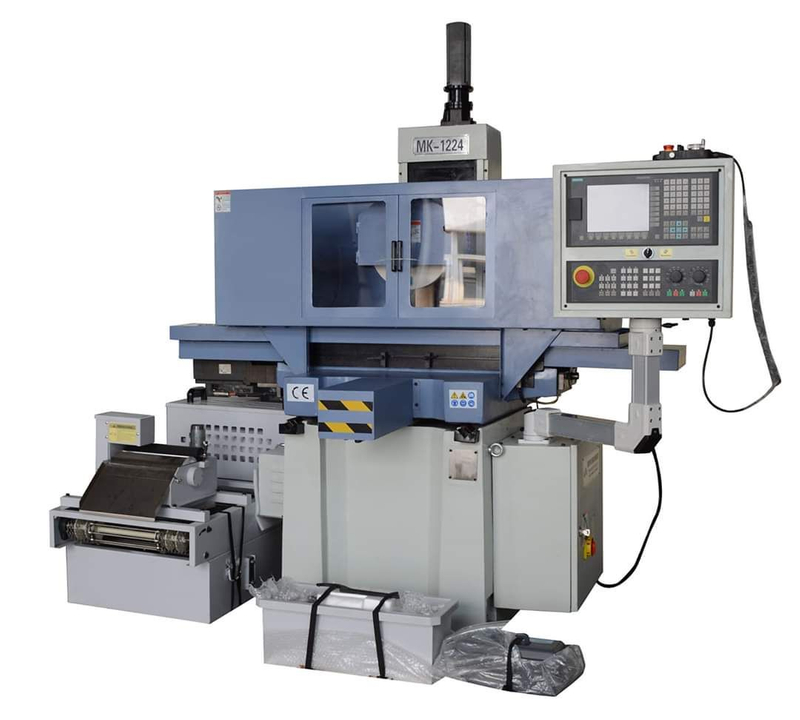

Hot Sale CNC Surface Grinder Machine MK1224 with CE Certificate

  • MK1224

  • WMT

Availability:
Quantity:

Product Description

Features:

1.Having reasonable structure, high rigidity, good looking and operating easily.

2.Transverse movement (front and rear) of work table is driven by servo motor and transmitted by Precision ball screw which can ensure precision, accurate positioning, automatic feed and fast forward and rewind functions.

3.Longitudinal movement (left and right) adopts a flat-type rail guideand controlled by servo motor

4.Vertical movement is transmitted by precision shaped screw and driven by servo motor which can ensure precision, accurate positioning, automatic feed and rapid up and down function.

5.Adopting SIEMENS CNC SYSTEM which has high degree of automation.

MK1224 (3)

Specification
Unit
MK1022
MK1224
MK4080
Max. workpiece to be ground(L*W*H)
m
520*250
650*300
800*400
Max. travel of table(L*W)
m
560*260
670*320
850*450
Table maximum cutting area(L*W)
m
500*250
600*300
800*400
Number of T-Slot
mm
1*14
1*14
1*14
Distance from table surface to spindle center
mm
450
490
580
Wheel size(dia *width*bore)
mm
200*20*φ31.75
300*30*φ75
350*40*φ127
Spindle speeds(50HZ)
r/m
2850
1440
1440
Table longitudinal (left and right) speed (stepless)
m/min
3~20
3~20
6~20
Table horizontal(before and after)the amount of feed
Continuous(variable speed)
mm/min
150
150
150
Intermittent(stepless)
mm
0-5
0-5
0-5
The handwheel rotates
mm
4
4
4
Hand wheel each grid
mm
0.02
0.02
0.02
Vertical(up and down)feed wheel feed
The handwheel rotates
mm
2
2
2
Handwheel each grid
mm
0.01
0.01
0.005
Spindle motor
kw
1.5
4
5.5
Cooling motor
w
40
40
90
Hydraulic motor
kw
1.5
1.5
2.2
Working pressure
Mpa
3
3
3
Oil tark capacity
L
80
80
100
Max. capacity
L/min
18
18
18
The machined surface of the base of parallelism
mm
300/0.004
300/0.004
300/0.004
Surface roughness
μm
Ra0.32
Ra0.32
Ra0.32
Net weight
T
1200
1400
2000
Cross
T
1300
1500
2200
Packing size(L*W*H)
mm
1800*1400*2000
2000*1800*2050
2300*1980*2170
