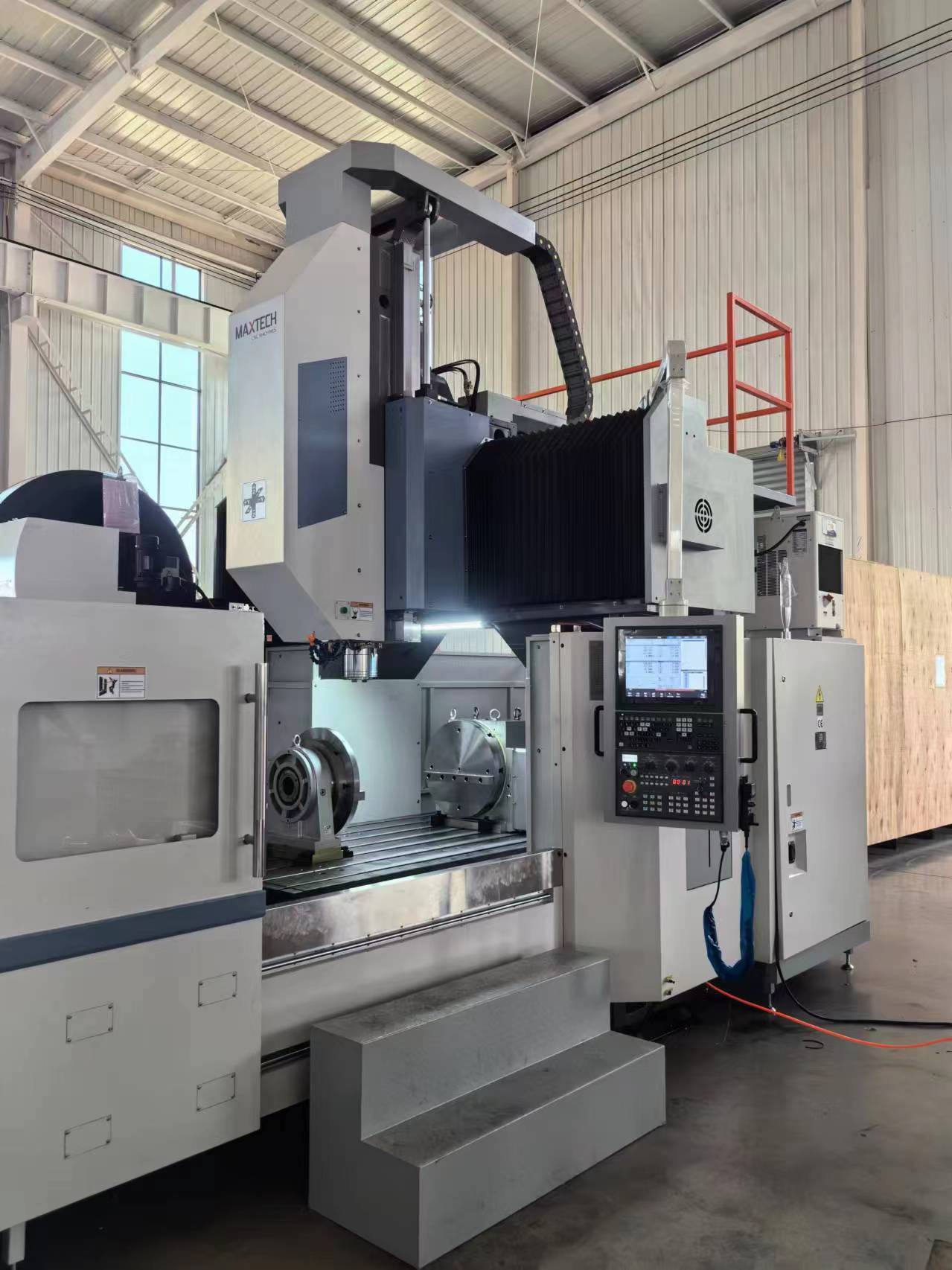

Hot Sale Horizontal Machining Centre GMC2015 Cnc Ileme Merkezi Taiwan Cnc Machining Center with 4th Axis

Share to:

Hot Sale Horizontal Machining Centre GMC2015 Cnc Ileme Merkezi Taiwan Cnc Machining Center with 4th Axis

Model:
GMC2015
Brand:
WMTCNC

Availability:

Quantity:



Inquire Add to Basket

Product Description

Main Features:

1. In line with design concept of driven at the center of gravity, the machine equipped with double balance counter weight. Meanwhile the center of ram falls on the center of axis, with equalized ram guideway allocation. The design eliminates bending of ram guideway when ram moves up and down. Consequently Z axis can perform with high stability and accuracy.

2. Equipped with oil chiller, cycle cooling source for spindle unit and motor cabine.
3. Equipped with heat exchanger, the electric cabinet can abstrcat heat efficiently during work.

4. Lubrication station is controlled by CNC system which can test and alarm automatically.

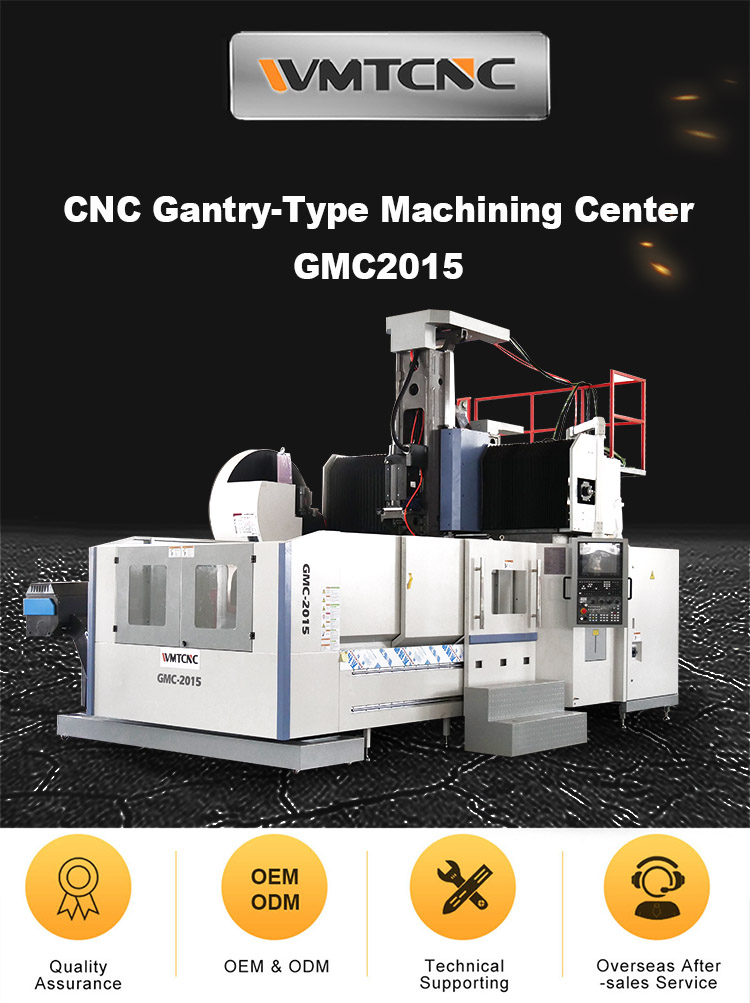

GMC2015

Specification			Unit	GMC2015
Workbench	Workbench size		mm	1200×2100
	Distance between two columns		mm	1500
	Max. load		Kg	3000
	T-slot size			22×7
Processing range	Max. table travel - X axis		mm	2000
	Max. travel of carriage - Y axis		mm	1500
	Max. spindle travel - Z-axis		mm	800
	Distance from spindle nose to table surface	Max.	mm	950
	Distance from spindle nose to table surface	Min.		150
Spindle	Taper Bore			BT50
	RPM range		r/min	40～6000
	Max. output torque		N·m	113
	Spindle motor power		kW	18.5
Feed	Cutting feed speed		mm/min	1～10000
	Rapid feed speed	X axis	m/min	15
		Y axis		15
		Z axis		15
Positioning accuracy	X axis	Standard:JB/T8771.4-1998	mm	0.025
	Y axis			0.02
	Z axis			0.015
Re-positioning accuracy	X axis	Standard:JB/T8771.4-1998	mm	0.014
	Y axis			0.012
	Z axis			0.01
Machine Weight			Kg	16000
Total electrical capacity			KVA	48
Machine dimensions			mm	6300x3050x4100
