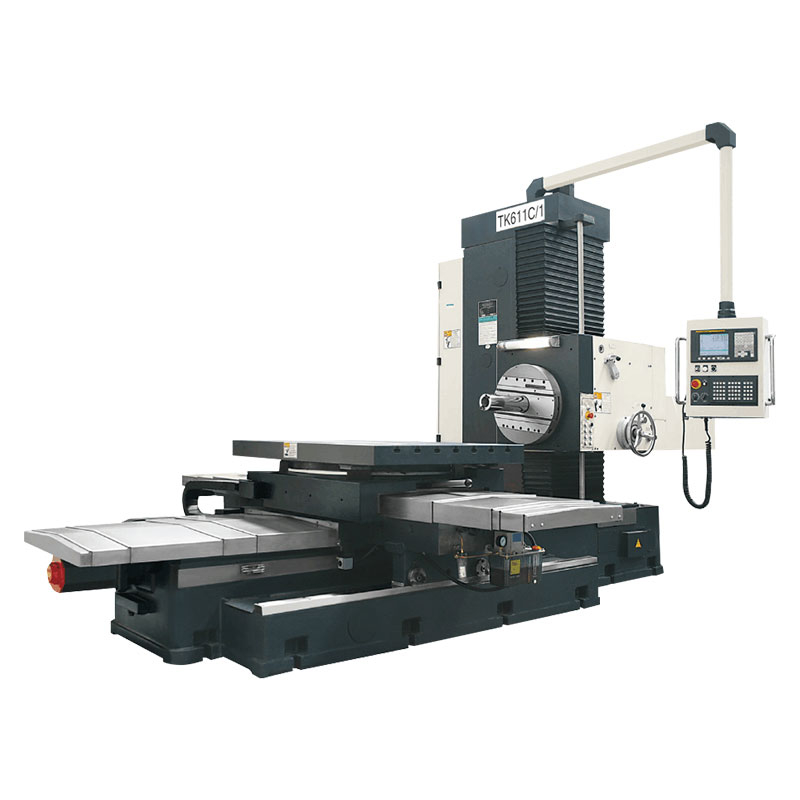

TK611C
WMT
| Quantity: | |
|---|---|
Product Description
| Specification | TK611C |
| Worktable size | 1320×1010mm |
| Max. loading of worktable | 5000Kg |
| Spindle diameter | 110mm |
| Spindle taper (7:24) | NO. 50 |
| Spindle speed | 12-1100mm |
| Spindle power | 15kw |
| Max. spindle torque | 1100Nm |
| Rotary table speed | 125r/min |
| X axis travel | 1200mm |
| Y axis travel | 1200mm |
| Z axis travel | 1300mm |
| W axis travel | 550mm |
| Horizontal rotary table slider stroke U | 125mm |
| Table rotation B | N/A |
| X/Y/Z axis feed speed | 20-1000mm/min |
| W axis feed speed | 20-1000mm/min |
| B axis feed speed | N/A |
| U axis feed speed | 0. 2-80mm/min |
| X/Y/Z axis rapid feed speed | 10m/min |
| W axis rapid feed speed | 5m/min |
| B axis rapid feed speed | N/A |
| U axis rapid feed speed | 80mm/min |
| Tool shank type | BT50 |
| Retention knob standard | BT50 |
| X/Y/Z/W axis positioning accuracy | 0.03mm |
| B axis positioning accuracy of any angle | N/A |
| Four point positioning of worktable | 12" |
| X/Y/Z/W axis re-positioning accuracy | 0.02mm |
| B axis re-positioning accuracy of any angle | N/A |
| Total power capacity | 50kVA |
| Machine dimensions | 5500×3050×2900mm |
| CNC system | FANUC-0i Mf Plus |
