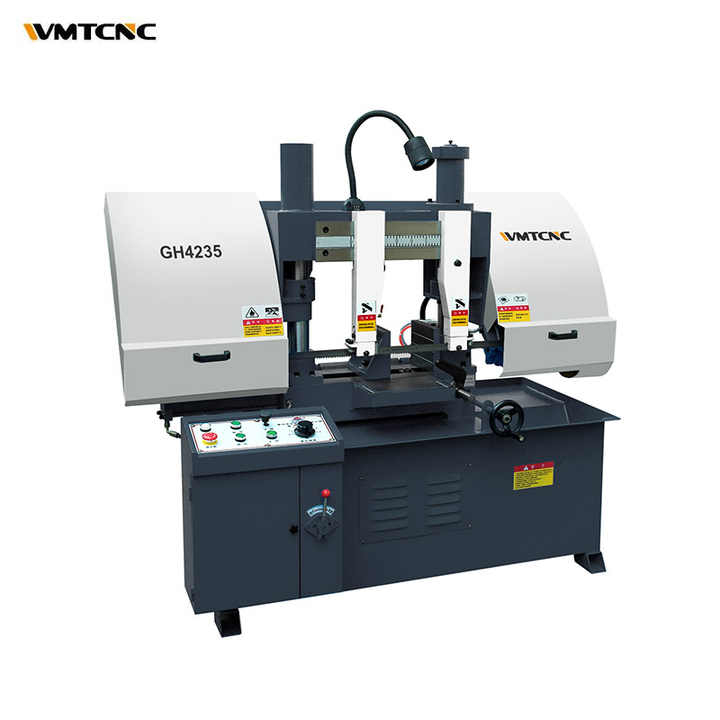

GH4235
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Double column structure, stable operation, stable sawing and high precision.
2. Hydraulical controlled sawing feed speed, stepless speed.
3. The new structure of the saw blade guide uses hard metal alloy blades to Extend the service life of the saw blade.
4. The upper pressing device and the electric feeding device can be customized.
5. The work table of the Z series sawing machine can be manually adjusted and rotated 45 degrees to realize the oblique cutting of materials.
| Specification | GH4228 | GH4230 | GH4235 |
| Cutting range | 280-280x280 mm | 300-300x300 | 350-350x350 |
| Blade linear speed | 27/45/69 m/min | 27/45/69 m/min | 27/45/69 m/min |
| Blade szie(LxWxT) | 3505x27x0.9 mm | 3505x27x0.9 mm | 4115x34x1.1 mm |
| Main motor power | 2.2 kw | 2.2 kw | 3 kw |
| Hydraulic motor power | 0.55 kw | 0.55 kw | 0.55 kw |
| Coolant power | 40 w | 40 w | 40 w |
| Workpiece clamp type | Hydraulic vise | Hydraulic vise | Hydraulic vise |
| Main drive structure | Worm gear | Worm gear | Worm gear |
| Workpiece feeding type | Scroll wheel | Scroll wheel | Scroll wheel |
| Overall size | 1780x1050x1500 mm | 1780x1050x1500 mm | 1980x1110x1600 mm |
| Packing size | 1950x1100x1550 mm | 1950x1100x1550 mm | 2100x1160x1650 mm |
