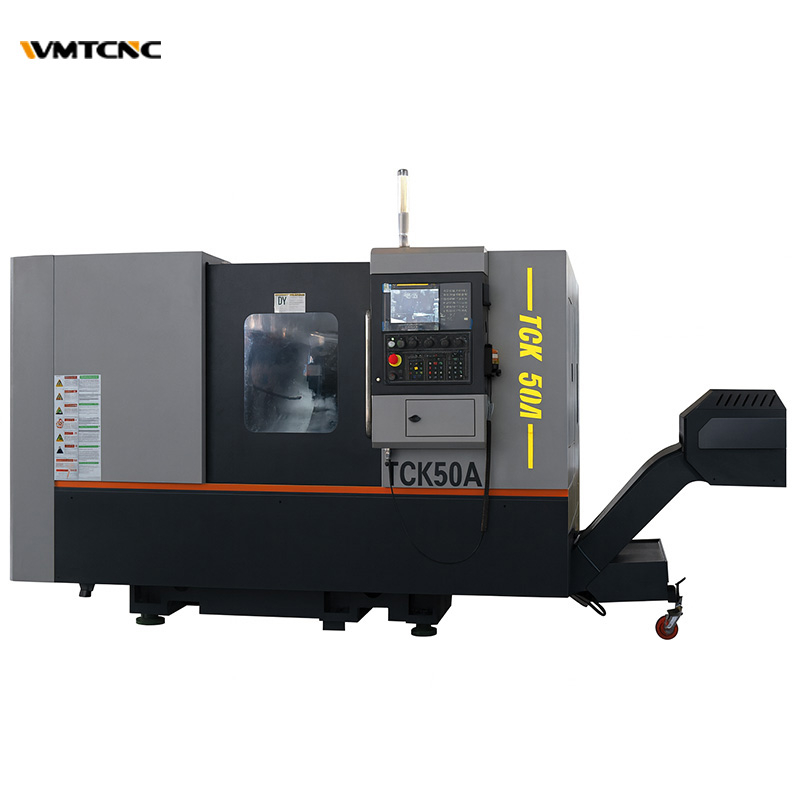

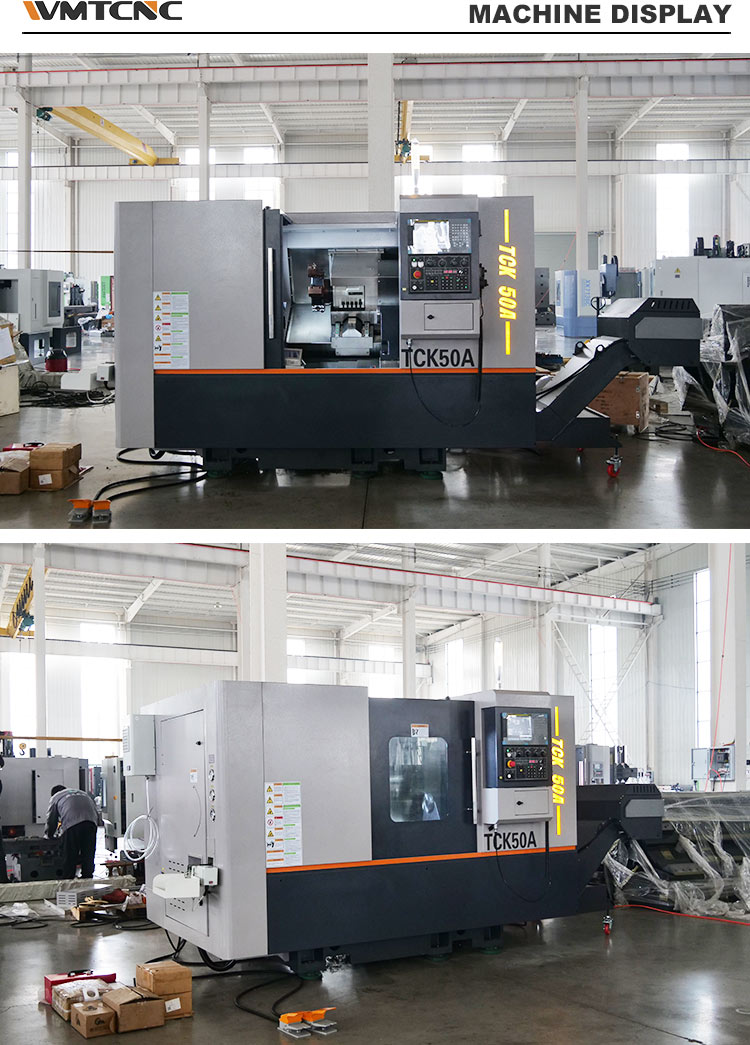

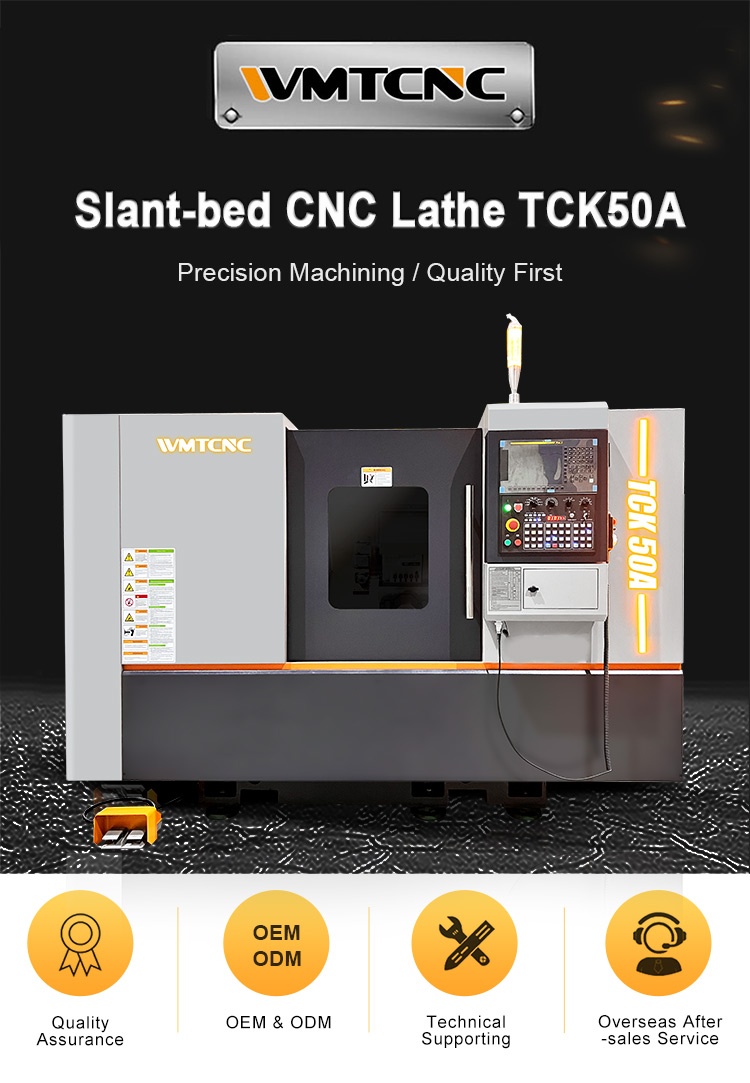

TCK50A
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. High precision slant bed line rail CNC lathe with Taiwan screw and linear guideway.
2. High precision cartridge type spindle ensure the rigidity and precision.
3. Taiwan high precision C3 grinding ball screw ensure positioning and more stable.

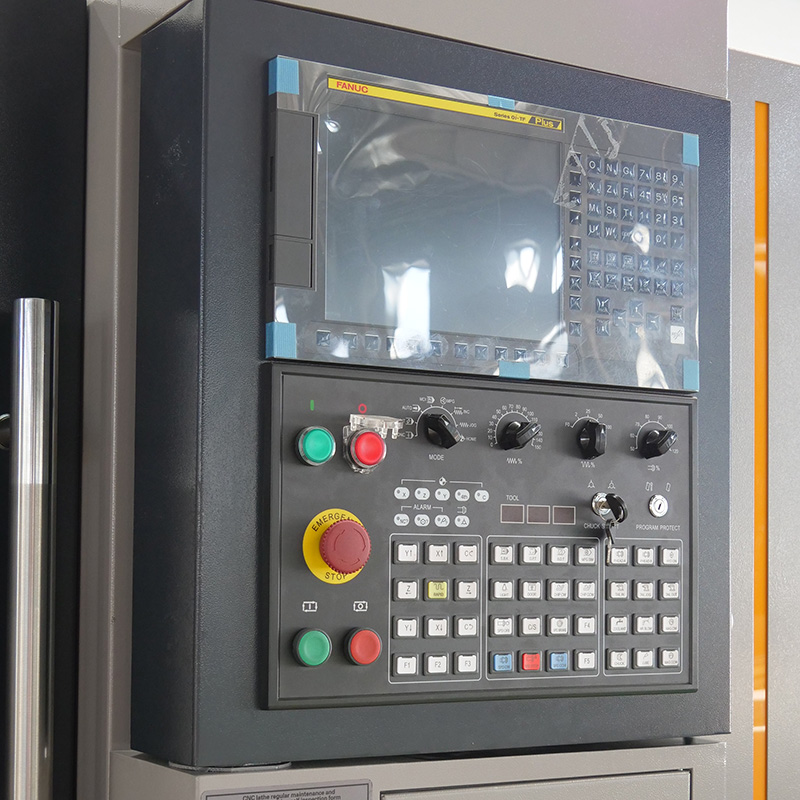

4. Siemens, Fanuc, Syntec, Fagor controller system options.
5. Monoblock cast iron of the whole machine ensure high rigidity.
| Specification | TCK50A-500 |
| Capacity | |
| Max. swing dia. over bed | φ560mm |
| Max. length of workpiece | 480mm |
| Max. turning dia. | Φ430mm (Disc parts) Φ310mm (Shaft parts) |
| Max. swing dia. over slide | φ310mm |
| Bed type and slant angle | Integrated bed/30° |
| Spindle | |
| Spindle speed range | 50～3000rpm |
| Spindle bore | φ65mm |
| Max. bar diameter | φ50mm |
| Spindle nose | A2-6 |
| Max. spindle output torque | 150Nm |
| Spindle motor | 11kw |

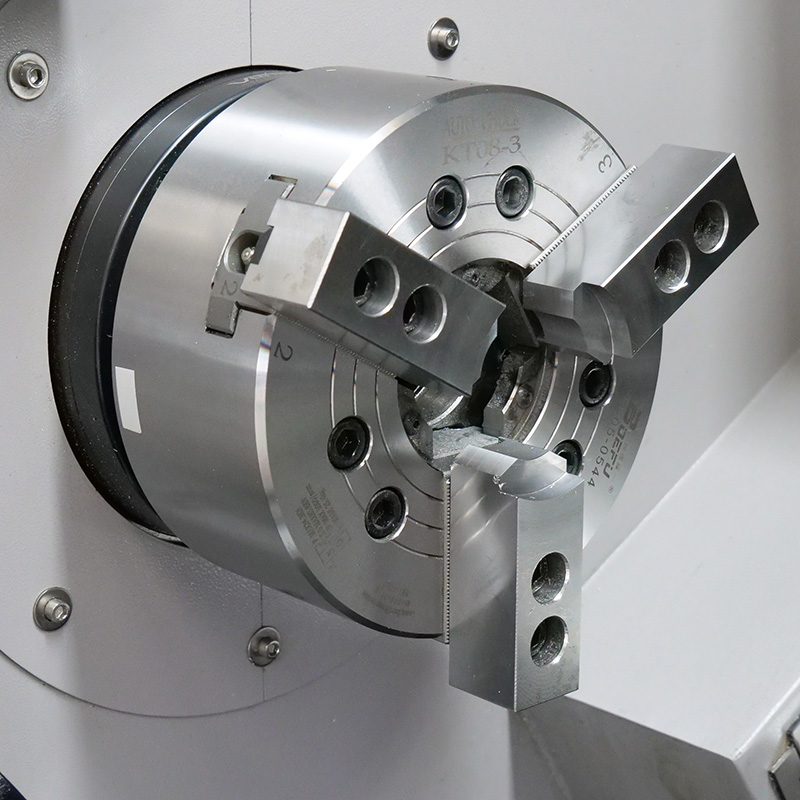

| Hydraulic chuck size | 8''/10" |
| Axis | |
| X axis travel | 220mm |
| Z axis travel | 560mm |
| X axis rapid traverse | 30m/min |
| Z axis rapid traverse | 30m/min |

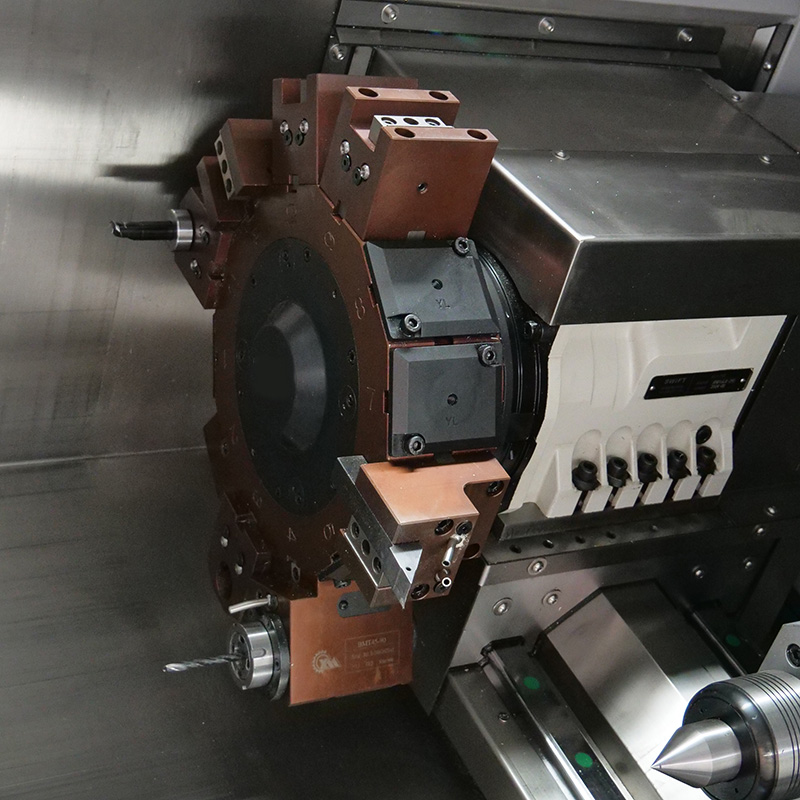

| Turret | |
| Type | Sevro Turret |
| No. of tool station | 8position,*12position |
| Tool shank size | 25×25mm |
| Boring tool shank size | φ32/φ40 |
| Tailstock | |
| Tailstock travel | 350mm |
| Taper of tailstock quill | MT5 |
| Max. Loading Capacity | |
| Disk parts | 200kg |
| Shaft parts | 500kg |
| Machine Dimensions | |
| Overal dimension（L x W x H） | 2775×1842×1866mm |
| Machine weight | 3650kg |
