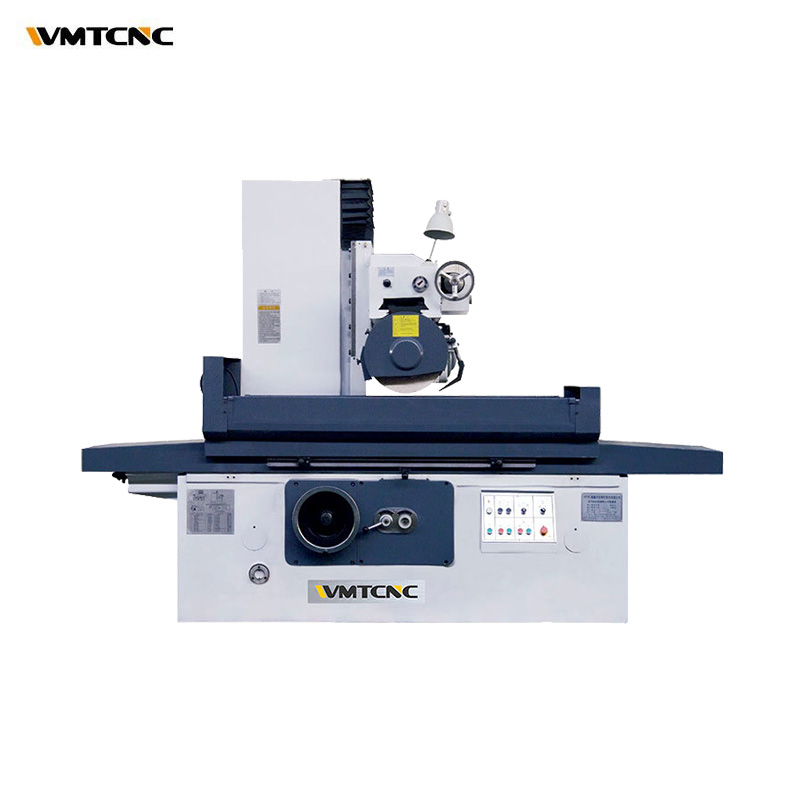

1. We adopt special type plain bearing at the spindle nose.
(the external is conical, the internal is cylindrical) this kind of structure is long serves life.
2. We adopt a motor built-in type motor structure.
3. This structure is compact and excellent rigidity.
4. Worktable longitudinal movement and grinding head cross movement is supported by hydraulic system.
5. They are stepless and variable speed.
|Size of worktable (LxWxH)||1250/1600/2000x630x600 mm|
|Max. Longitudinal movement of worktable||1350 mm||1700 mm||2100 mm|
|Max. Distance from the spindle centerline to the worktable surface||800 mm||800 mm||800 mm|
|Max. Cross movement grinding head||680 mm||680 mm||680 mm|
|Vertical movement of the |
grinding head by handwheel
|Per graduation||0.01 mm||0.01 mm||0.01 mm|
|Per revolution||1 mm||1 mm||1 mm|
|Rapid lifting motor||Power||0.37 Kw||0.37 Kw||0.37 Kw|
|Speed||1440 r/min||1440 r/min||1440 r/min|
|Abrasive wheel dim (Dxdxw)||∅ 400x40x127 mm||∅ 400x40x127 mm||∅ 400x50x203 mm|
|Speed of ginding wheel||1440 r/min||1440 r/min||1440 r/min|
|Total power of motor||12 Kw||13.5 Kw||15.5 Kw|
|Power of spindle motor||7.5 Kw||7.5 Kw||9 Kw|
|Power of oil pump motor||4 Kw||5.5 Kw||5.5 Kw|
|Parallelism of Work piece Surface to Base level||300: 0.008 mm||300: 0.008 mm||300: 0.008 mm|
|Surface roughness||Ra:0.63 μm||Ra:0.63 μm||Ra:0.63 μm|
|N/G weight||5800/6500 Kg||6500/7500 Kg||7800/8500 Kg|
|Package (LxWxH)||3800x1950x2480 mm||4800x1850x2350 mm||5300x1850x2350 mm|
