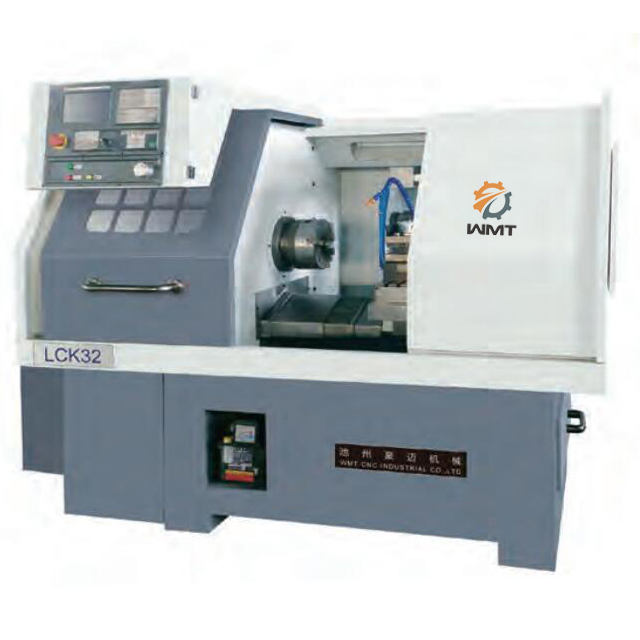

Product Description
Features:
High precision:2-axis linear way, high-precision linear guide rdeuce wear and tear
Screw in the center of guide way enhances the stability of the machine tools
Tringular shieid has grdatly enhanced the protection and chip cleaning of machine locls
Tool post are used to inprove the processing efficlency, accuracy and stabilty tringular
Encloser can be fixed with GSK, KND or Simens controlling system
| Specification | LCK320 | |
| Rail width | 260mm | |
| Spindle nose | A2-5 | A2-6 |
| Spindle bore | 56mm | 62mm |
| Chuck | 6” | 6”or 8” |
| Range of spindle speed | 100-4000rpm | |
| X a-xis travel | 350mm | |
| Z a-xis travel | 420mm | |
| X/Z Rapid speed | 16/18m/min | |
| Station of tool carrier | 4 or 6 | |
| Max.section of tool | 20x20mm | |
| Main motor power | 3.7kW | 4kW or 5.5kW |
| Coolant pump power | 180W | 250W |
| Overall dimensions L x W x H | 2000x1400x1500mm | |
| Parking size L x W x H | 2200x1650x1800mm | |
| Net weight | 1400KG | 1750KG |
| Groos weight | 1650KG | 2050KG |
