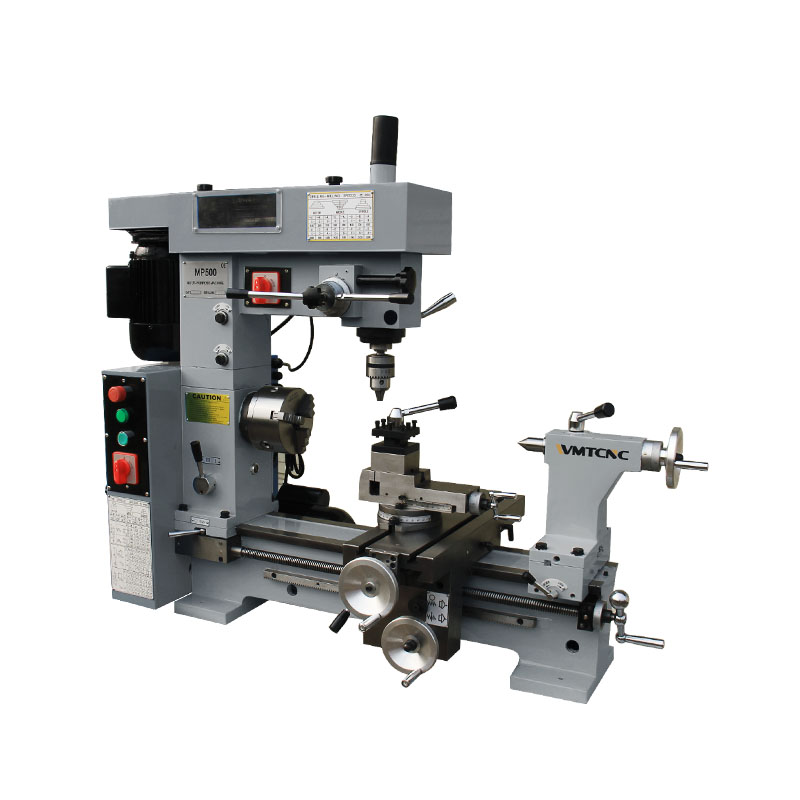

MP500
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Turning, milling, drilling and threading.
2. Metric or imperial thread cutting.
3. Suitable for processing metal, wood and other materials.
4. Excellent advantage of various functions, small occupation and economic.
| Specification | MP500/800 |
| Max. swing over bed | 420mm |
| Max. distance between centers | 500/800mm |
| Max. longitudinal travel | 400mm/740mm |
| Max. cross travel | 200mm |
| Spindle taper | MT4 |
| Spindle bore | 28mm |
| Step of spindle speed | 7 steps |
| Range of spindle speed | 160-1360rpm |
| Barrel travel | 70mm |
| Barrel taper | MT3 |
| Metric thread range | 0.2-6mm |
| Inch thread range | 4-120T.P.I |
| Longitudinal range of automatic feeding | 0.05-0.35mm/0.002-0.014'' |
| Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014'' |
| Max. drilling capacity | 22mm |
| Worktable size(L×W) | 475×160mm |
| Max. end mill | 28mm |
| Max. face mill | 80mm |
| Distance between spindle center and column | 285mm |
| Distance between spindle and worktable | 306mm |
| Headstock travel of up and down | 110mm |
| Spindle taper | MT3 |
| Step of spindle speed | 16 steps |
| Range of spindle speed | 120-3000rpm |
| Swivel degree of headstock | ±360° |
| Motor power | 0.75kw |
| Packing size | 1130/1430×580×1100mm |
| N.w/G.w | 245/280kg 275/325kg |
