CK6180x1500
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. High precision CNC flat bed lathe with hard rail.
2. The bed ways are induction hardened, with hardness around HRC50
3. Spindle with high precision bearings ensure the rigidity and precision.
4. Good quality grinding grade ball screw ensure positioning accuracy is more stable.
5. Monoblock cast iron base ensure high rigidity of the whole machine.
| Specification | CK6180 |

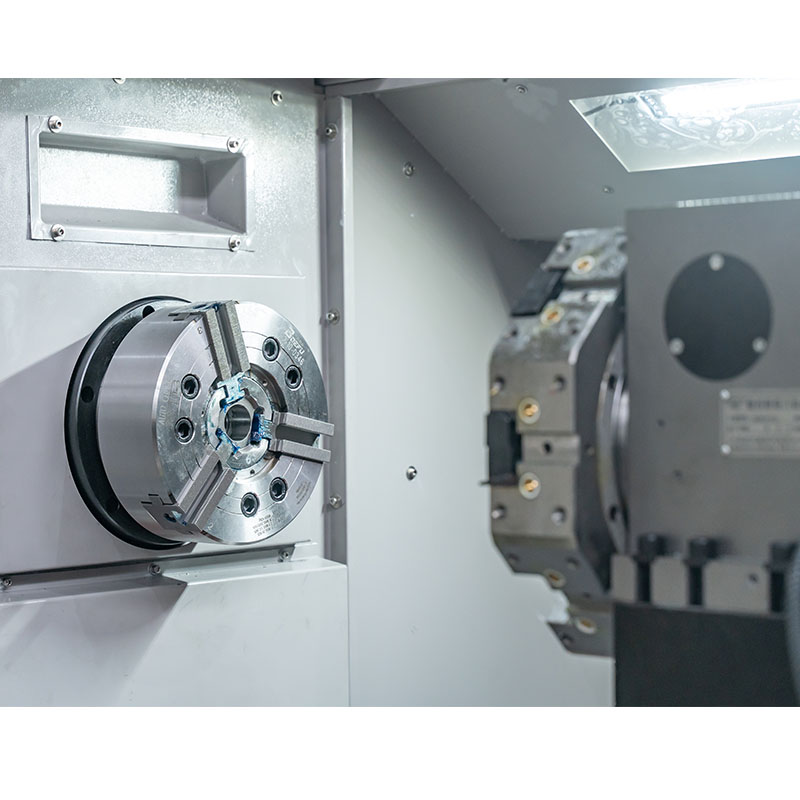

| Chuck size | 12" |
| Max. swing dia. over bed | 800mm |
| Max. swing dia. over slide | 400mm |
| Distance between centers | 1000/1500/2000/3000mm |
| Spindle speed range | 45-180/180-750/600-1600rpm |
| Spindle bore dia. | Ø105mm |
| Max. dia. of through-hole | Ø90mm |
| Spindle taper | A2-8*(105mm for C-11) |
| X axis travel | 310mm |
| Y axis travel | 310mm |
| Z axis travel | 310mm |

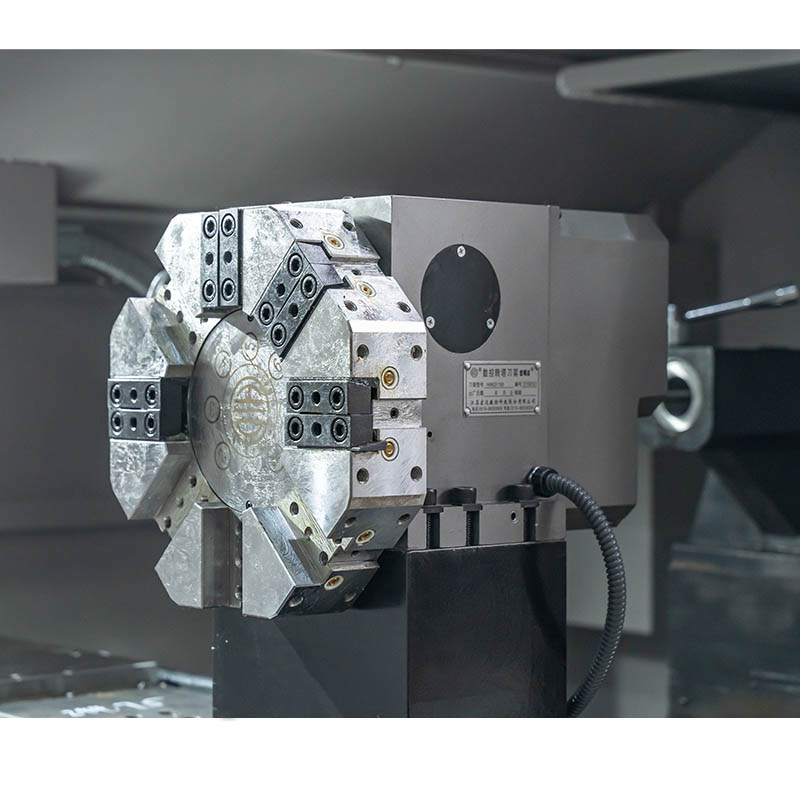

| Turret type | Electric type |
| Tool station number | 4(20x20mm, 26x16mm) |
| Tailstock dia. | Ø75mm |
| Tailstock travel | 150mm |
| Motor power | 11kw |
| Coolant pump power | 250w |
| Machine dimensions (L×W×H) | 2800×3500×3900mm |
| Packing size (L×W×H) | 2900×3800×4300mm |
| Weight | 2800/3500kg |
