M1308 Universal Cylindrical Grinding Machine

  • M1308
  • WMT
Availability:
Quantity:

Product Description

Features:

M1308 Universal cylindrical grinder is simple, fast processing speed, high precision, and low price ; and there are two ways of transmission : hydraulic or manual; for precision machining of small pieces of the machinery industry.

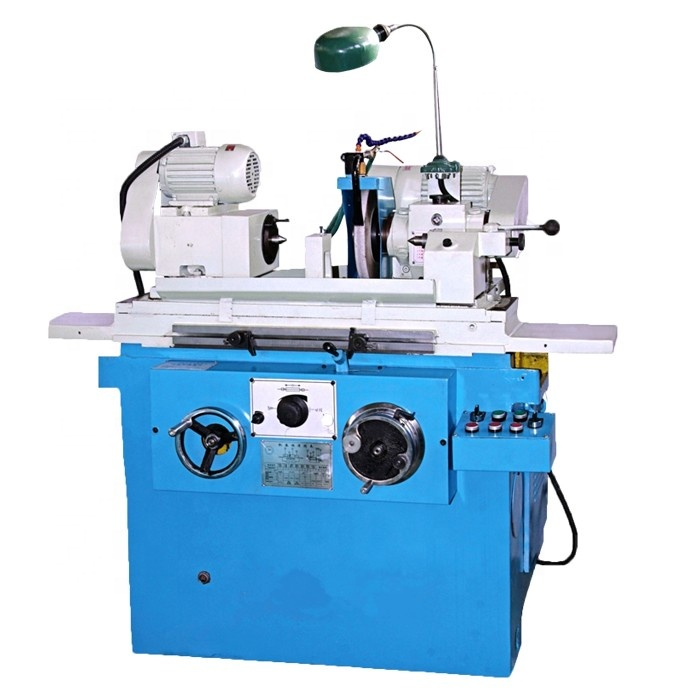

M1308 M1408 universal-cylindrical-grinding-machine

Specification unit M1308×300 M1408×300
Grinding dia.(O.D/I.D) mm Φ2~Φ80 Φ2~Φ80/Φ10~Φ60
Grinding length.(O.D/I.D) mm 300 300/125
Center height mm 115 115
Worktable speed m/min 0.1~4 0.1~4
Max.travel of table mm 340 340
Max.workpiece weight kg 10 10
Swivel range of worktable . 3~+7° 3~+7°
Wheel peripheral velocity m/sec 35 35
Externalwheef size mm MaxΦ250×25×Φ75 MinΦ180×Φ75 MaxΦ250×25×Φ75 MinΦ180×Φ75
Internal wheel spindie totating-speed r/min
16000
Workhead and tailstock center morse NO.3 NO.3
Machine motor power kw 2.34 2.34
Overall dimensions(L×W×H) mm 1360×1240×1000 1360×1240×1000
Machine weight kg 1500 1500
