Product Description
Features:

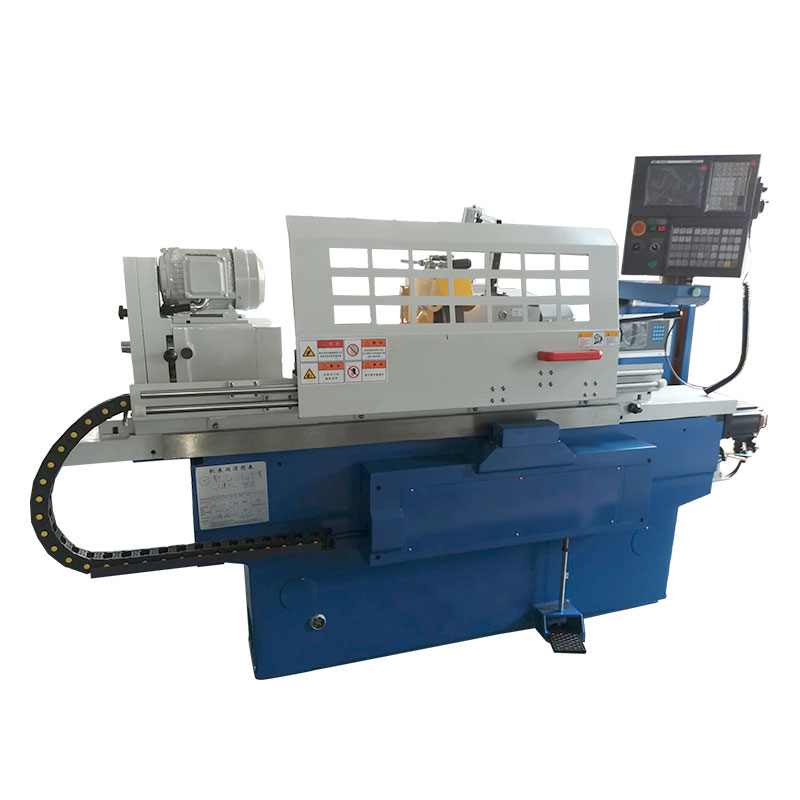

The CNC cylindrical grinder is suitable for batch production of cylindrical parts grinding with a high performance-to-price ratio.
| Description | unit | M1320H×500 | M1320H×800 |
| External grinding diameters | mm | Φ8 ~200 | Φ8 ~200 |
| Center height | mm | 135 | 135 |
| Max.travel of table | mm | 650 | 950 |
| Hydraulic traverse sdeeds | m/min | 0.1~4 | 0.1~4 |
| Max.workpiece weight | kg | 50 | 50 |
| Grinding length External | mm | 500 | 800 |
| Swivel range of worktable | . | ﹣5~+9° | ﹣3~+7° |
| Max peripheral speed of grinding wheel | m/s | 38 | 38 |
| Externalwheef size | mm | MaxΦ400×50×Φ203 | MinΦ280×50×Φ203 |
| Workhead and tailstock center | NO.4 | NO.4 | |
| Machine motor power | kw | 5.625 | 5.625 |
| Overall dimensions(L×W×H) | mm | 2500×1600×1500 | 3000×1600×1500 |
| Machine weight | kg | 2500 | 3000 |
