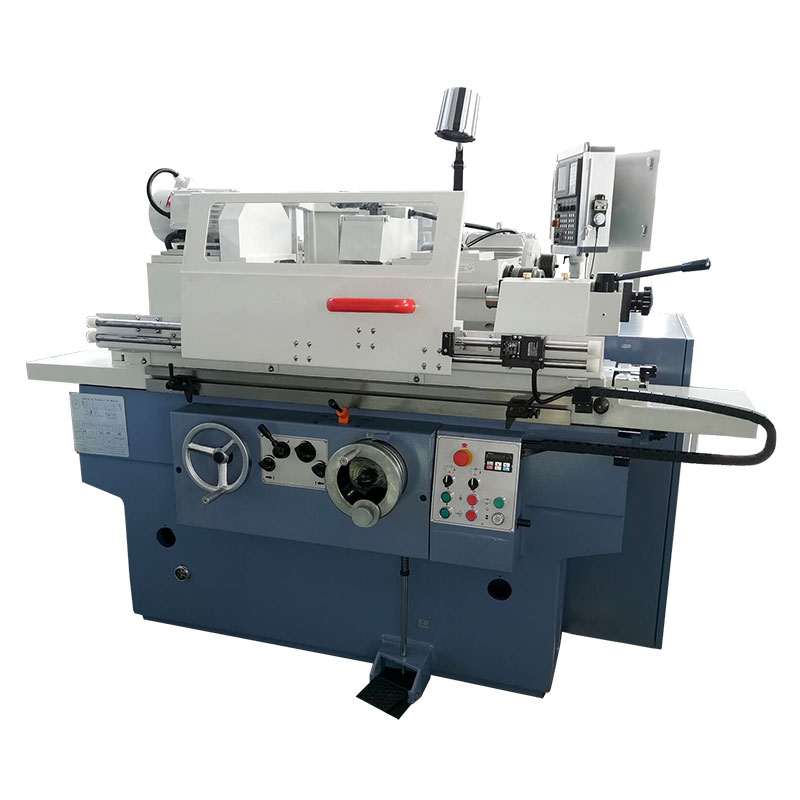

M1420H Unviersal Cylindrical Grinding Machine

  • M1420H
  • WMT

Product Description

M1420H F

Specification M1420H/FX500
External grinding diameters φ8200mm
Internal grinding diameters φ13100mm
Center height 135mm
Headstock spindle rotation speed 50HZ:25380rpm (stepless)
Max. worktable traverse 650mm
Hydraulic travel speed 0.14m/min
Max.workpiece weight 50kgs
Grinding length External/Internal 500/125mm
Swivel range of worktable   -5°+9°
Max.wheel peripheral speed 38m/s
External wheel size Max.φ400x50xφ203mm   Minφ280x50xφ203mm
Internal wheel spindle rotating-speed 20000r/min
Headstock and tailstock center MT4
Total motor power 5.625kw
Machine overall dimensionLxWxH 2500x1600x1500mm
Machine weight 2500kgs
Standard accessories:
Coolant tank
Grinding wheel dresser
Wheel hub
Wheel balancing mandrel
Internal grinding tool
3-jaw chuck
Open type steady rest
Driving dog
Carbide-tipped center
Leveling wedge
Quill shaft for internal grinding
Chuck base
