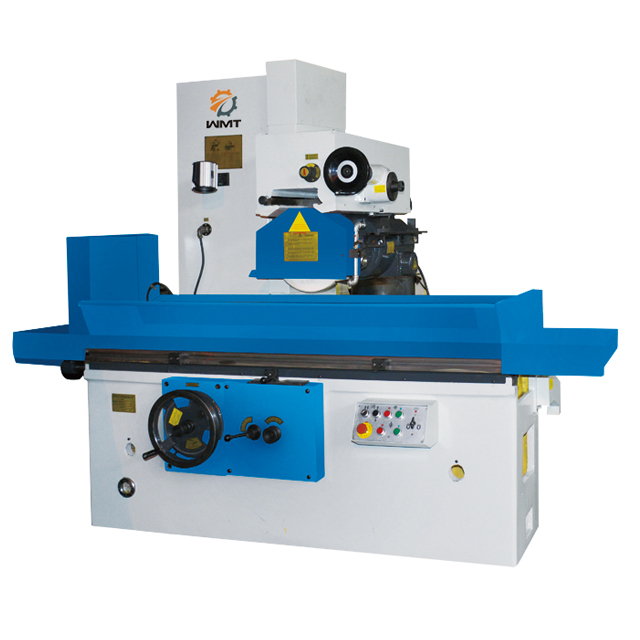

M7140 16" X 39" WMT CNC Chia SG Hydrulic Surface Grinder

  • M7140A
  • WMT
Quantity:

Product Description

M7140

Specification M7140 M7150
Max workpiece to be ground 1000x400mm 1250x500mm
Maximum table vertical movment 1100mm 1350mm
Distance from table to spindle center 570mm 800mm
The maximun lateral displacement of the grinding head 450mm 580mm
Vertical head feed handwheel graduation value/ each grid 0.01mm 0.01mm
Vertical head feed handwheel graduation value/each rotates 1mm 1mm
Fast lifting motor Power 0.37KW 0.37KW
Speed 1440rpm/min 1450rpm/min
Wheel Size(dia×width×bore) φ350x40x127mm φ400x50x203mm
Spindle speed 1440rpm/min 1440rpm/min
The total power of electeic motor 11KW 12KW
Spindle motor 7.5KW 7.5KW
The oil pump motor 3KW 5.5KW
The mechanical surface of the base of parallelis 300/0.004mm 300/0.004mm
Surface roughness Ra:0.63μm Ra:0.63μm
Gross/Net weight 4000/4600kgs 5300/6000kgs
Packing size 2800x1750x2350mm 3800x2700x2800mm

Standard accessories:

Tool box

Balancing stand

Flange wrench

Foundation bolts

Open-end wrench

Inner hexagon spanner

Wheel dresser

Balancing shaft

Setting plate

Wheel dresser holder

Pemanent magentic chuck


Optioanl accessories:

2 axis DRO

CE protection

Machine vice

Vacumn pump
