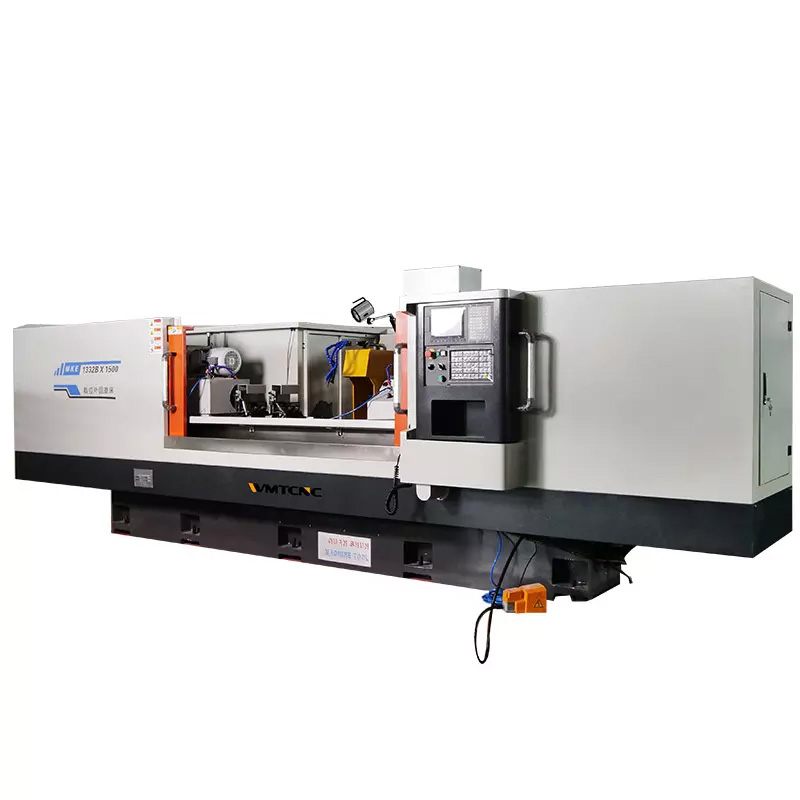

MAKQ1320Hx500 Heavy Duty Cnc Cylindrical Grinding Machine for Metal Processing

  • MAKQ1320Hx500
  • WMTCNC
Availability:
Quantity:

Product Description

Features:

The CNC cylindrical grinder is suitable for batch production of cylindrical parts grinding with a high performance-to-price ratio.

MAKQ1320Hx500

Specification

MAKQ1320Hx500
Distance between centers
mm
500
Center height
mm
135
Maximum workpiece rotation diameter
mm
200
Grinding range of workpiece diameter
mm
Φ8~ φ200
Max. Workpiece weight
kg
13
Angle of worktable


Angle of worktable
Anticlockwise
°
7
Clockwise
°
3
Max. travel of worktable
mm
650
Table grinding speed
m/min
0 ~3
Worktable positioning accuracy
mm
0.01
Worktable repeat positioning accuracy
mm
0.005
Worktable servo motor
N.m
8.4
Wheelstock stroke
mm
200
Wheelstock positioning accuracy
mm
0.005
Wheelstock repeat positioning accuracy
mm
0.002
Wheelstock servo motor
Nm
8.4
Wheel size(O.Dx W x I.D.)
mm
500x50x203
Peripheral speed of wheel
m/s
38
Headstock/tailstock center
Morse
NO.4
Lubrication system
Automatic lubrication

In the machine
Automatic lubrication capacity
L
50
Cooling system
Cooling pump flow
L/min
22
Cooling tank capacity
L
130
Wheelstock motor
kw
5.5
Accuracy
mm
≤0.0015
Cylindricity
mm
≤0.005
Roughness
μm
Ra≤0.32
Machine size (L×W× H)
mm
2500*1800*1650
Net weight of machine
kg
2800
