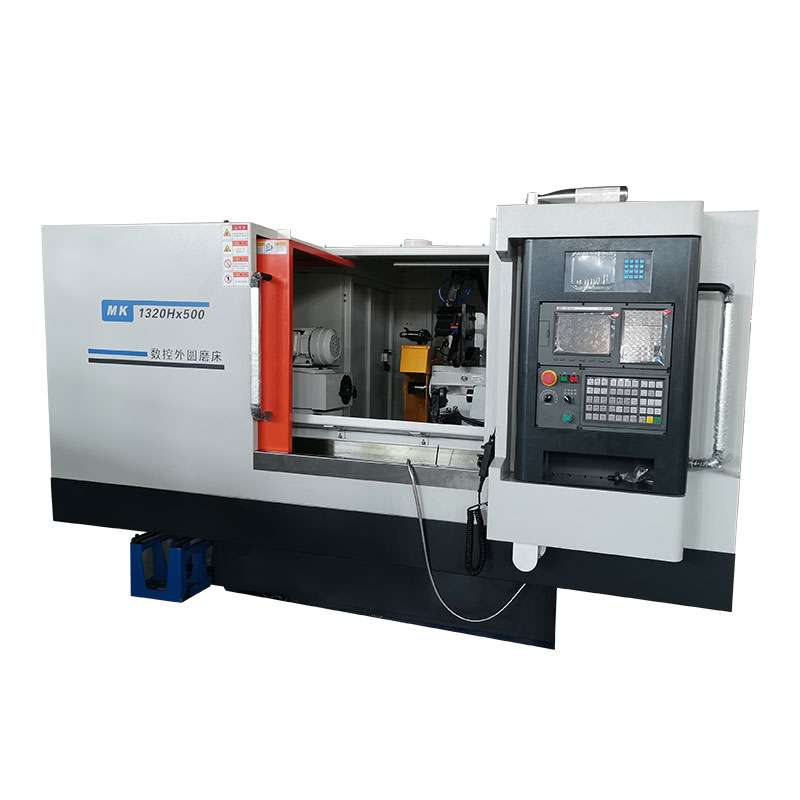

MK1320HX500 CNC Cylindrical Grinding Machine For Sale

  • MK1320HX500
  • WMT

Product Description


The CNC cylindrical grinder is suitable for batch production of cylindrical parts grinding with a high performance-to-price ratio.

MK1320H-500 (1)

Specification unit MKE1320H×500 MKE1320H×800
Dia to be ground mm Φ8 ~200 Φ8 ~200
Max. length to be ground mm 500 800
Center height mm 135 135
Distance between centers mm 550 850
Headstock center / MT4 MT4
Tailkstock center / MT4 MT4
Max. workpiece weight to be ground kg 30 30
Wheel size mm Φ400X50XΦ203 Φ400X50XΦ203
Wheel peripheral speed m/s 35 35
Wheel spindle rotation speed r/min 1670 1670
Min. pulse amount in X-axis mm 0.001 0.001
Min. pulse amount in Z-axis mm 0.001 0.001
Motor power kw 10.825 10.825
Longitudinal servo motor kw I.6(6Nm) I.6(6Nm)
Traverse servo motor kw I.6(6Nm) I.6(6Nm)

Dedicated to the policy of precision and promotion from stability, the group spares no effort in innovation, improvement, integrity management and insured quality.
