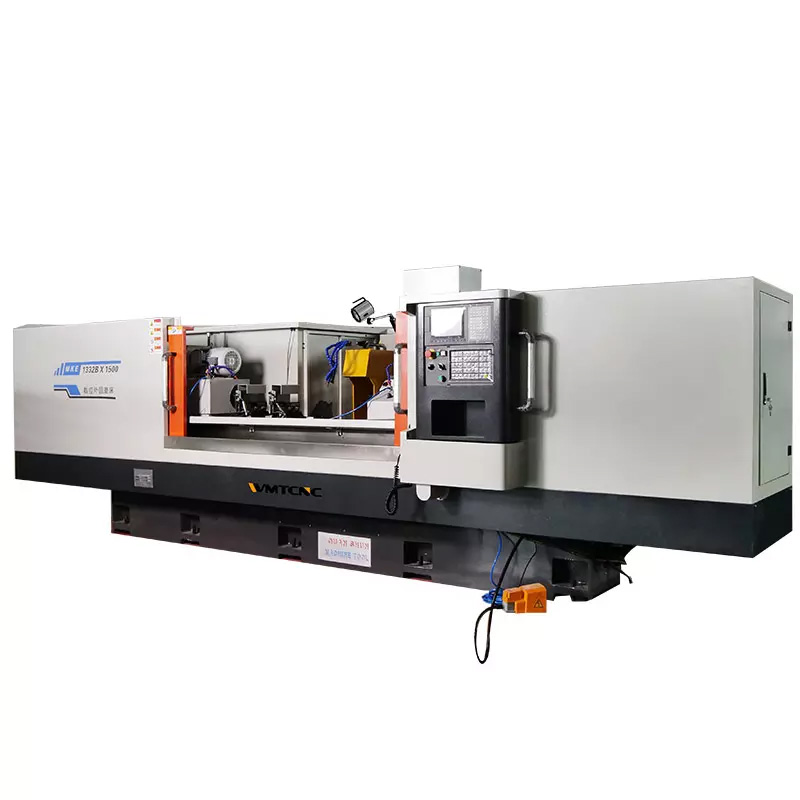

MKE1332BX1500
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
The CNC cylindrical grinder is suitable for batch production of cylindrical parts grinding with a high performance-to-price ratio.
| Specification | unit | MKE1332Bx500 | MKE1332BX1000 | MKE1332BX1500 |
| External grinding diameters | mm | φ8～320 | φ8～320 | φ8～320 |
| Center height | mm | 180 | 180 | 180 |
| Distance between center | mm | 500 | 1000 | 1500 |
| Max. workpiece weight | kg | 150 | 150 | 150 |
| External grinding length | mm | 500 | 1000 | 1500 |
| Swivel range of worktable | ° | -3～+7° | -3～+7° | -3～+6° |
| Max. wheel peripheral speed | m/s | 38(45m/s) | 38(45m/s) | 38(45m/s) |
| External wheel size | mm | φ600x75xφ305 | ||
| Wheel spindle rotation speed | r/min | 1210（1433） | 1210（1433） | 1210（1433） |
| Headstock center | morse | NO.5 | NO.5 | NO.5 |
| Tailstock center | morse | NO.4 | NO.4 | NO.4 |
| Headstock spindle rotation speed | r/min | 26、52、90、130、180、260 | 26、52、90、130、180、260 | |
| Total motor power | kw | 21.475 | 21.475 | 21.475 |
| Min. pulse amount in X-axis | mm | 0.001 | 0.001 | 0.001 |
| Min. pulse amount in Z-axis | mm | 0.001 | 0.001 | 0.001 |
| Longitudinal servo motor (X axis) | Nm | 15 | 15 | 15 |
| Traverse servo motor (Z axis) | Nm | 11 | 11 | 11 |
| Machine overall dimension (LxWxH) | mm | 3000x2100x2000 | 3500x2100x2000 | 5300x2000x2000 |
| Machine weight | kg | 3500 | 4000 | 5000 |
| Working Accuracy | ||||
| Roundness | μm | 1.5 | ||
| Uniformity of dia.in longitudinal section | μm | 5 | ||
| Surface roughness | μm | Ra0.32 | ||
