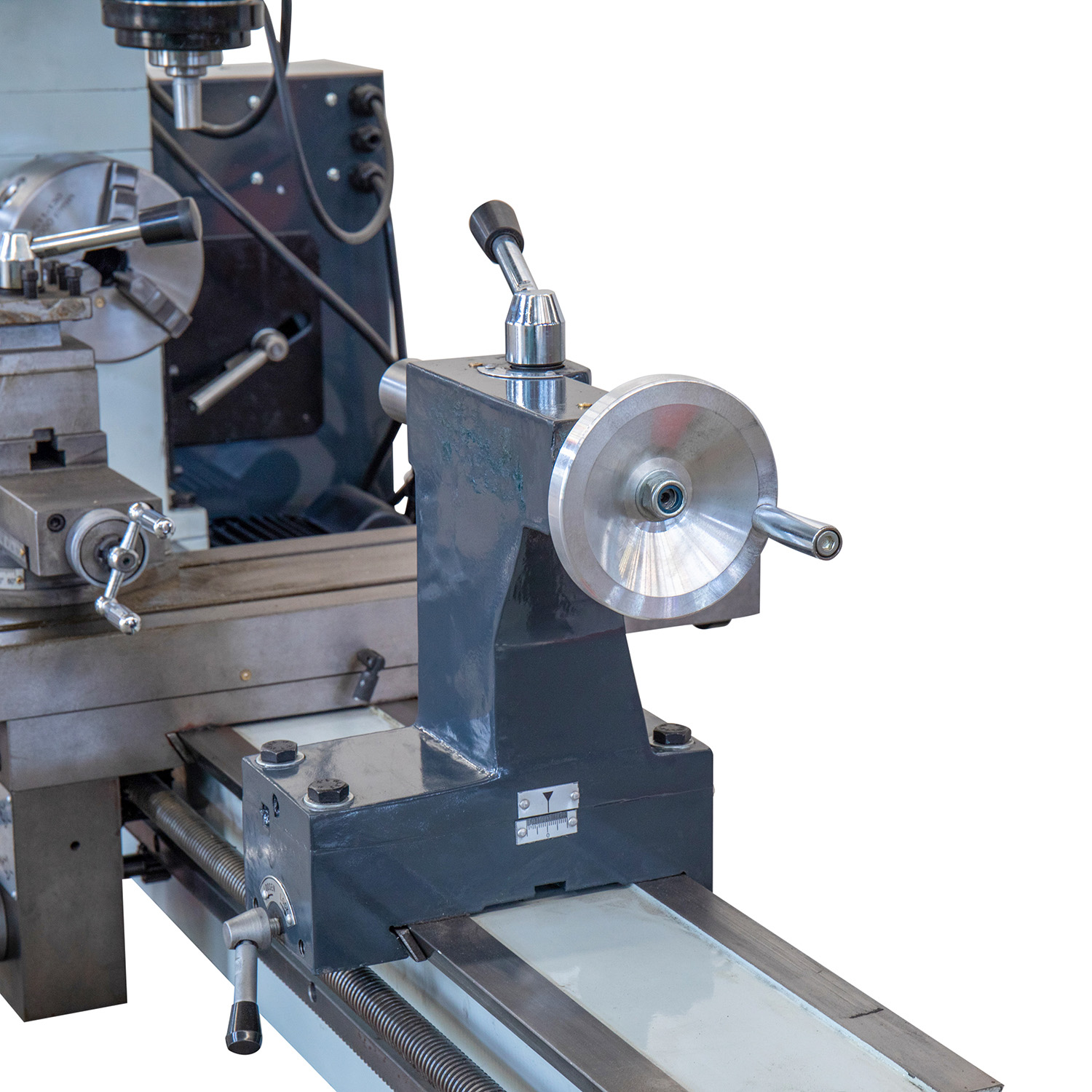

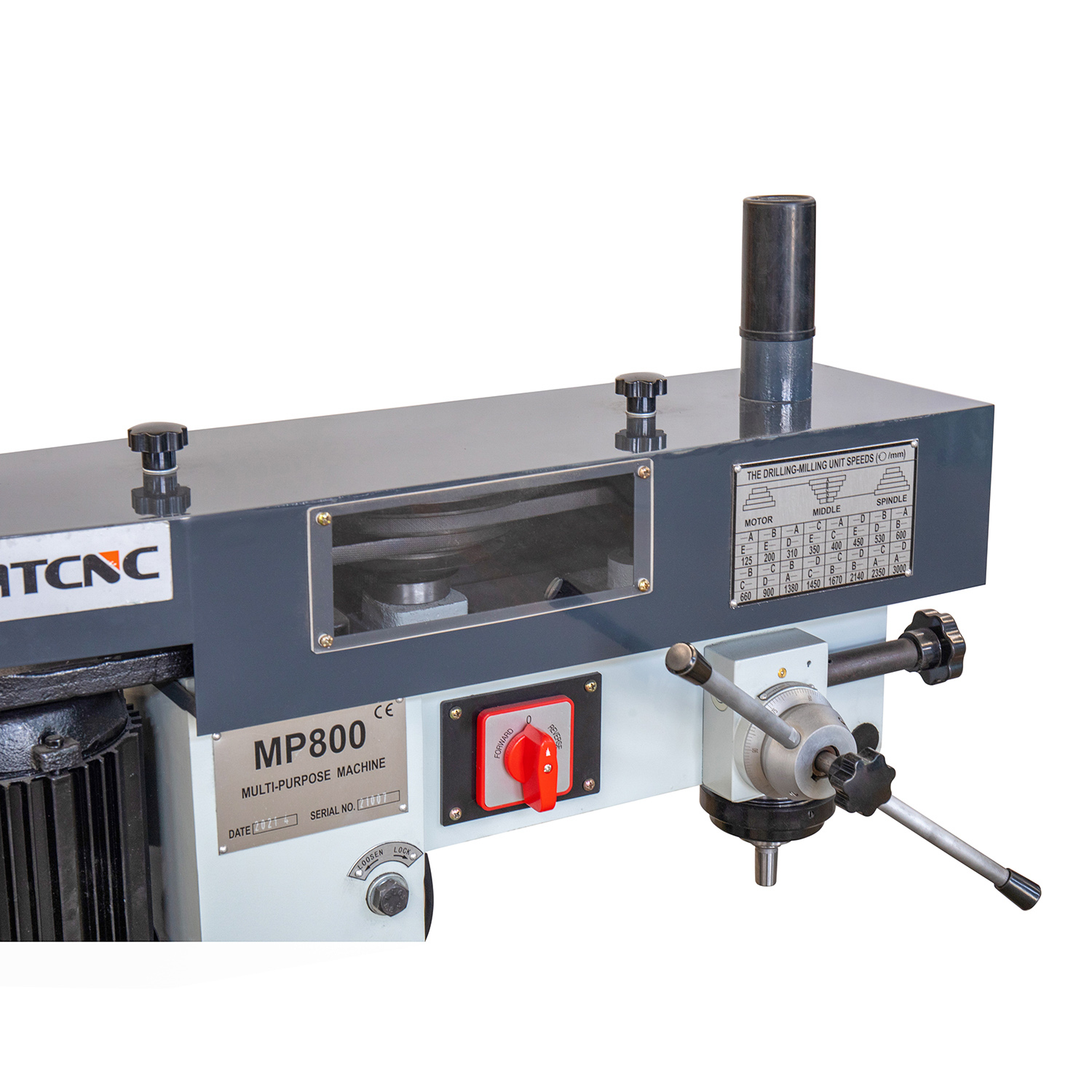

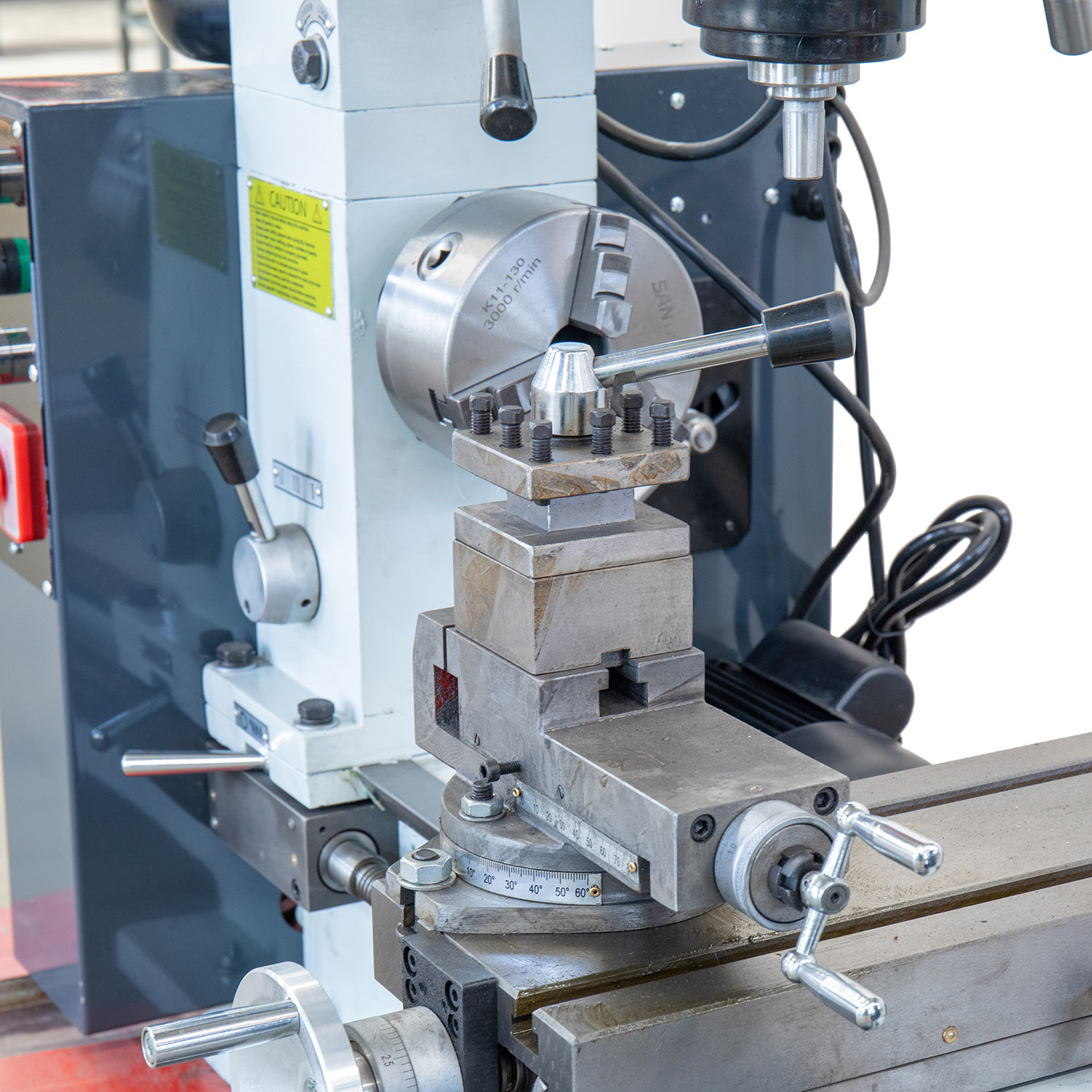

MP800 17" x 31" Gear Head Lathe Mill Drill Combo

  • MP800
  • WMT
Availability:
Quantity:

Product Description

MP800

Specifiction MP800
Swing over bed 420mm
Distance between centers 500mm/ 800mm
Max. longitudinal travel 440mm/740mm
Max. cross travel 200mm
Spindle taper MT4
Spindle bore φ28mm
Step of spindle speed 7 steps
Range of spindle speed 160-1360rpm
Barrel travel 70mm
Barrel taper MT3
Metric thread range 0.2-6mm
Inch thread range 4-120T.P.I
Longitudinal range of automatic feeding 0.05-0.35mm/ 0.002-0.014"
Cross range of automatic feeding 0.05-0.35mm/0.002-0.014"
Max. drilling capacity φ22mm
Worktable size (L×W) 475×160mm
Max. end mill φ28mm
Max. face mill φ80mm
Distance between spindle center and column 285mm
Distance between spindle and worktable 306mm
Headstock travel of up and down 110mm
Spindle taper MT3
Step of spindle speed 16steps
Range of spindle speed 120-3000rpm
Swivel degree of headstock ±360°
Motor power 0.75kw
Packing size 1130/1430×580×1100mm
N.W/G.W 245/280kgs  275/325kgs

Features:

1) Turning, milling, drilling and threading.

2) Metric or imperial thread cutting.

3) Suitable for processing metal, wood and other materials.

4) Excellent advantage of various functions, small occupation and economic.


Standard Accessories:

1) 3-jaw chuck 130mm

2) Draw bar

3) Change gears

4) Wedge

5) Wrench
