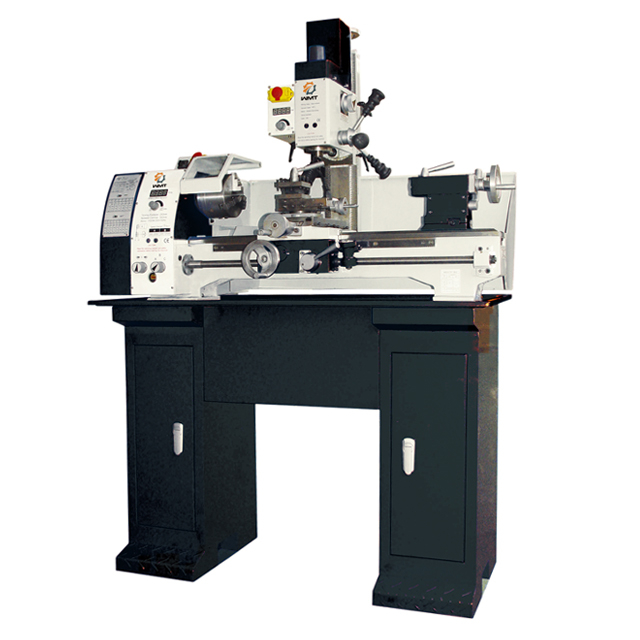

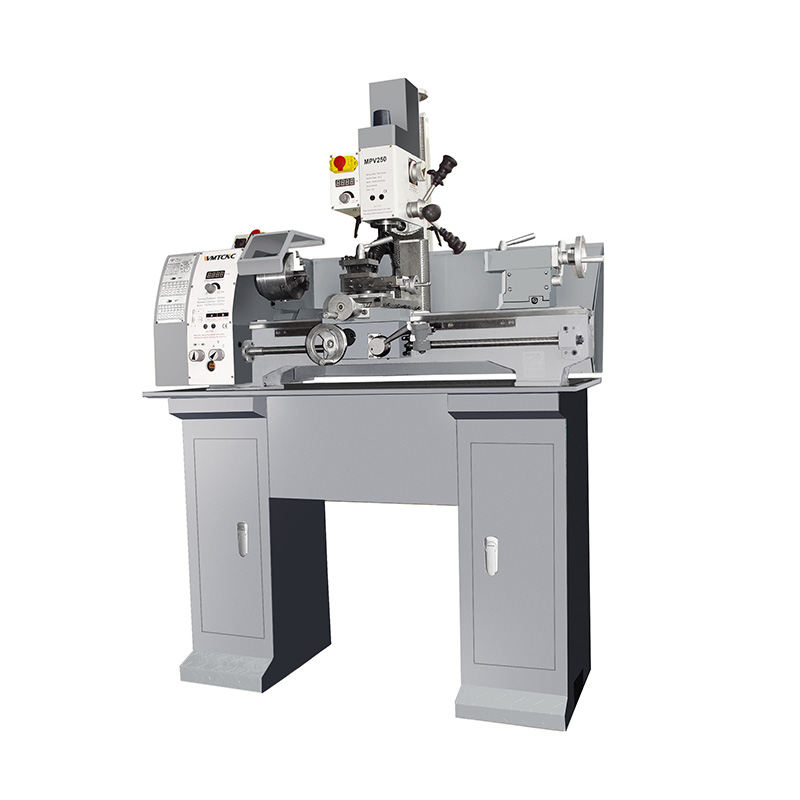

MPV250 10" X 30" High Precision Variable Speed Combo Lathe

  • MPV250
  • WMT
Quantity:

Product Description

MPV250



Model HQ250V/500mm HQ280V/700mm
TURNING   Max.swing over bed φ250mm(10") φ280mm(11")
  Distance between centers 550mm(22") 700mm(27-5/9")
  Swing over cross slide φ150mm(6") φ170mm(6-5/7")
  Width of bed 135mm(5-1/3") 180mm(7")
  Taper of spindle bore MT4
  Spindle bore φ26mm(1")
  Range of spindle speeds 50-2500rpm
  Range of longitudinal feed 0.07-0.40mm/r
  Range of inch threads 8-56TPI
  Range of metric threads 0.2-3.5mm
  Taper of tailstock quill MT2
  Motor power 1.1kw
DRILLING & MILLING   Max.drilling capacity Max.φ16mm(5/8") Max.φ20mm(4/5")
  Milling cap. of cutter head Max.φ52mm(2") Max.φ63mm(2-1/2")
  Milling cap.of end mill cutter Max.φ16mm(5/8") Max.φ20mm(4/5")
  Taper of spindle bore MT2
  Sleeve travel 52mm(2")
  T T-slot size 10mm(2/5") 12mm(1/2")
  Range of spindle speeds 50-3000rpm
  Max.distance spindle to table 280mm(11") 380mm(15")
  Working range 175mm(6-8/9") 190mm(7-1/2")
  Motor power 600W 750w
SHIPMENT DATA   Packing dimensions ( L×W×H ) 1270×680×930mm 1390×850×1060mm
  Net weight 180kg 235kg

Features:

1) High precision spindle.

2) More popular, widely useful variable speed lathe.

3) Induction harden precision bedway.

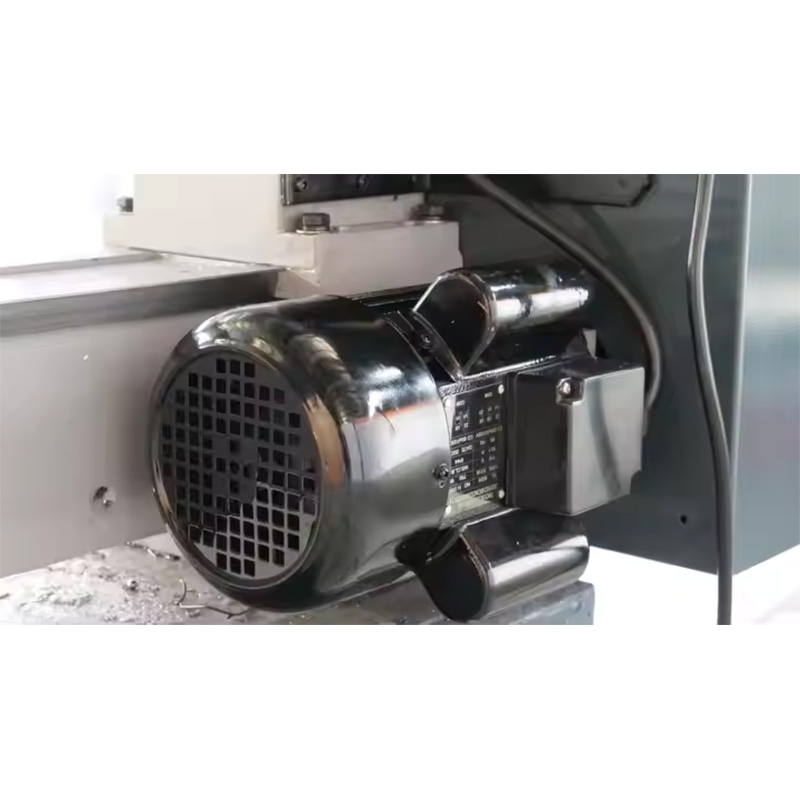

4) Powerful, maintenance-free motor.

5) Gear head, low noise.


Standard Accessories:

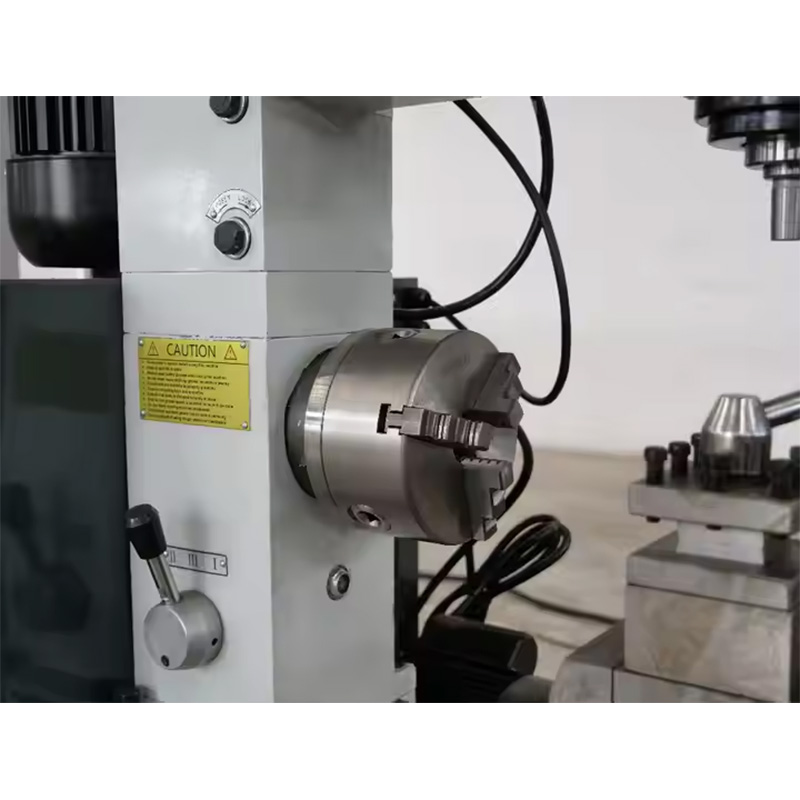

1) 3-jaw chuck

2) Speed display

3) Splash guard

4) Chip tray

5) Chuck guard

6) Dead center

7) Change gears

8) Draw bar

9) Morse taper

10) Drill chuck

11) Toolbox with tools
