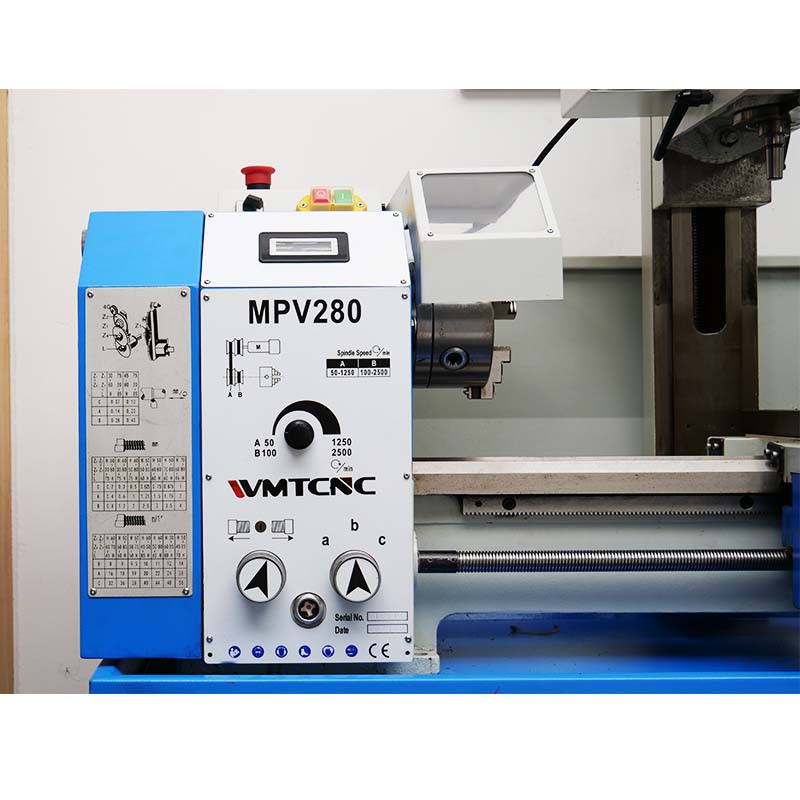

MPV280 11" X 28" Gear Head Lathe Mill Drill Combo

  • MPV280
  • WMT
Quantity:

Product Description

MPV280

Specification MPV280
Distance between centers 700mm
Swing over bed 280mm
Swing over cross slide 170mm
Spindle taper MT4
Width of  bed 180mm
Spindle bore 26mm
Range of spindle speedsvariable speed 50-2500rpm
Range of  cross feed 0.07-0.40mm/r
Range of  longitudinal feed 0.085~0.832mm/rev
Range of inch threads 8-56T.P.I
Range of metric threads 0.2-3.5mm
Top slide travel 65mm
Cross slide travel 180mm

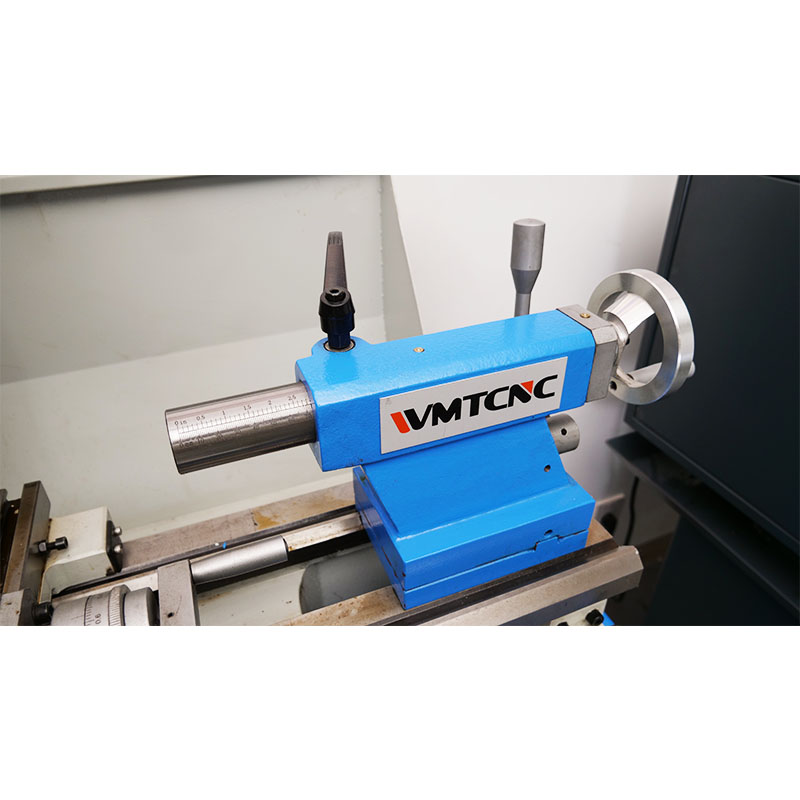

Tailstock quill travel 75mm
Taper of tailstock quill MT2
Main motor 1.1kw
Drilling and milling head BF20
Spindle taper MT2
Spindle travel 52mm
Range of spindle speedsvariable speed 50-3000rpm
Max.distance from spindle nose to table 380mm
Max.distance from spindle to columm 185mm
Motor power 850w
Packing sizefor machine 137x850x1050mm
Packing sizefor stand 800x580x415mm
N.W 248kgs

Features:

1) High precision spindle.

2) More popular, widely useful variable speed lathe.

3) Induction harden precision bedway.

4) Powerful, maintenance-free motor.

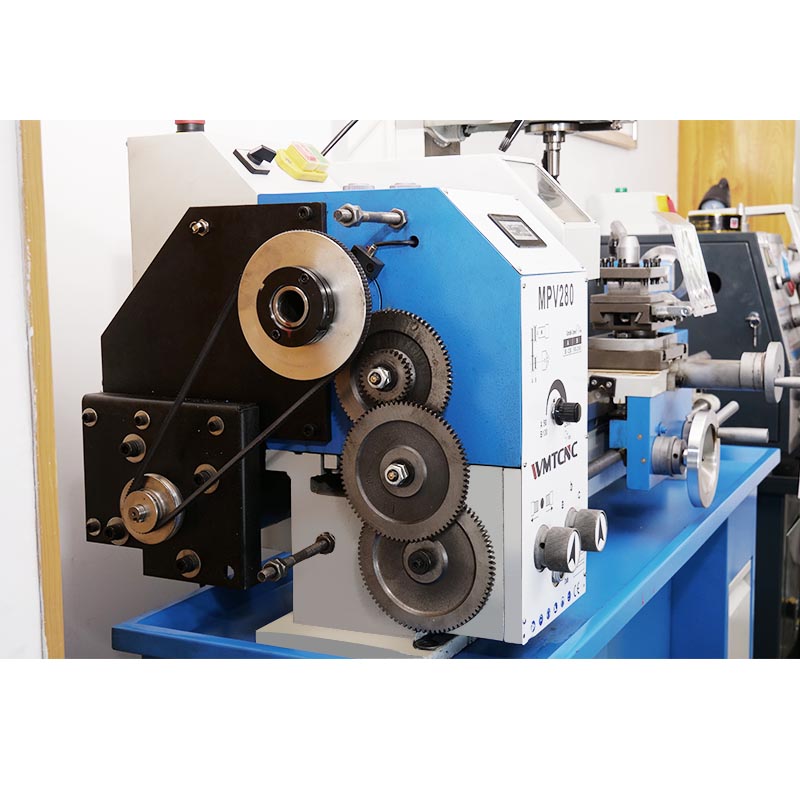

5) Gear head, low noise.


Standard Accessories:

1) 3-jaw chuck

2) Speed display

3) Splash guard

4) Chip tray

5) Chuck guard

6) Dead center

7) Change gears

8) Draw bar

9) Morse taper

10) Drill chuck

11) Toolbox with tools
