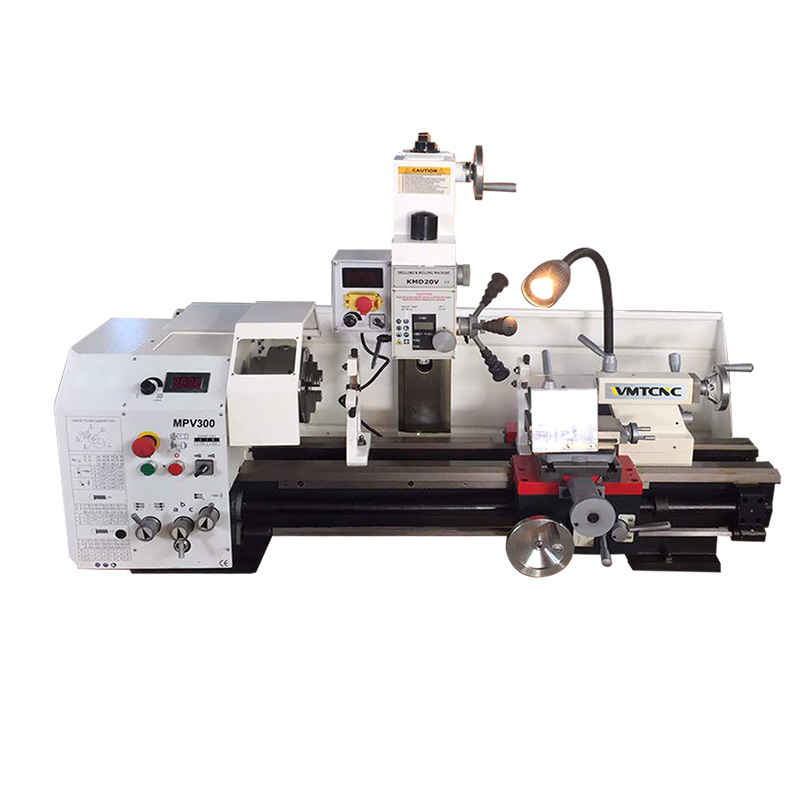

MPV300
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
1) High precision spindle.
2) More popular, widely useful variable speed lathe.
3) Induction harden precision bedway.
4) Powerful, maintenance-free motor.
5) Gear head, low noise.
| Specification | MPV300 |
| Distance between centers | 700mm |
| Swing over bed | 300mm |
| Spindle taper | MT5 |
| Width of bed | 182mm |
| Spindle bore | 38mm |
| Range of spindle speeds（variable speed） | 80-2000rpm |
| Range of cross feed | 0.01 -0.10mm /r |
| Range of longitudinal feed | 0.085-0.832mm/rev |
| Range of inch threads | 8-56T.P.I |
| Range of metric threads | 0.2 -3.5mm |
| Top slide travel | 70mm |
| Cross slide travel | 160mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT3 |
| Main motor | 1.5kw |
| Drilling and milling head | BF20 |
| Spindle taper | MT3 |
| Spindle travel | 52mm |
| Range of spindle speeds（variable speed） | 50-2250rpm |
| Max.distance from spindle nose to table | 380mm |
| Max.distance from spindle to columm | 185mm |
| Motor power | 750w |
| Packing size（for machine） | 1450 × 770 × 1050mm |
| Packing size（for stand） | 780x410x600mm |
| N.W | 390kgs |
