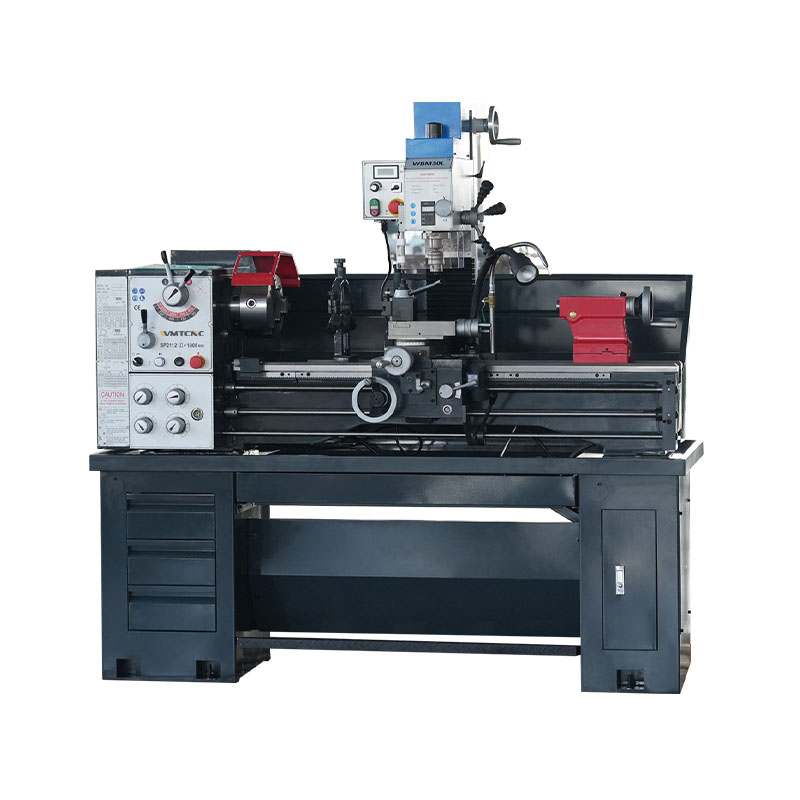

MPV360 Variable Speed Combo Lathe Multi-purpose Machine for Metalworking

MPV360 Multi-purpose Lathe Machine Combined Lathe for Sale

Product Description

Features:

1) High precision spindle.

2) More popular, widely useful variable speed lathe.

3) Induction harden precision bedway.

4) Powerful, maintenance-free motor.

5) Gear head, low noise.

MODEL		MPV360
Capacity
Processing length	mm	1000
Swing over bed	mm	Φ360
Swing in gap	mm	Φ491
Swing over cross slide	mm	Φ212
Bed Width	mm	187
Centre height	mm	178
Spindle
Spindle nose		D4 (opt: D5)
Taper of spindle bore		MT5 (opt: MT6)
Spindle bore	mm	Φ38 (opt: Φ51)
Spindle speed: Gear steps / Range	RPM	8 Steps 70-2000 rpm (opt: 90-2000 rpm)
Thread cutting
Threads Inch pitches	mm	34kinds 4-56T.P.I
Threads metric pitches	mm	26kinds 0.4-7mm
Threads diametral pitches	m/min	-
Threads module pitches		-
Feeds Range
Cross slide travel	mm	170
Top slide travel	mm	90
Longitudinal feeds	mm/rev	32 kinds 0.052-1.392mm/rev
Cross feeds	mm/rev	Metric lathe / 0.009-0.253mm/rev Inch lathe / 0.015-0.402mm/rev
Tailstock
Quill diameter	mm	Φ32
Quill travel	mm	100
Taper of center	mm	MT3 (opt: MT4)

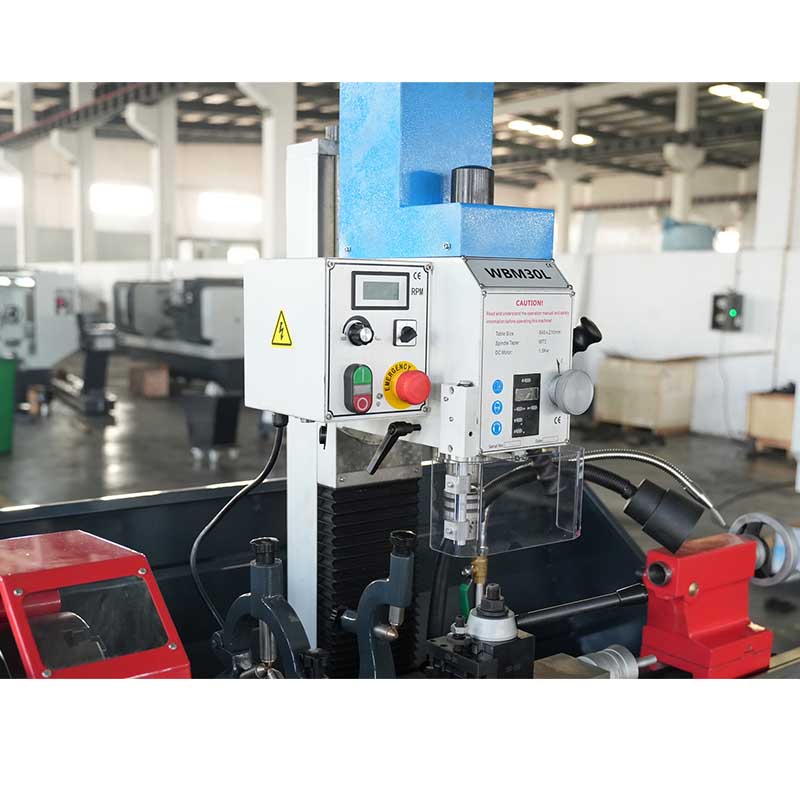

MILL HEAD
Spindle motor power	kw	1.5KW
Drilling capacity	mm	Φ30mm
Surface milling capacity	mm	78mm
Spindle taper		MT #3
Spindle travel	mm	70mm
Spindle speed	rpm	50--2250rpm
Distance between spindle and worktable	mm	470mm
Distance between spindle and column	mm	190mm
Mill head size	mm	540x480x1070
Motor
Spindle motor power	KW	1.5
Coolant pump power	W	40
Measurement
Tool shank size	mm	16 x 16
Packing size L W×H	mm	194011201500
Gross weight	kg	800
MILL HEAD
Spindle motor power	KW	1.5KW
Drilling capacity	mm	Ф30mm
Surface milling capacity	mm	78mm
Spindle taper		MT #3
Spindle travel	mm	70mm
Spindle speed	rpm	50--2250rpm
Distance between spindle and worktable	mm	470mm
Distance between spindle and column	mm	190mm
Mill head size	mm	540x480x1070
