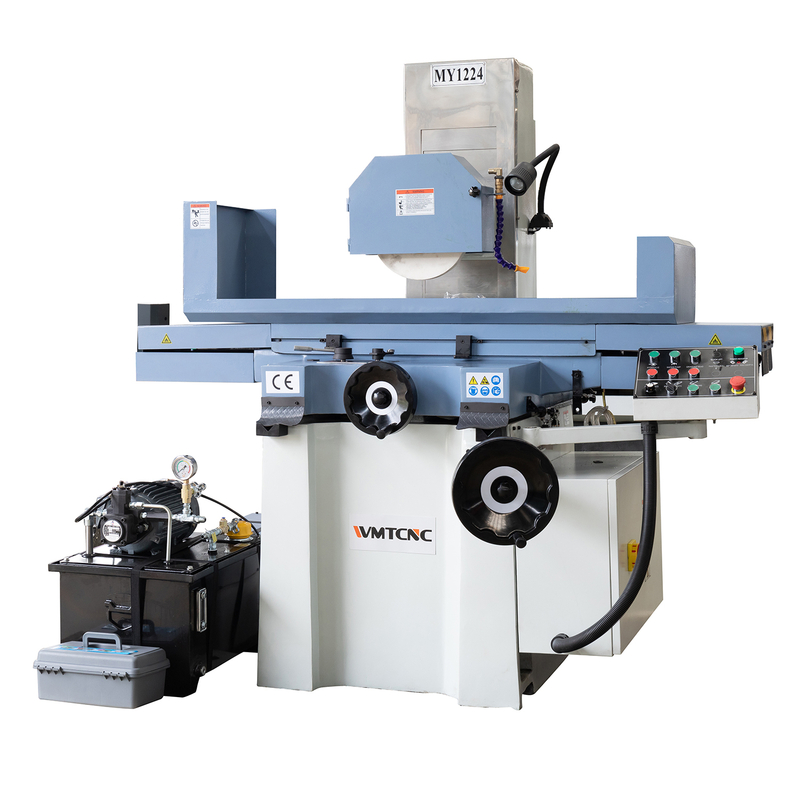

MY1224 12" X 24" WMTCNC China Hydraulic Grinding Machine with CE

  • MY1224
  • WMT
Quantity:

Product Description

Features:
1. Machine reasonable structure, good rigidity, good looks, easy to operate.
2. Table movement in longitudinal is the hydraulic transmission.
3. Spindle motor no vibration and low noise.
4. X-axis moving by hydraulic driven.
5. Y-axis built-in power feed.
6. Z-axis moving by Rapid elevating motor.

MY1224 (1)

Item Specification MY1224
Worktable Max.workpiece to be ground(LxWxH) 600x300mm
Max.travel of table(LxW) 640x320mm
Table max. cutting area(Lxw) 640x320mm
Number of T-slot 1x14mm
The grinding head Distance from table surface to spindle center 490mm
Wheel size(dia x width x bore) 250x25.4x76.2mm
Spindle speeds 1440r/m
The amount of feed Table longitudinal (left and right) speed(stepless) 3-20/min
Table horizontal(before and after)the amount of feed Continous(variable speed) 150mm/min
Intermittent(stepless) 0-5
The handwheel rotates 4mm
Handwheel each grid 0.02mm
Vertical (up and down)feed wheel feed The handwheel rotates 2mm
Handwheel each grid 0.01mm
Motor Spindle motor 2.2mm
Cooling motor 40kw
Reversing feeder Hydraulic motor 1.5kw
Working pressure 3mpa
Fuel tank capacity 80L
The max.flow 18L/min
Working precision The machined surface of the base of parallelism 300/0.004mm
Surface Roughness Ra0.32um
Net weight 1.5T
Gross weight 1.65T
Machine size 1960x1630x1870mm
