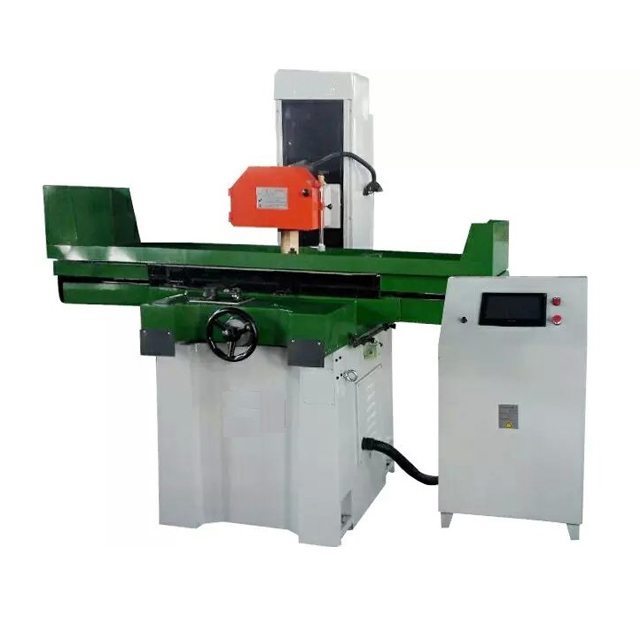

MY1230 12" X 24" WMT CNC China SG Hydrulic Surface Grinder

  • MY1230
  • WMT
Quantity:

Product Description

MY1230

Item Specification MY1224 MY1230
Worktable Max.workpiece to be ground(LxWxH) 600x300mm 700x320mm
Max.travel of table(LxW) 640x320mm 640x370mm
Table max. cutting area(Lxw) 640x320mm 760x370mm
Number of T-slot 1x14mm 1x14mm
The grinding head Distance from table surface to spindle center 490mm 540mm
Wheel size(dia x width x bore) 250x25.4x76.2mm 335x40x127mm
Spindle speeds 1440r/m 1440r/m
The amount of feed Table longitudinal (left and right) speed(stepless) 3-20/min 5-25/min
Table horizontal(before and after)the amount of feed Continous(variable speed) 150mm/min 150mm/min
Intermittent(stepless) 0-5 0-5
The handwheel rotates 4mm 4mm
Handwheel each grid 0.02mm 0.02mm
Vertical (up and down)feed wheel feed The handwheel rotates 2mm 2mm
Handwheel each grid 0.01mm 0.01mm
Motor Spindle motor 2.2mm 4mm
Cooling motor 40kw 40kw
Reversing feeder Hydraulic motor 1.5kw 1.5kw
Working pressure 3mpa 3mpa
Fuel tank capacity 80L 80L
The max.flow 18L/min 18L/min
Working precision The machined surface of the base of parallelism 300/0.004mm 300/0.004mm
Surface Roughness Ra0.32um Ra0.32um
Net weight 1.5T 2.1T
Gross weight 1.65T 2.35T
Machine size 1960x1630x1870mm 25600x2430x1920mm

Standard accessories:

Tool box

Balancing stand-balancing bar

Flange wrench

Screw driver

Balancing screw

Open-end wrench

Inner hexagon spanner

Wheel dresser holder

Machine stand pad

Wheel flange

Wheel dresser

Chuck


Optional accessories:

2 axis DRO

CE protection

Machine vice

Vacumn pump
