Product Description
Main Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 50-2500rpm.

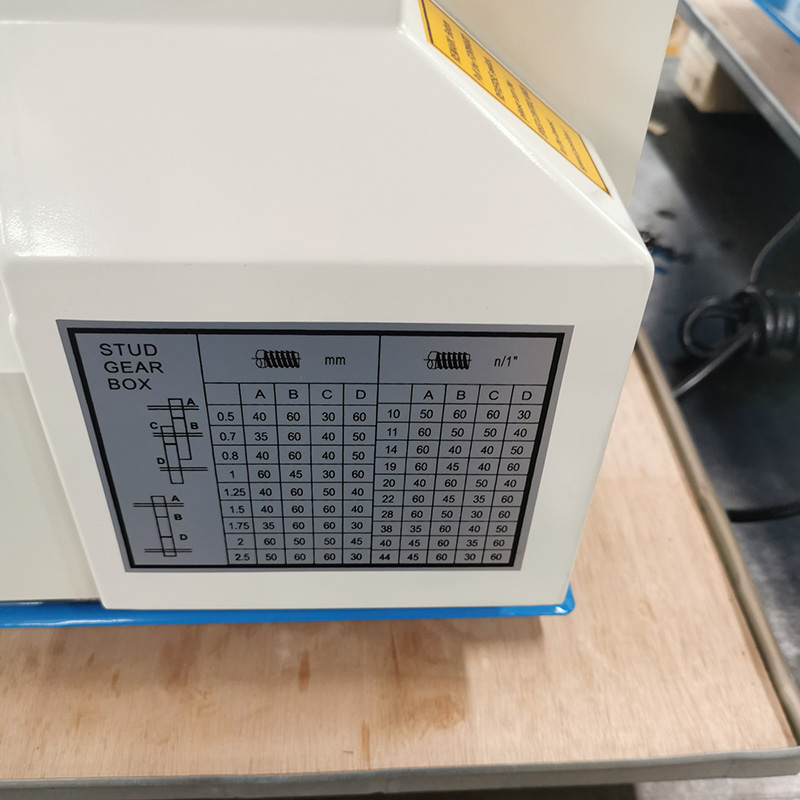

6. Easy operating gear box has various feeds and thread cutting function.
7. With or without cabinet according to requirement.
| Model | DIY0708/DIY0712/DIY0714 |
| Distance between centers | 200/300/350mm |
| Swing over bed | 180mm |
| Taper of spindle bore | MT3 |
| Spindle bore | 20mm |
| Step of spindle speeds | Variable speed |
| Range of spindle speeds | 50-2500rpm |
| Range of inch threads | 12-52T.P.I |
| Range of metric threads | 0.5-2.5mm |
| Travel of cross slide | 65mm |
| Taper of tailstock quill | MT2 |
| Main Motor | 400/550w |
| Packing size | 660/760/810×310×370mm |
| N.W/G.W | 35/38/40kg,38/42/45kg |
