Metal Lathe C6250F-Industrial Grade Big Bore High Precision Engine Lathe

  • C6250F

  • WMT

  • 84581900

Availability:
Quantity:

Product Description

Features:

  • All-geared feeding box well sealed with no leakage.

  • Aproncase with overload protection, well sealed against leakage.

  • Guideway adopting ultrasonic frequnency. Quenching to ensure a long service life.

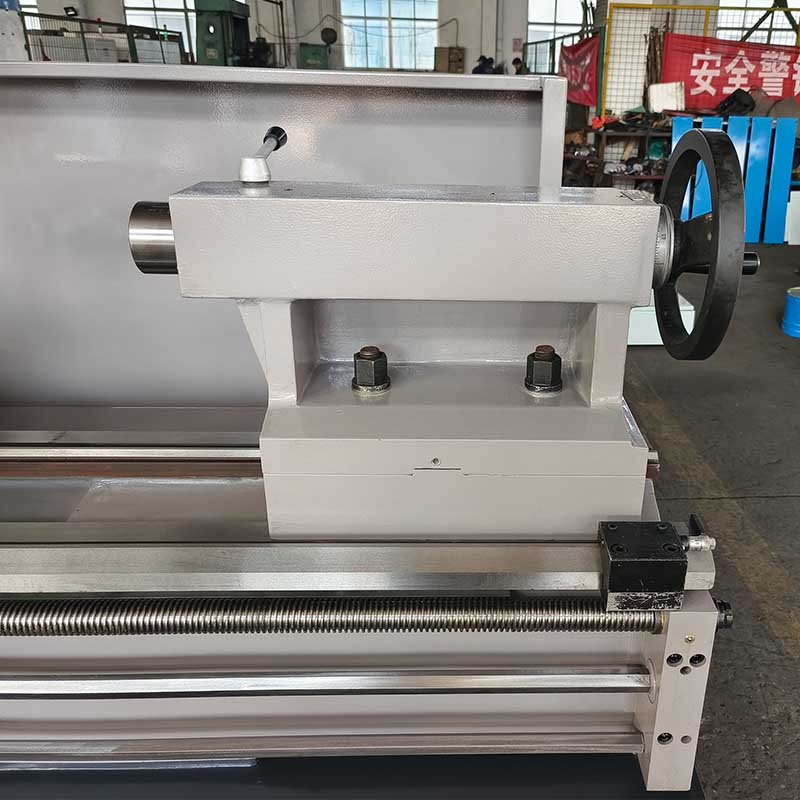

  • Tailstock locked by thread and camlock.


C6250F

Specification C6250F
Max.swing over bed 500mm
Max.swing over cross slide 330mm
Max.swing over gap 660mm
Effective length of gap CC: 160mm  CF:130/130mm
Center Distance 750/1000/1500/2000/3000
Bed Width 360mm
Spindle hole 52mm
Spindle nose ISO-C6
Spindle taper MT6
Spindle speed(Number) CC: (9steps)40-1400rpm /CF: (12 steps)16-1600rpm
Metric threads range CC: 19kinds 0.5-14mm/  CF: 19kinds 0.25-14
Inch threads range CC: 27kinds 2-40inch/ CF: 49kinds 2-40
Module threads range CC: 11kinds 0.25-3.5mπ / CF: 11kinds 0.5-3.5
Max.travel of top slide 95mm
Max.travel of cross slide 180mm 200mm 250mm
Max.size of tool shank 20×20mm
Dia.of tail stock sleeve 65mm
Taper of tail stock sleeve MT4
Max.travel of tail stock 130mm
Main drive motor 4kw or 5.5kw
Coolant pump motor 125W
Packing size 750mm:2250x110x1650mm   1000mm:2450x1150x1650mm   1500mm:2880x1150x1650mm
G.W/N.W 750mm:1350/1750kgs 1400/1800kgs 1500/1900kgs 1000mm:1450/1480kgs 1500/1850kgs 1600/1950kgs 1500mm:1600/1950kgs 1650/2000kgs 1750/2100kgs

Standard accessories:

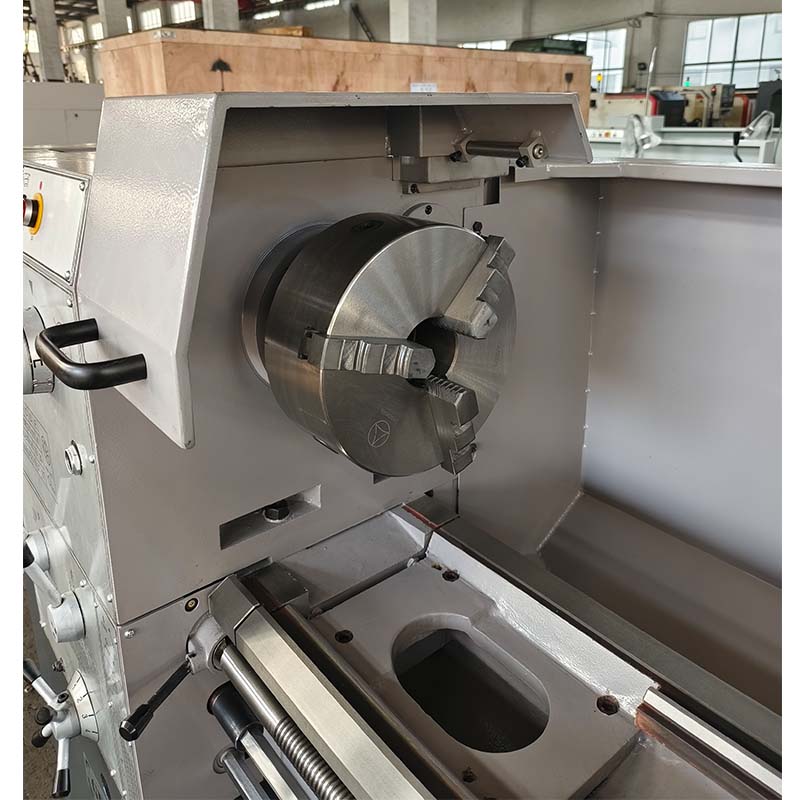

  • 3 jaw chuck

  • 4 jaw chuck

  • Face plate

  • Coolant system

  • Working light

  • Foot brake

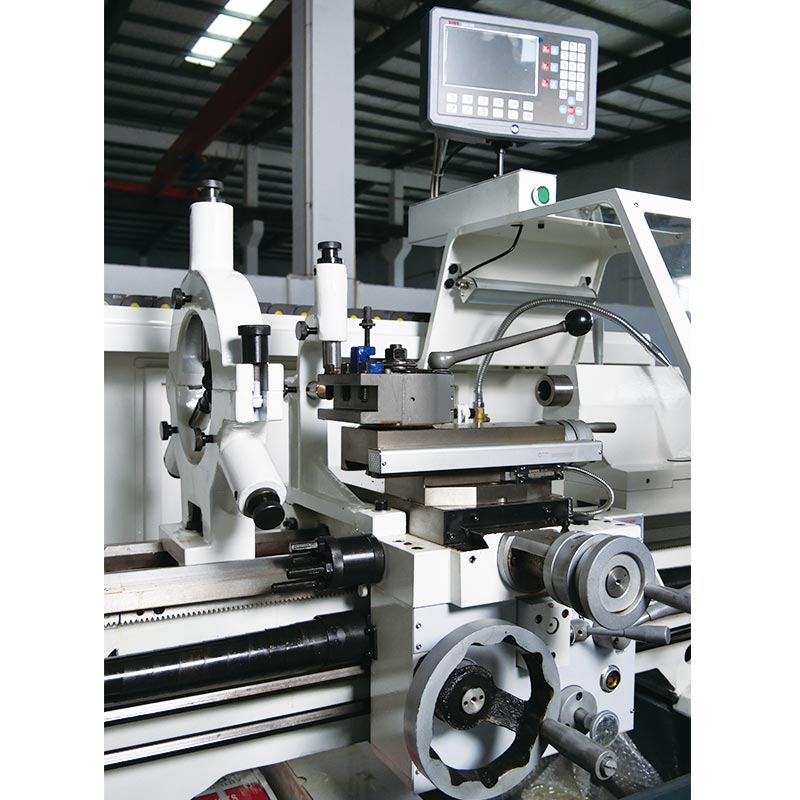

  • Steady rest

  • Follow rest

  • Change gears set

  • Tool box& tools
