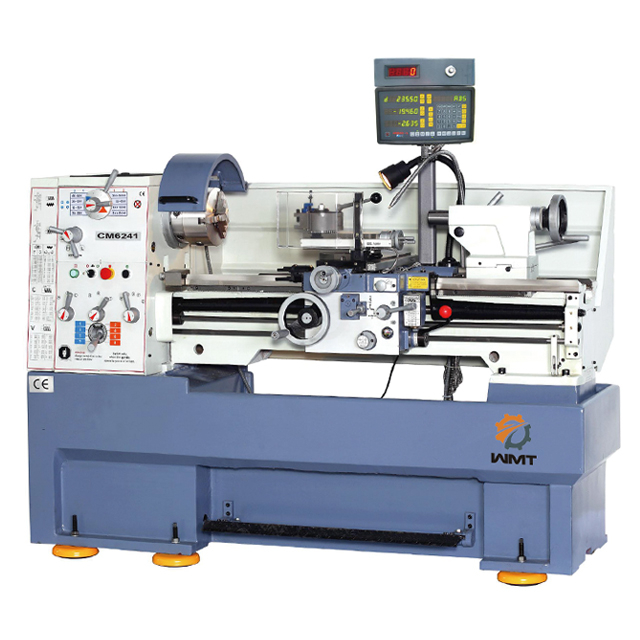

Metal Lathe CM6241- Swing 410mm High Precision Metal Horizontal Gap Bed Turning Lathe

  • CM6241
  • WMT
  • 84581900

Product Description


  • Precision ground and supersonic frequency hardened bed ways with designed in double wall structure,giving super rigidity.

  • High rigidity and accuracy for spindle system.

  • Main drive design optimized and the gears in the headstock precisely ground in order to get low noise

  • No need for change gears.The machine can turn about 200 kinds of metric,module and D.P. Threads.

  • Thanks to safe and reliable pedal braking device providing quick and effective stop while operating., automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece.


Specification CM6241×1000 /1500mm
Swing over bed 410mm
Swing over cross slide 255mm
Swing in gap 580mm
Length of gap 19mm
Distance between centers 1000mm /1500mm
Center height 205mm
Width of bed 250mm
Spindle nose D1-6
Spindle bore 52mm
Taper of spindle bore MT6
Range of spindle speed 16 changes 45-1800r/min
Travel of compound rest 102mm of cross slide 210mm
Leadscrew pitch 4T.P.I.
Max.Section of tool 20×20mm
Longitudinal feeds range 0.05-1.7mm/rev(0.002"-0.067"/rev)
Cross feeds range 0.025-0.85mm(0.001"-0.0335"/rev)
Cross feeds range 0.025-0.85mm(0.001"-0.0336"/rev)
Inch threads range 45kinds 2-72T.P.I
Diametrical pitches range 21kinds 8-44D.P.
Module pitches range 18kinds 0.3-3.5M.P.
Dia.of tailstock sleeve 50mm
Travel of tailstock sleeve 120mm
Taper of tailstock sleeve MT4
Power of main motor 2.2/3.3kw(optional 3.0/4.5kw)
Power of coolant pump 90w
Overall dimension 1940/2440×850×1300mm
Packing size  2060/2560×900×1640mm
N.W/G.W 1500/1750kgs  1550/1800kgs

Standard Accessories

  • 3 jaw chuck

  • 4 jaw chuck

  • Coolant system

  • Working light

  • Foot brake

  • Steady rest

  • Follow rest

  • Chasing dial indicator

  • Change gears set

  • Tool Box & Tools
