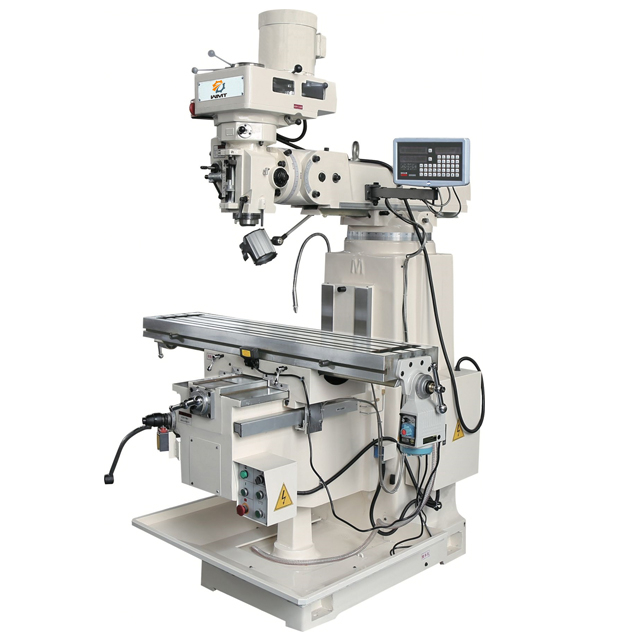

Milling Machines X6330 54''x 12'' Turret Milling Machine with Power Feed

  • X6330
  • WMT
  • 84592900
Availability:
Quantity:

Product Description

Features

  • Rectanger guide way,better stability.

  • Easy changing from vertical milling to horizontal milling.

  • Worktable can be automatically feed in X axis, and equipped with quick-reverse unit to realize.

X6330

Specificaiton X6330
Table size 1370×305mm
T-slotes (No./Width/Pitch) 3/16/65mm
Table travel (X/Y/Z) 850×400×450mm
Distance between spindle nose and table surface 0-460mm
Spindle speed 66-4540rpm
Main motor power 5HP
Spindle taper NT40
Travel of spindle sleeve 127mm
Arm travel 500mm
Feed of spindle sleeve 500mm
Milling head rotation swivel:45° title:90°
Machine overall size (L*W*H) 1750×1650×2150mm
NW 1350kg


Standard accessories:
Coolant system
Working lamp
 Taiwan milling turret head
58pcs clamping kit
Oil tray
160mm vice
11pcs spindle kit
tool box with tools

Optional accessories:
Taiwan Variable speed head
X/Y/Z digital read out
X/Y power feed
Z  axis lifting motor
