D280V
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Guaranteed concentricity precision of the main spindle less than 0.009mm.

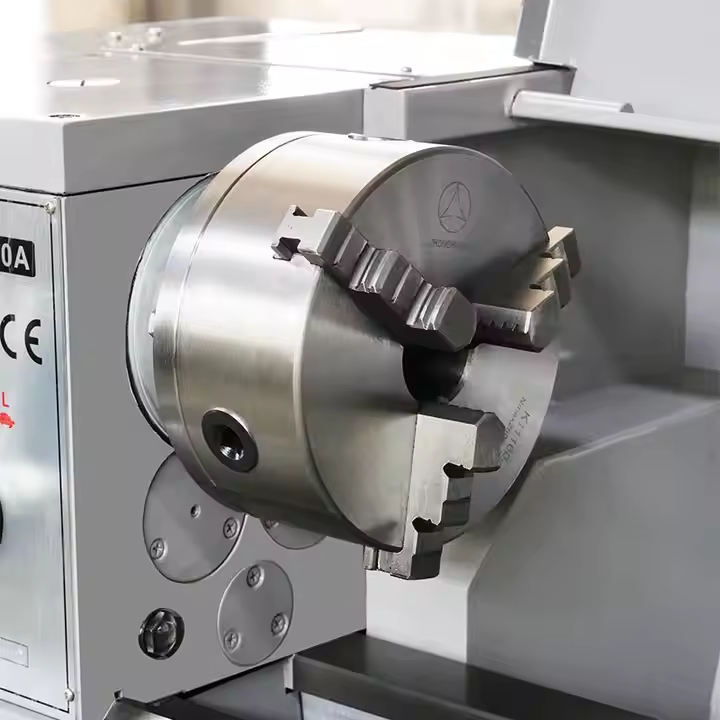

2. Concentricity precision-lathe chuck smaller than 0.05mm.
3. Easy operating gear box has various speeds and thread cutting function.
4. Induction-hardened and ground prismatic bed made from cast iron.
5. High precision and hardened spindle.
6. Safety magnetic and lock key European-standard switch.
Specification:
| Model | D280V |
| Max. swing over the bed | 280mm |
| Max. length of workpiece | 700mm |
| Max. swing over cross slide | 170mm |
| Width of bed | 180mm |
| Spindle bore | 26mm |
| Spindle taper | MT4 |
| Spindle speed range(variable speed) | 50-2500rpm |
| Metric threads range | 0.2-4mm |
| Inch threads range | 8-56TPI |
| Top slide travel | 70mm |
| Cross slide travel | 140mm |
| Tailstock quill travel | 70mm |
| Tailstock quill taper | MT2 |
| Motor power | 850w |
| Packing size(L×W×H) | 1450×700×680mm |
| N.W. | 200kg |
| G.W. | 230kg |
