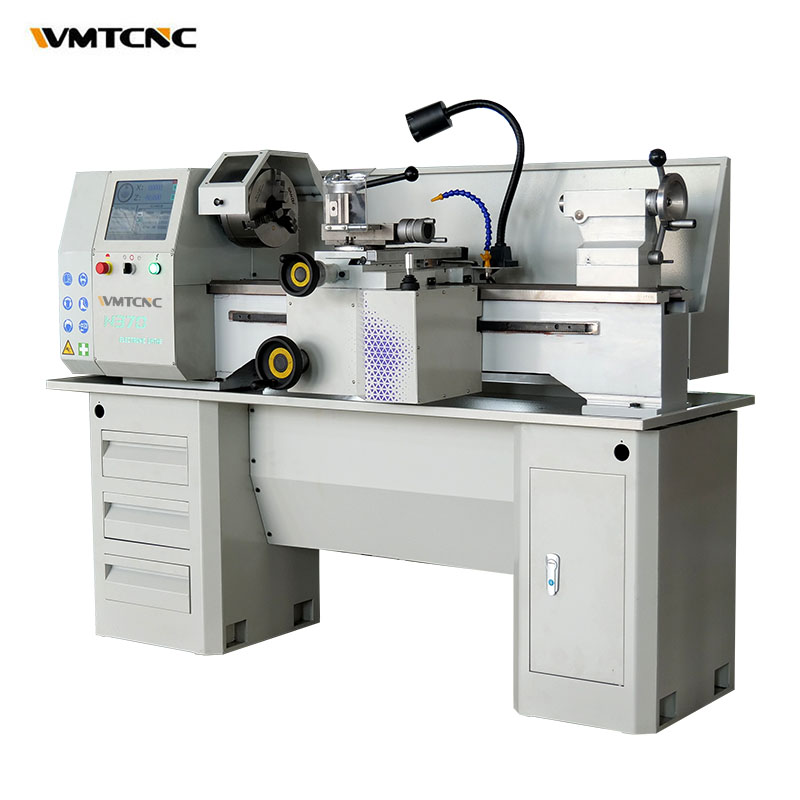

N370
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1.It offers high-precision turning with stable spindle speed control, ideal for detailed metalwork and prototype manufacturing.
| Specification | N370 |
| Max. swing over bed | 370mm |

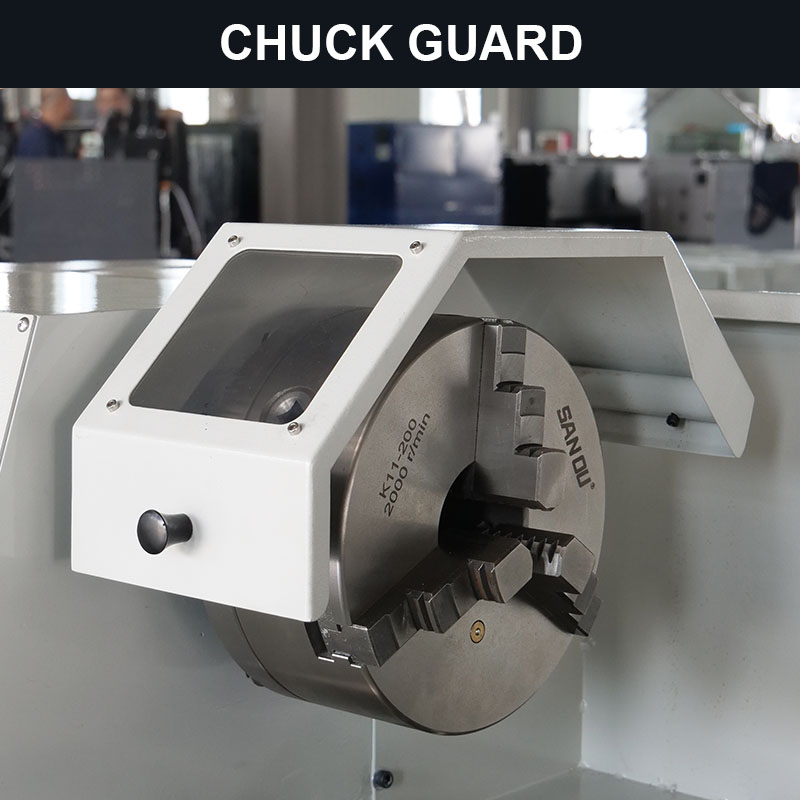

| Chuck size | 160mm |
| Max. swing over cross slide | 206mm |
| Distance between centers | 950mm |
| Width of bed | 180mm |
| Spindle bore and nose | 55mm |
| Spindle taper | MT6 |
| Speed number | 1 steps |
| Cross slide travel | 185mm |
| Spindle speed range | 70-2000rpm |
| Max. section of tool | 20x20mm |
| Tailstock quill taper and travel | MT4 |
| Tailstock quill diameter | 40mm |
| Main motor power | 2.2kw |
| Coolant pump power | 40w |
| Packing size | 1800x800x650mm |
| N.w/G.W | 500/550kg |

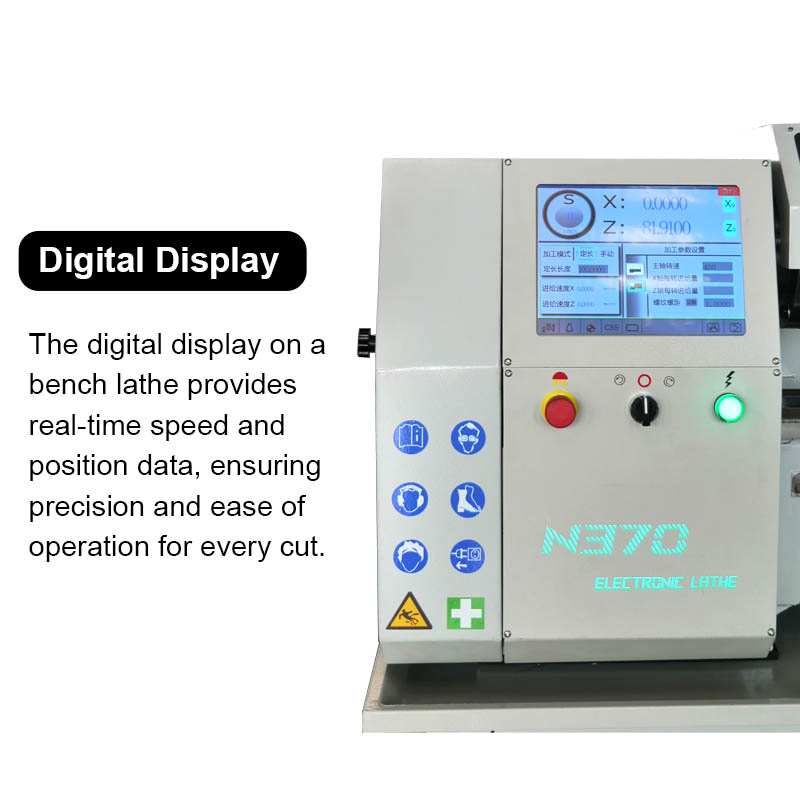

| DRO | 2 axis DRO |
