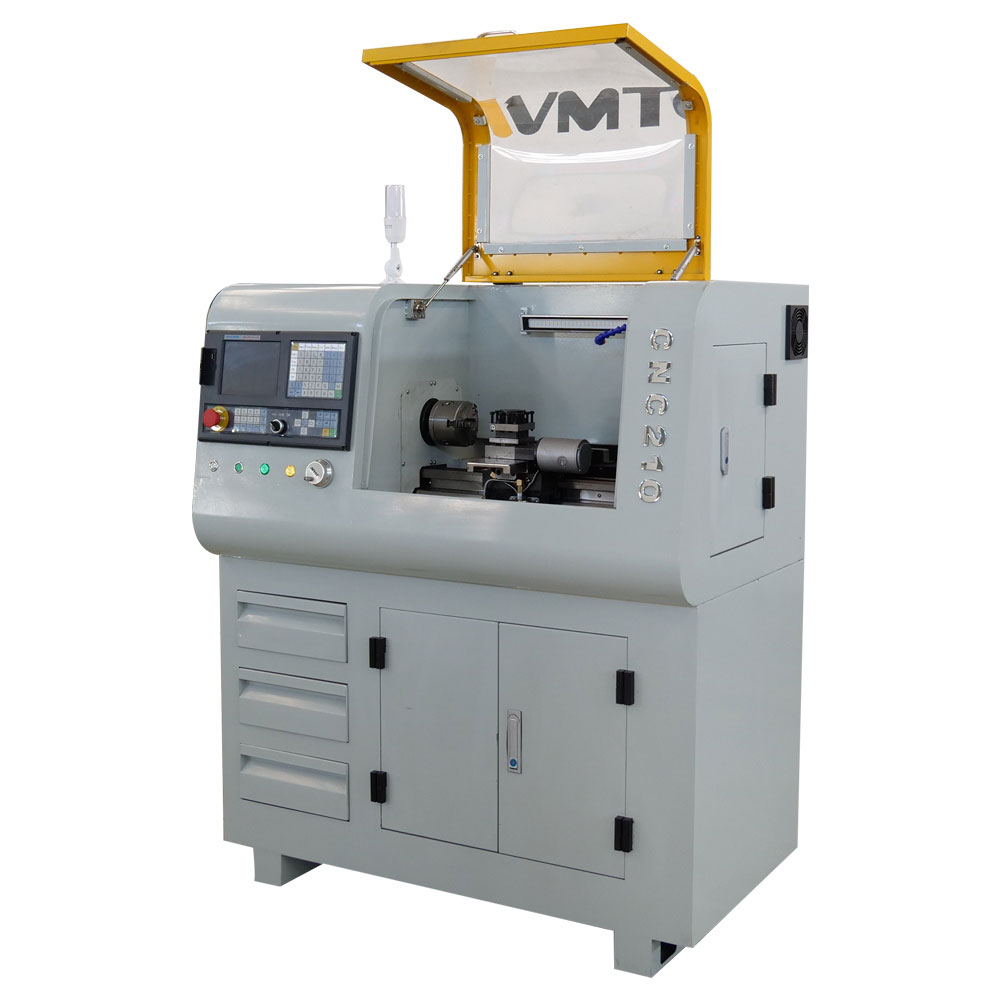

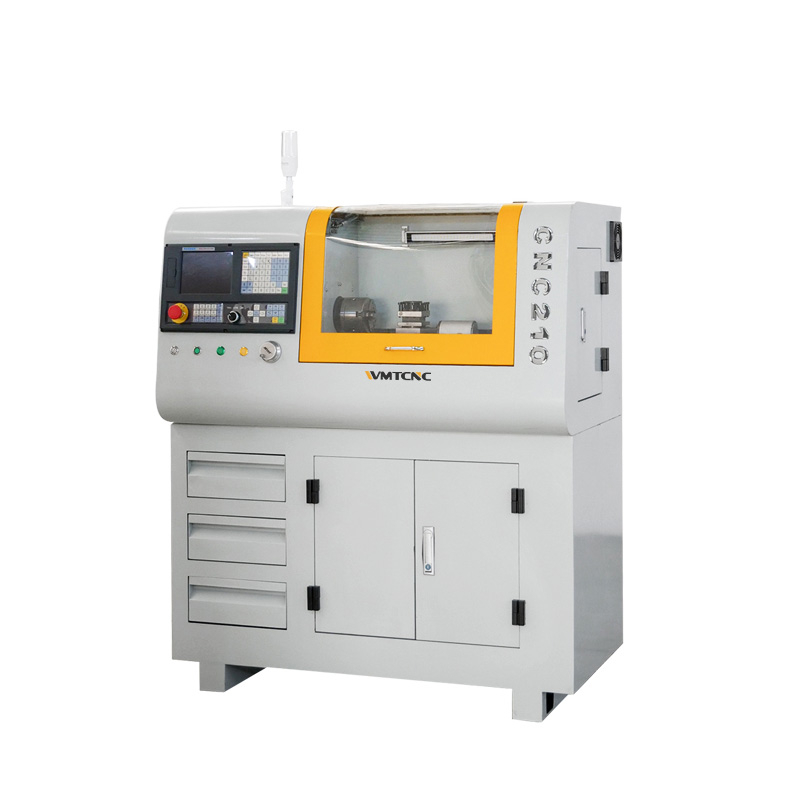

CNC210
WMTCNC
8459310000
| Quantity: | |
|---|---|
Product Description
Features:
1. The machine can process precisely internal or external diameter, face, taper and threading with high efficiency.
2.DC brushless spindle motor.
3. Small occuping, lower energy consumption,easy operation, suitable for small processing.
4. High-quality spindle by high-precision grinding and support by Angular contact bearin.
5. Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine.
6. Macro arithmetic operation can be performed, the processing of complex parts, fully functional, economical and practical with a textbook for teaching.
| Specification | CNC210 |
| Capacity | |
| Max. swing over bed | 210mm |
| Distance between centers | 400mm |
| Rail width | 100mm |
| Spindle | |
| Spindle bore dia. | 26mm |
| Spindle taper | MT4/5C(Optional) |
| Spindle speed | 3000rpm |
| No. of tool stations | 4-position |
| Axis | |
| X-axis travel | 105mm |
| Z-axis travel | 300mm |
| X rapid speed | 5000mm/min |
| Z rapid speed | 5000mm/min |
| Motor | |
| Spindle motor power | 1.2kw |
| Main motor type | Srevo motor |
| Controller system | After 990TDB |
| X motor torque | 1.9N.m |
| Z motor torque | 1.9N.m |
| Min. setting unit | 0.001mm |
| Turret | |
| Type | Electric type |
| No. of tool stations | 4 position |
| Max. section of tool | 10x10mm |
| Tailstock | |
| Tailstock dia. | 22mm |
| Tailstock tavel | 50mm |
| Tailstock taper | MT2 |
| Machine Dimensions | |
| Packing size(without stand) | 1170X700X860mm |
| Overall size | 1300X800X1500mm |
| N.W(without stand) | 200kg |
| N.W | 230kg |
