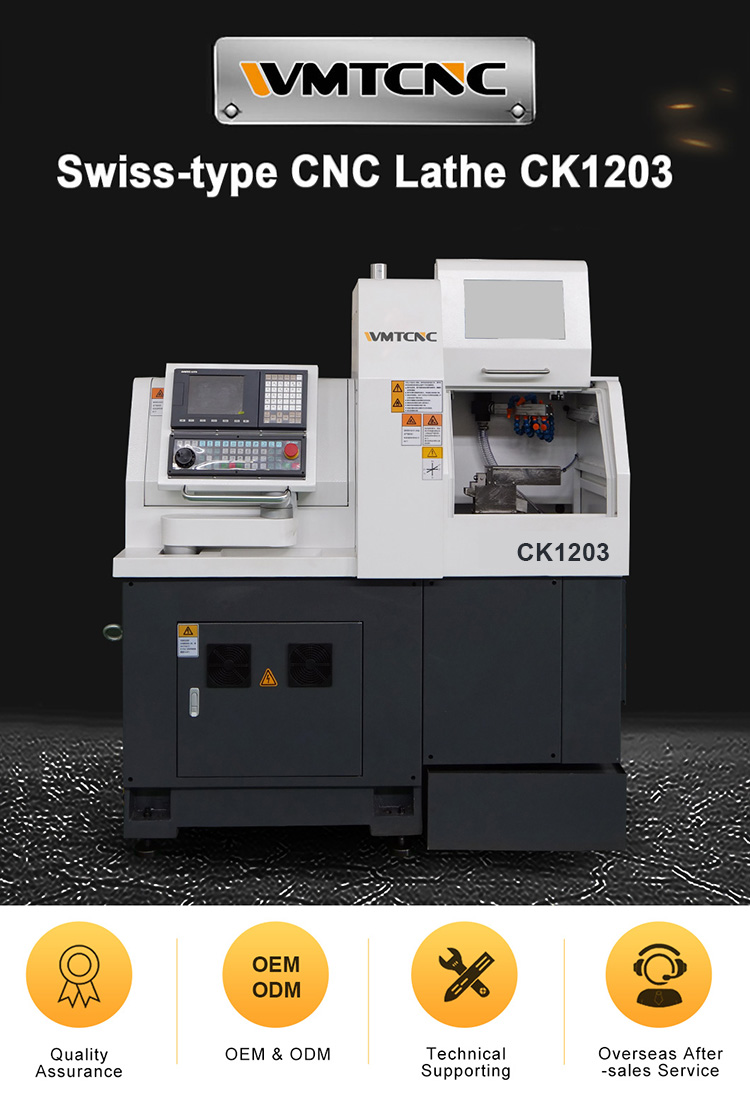

CK1203
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:

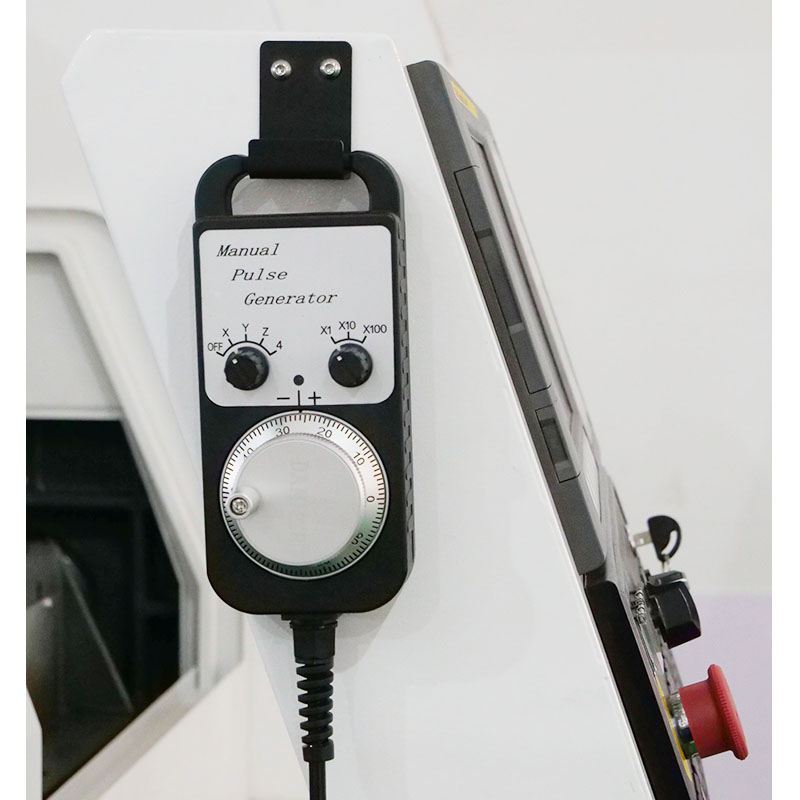

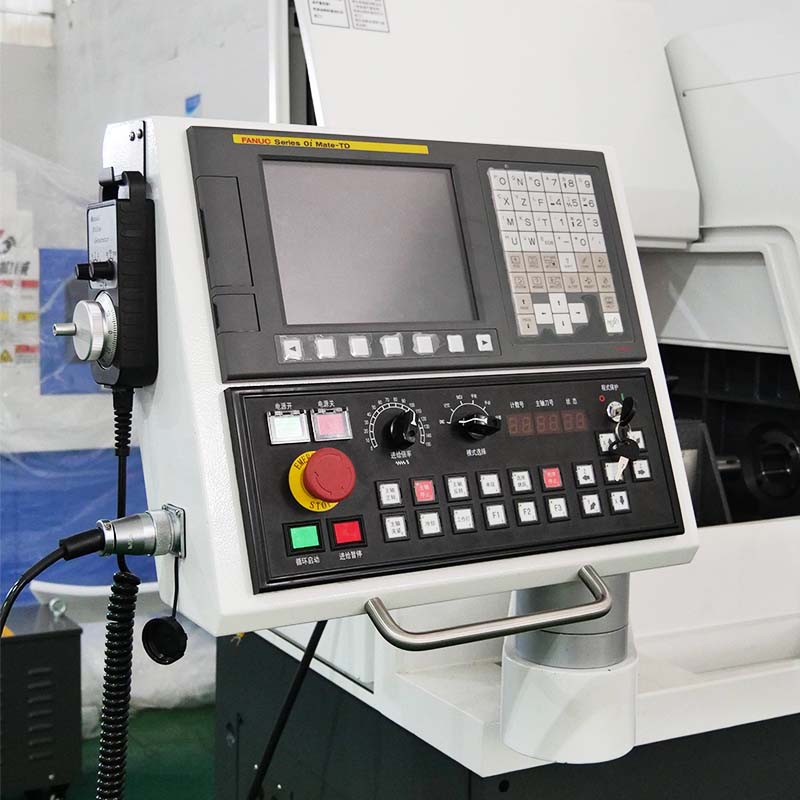

1. CNC system: standard with Taiwan Syntec system, high stability and high precision.

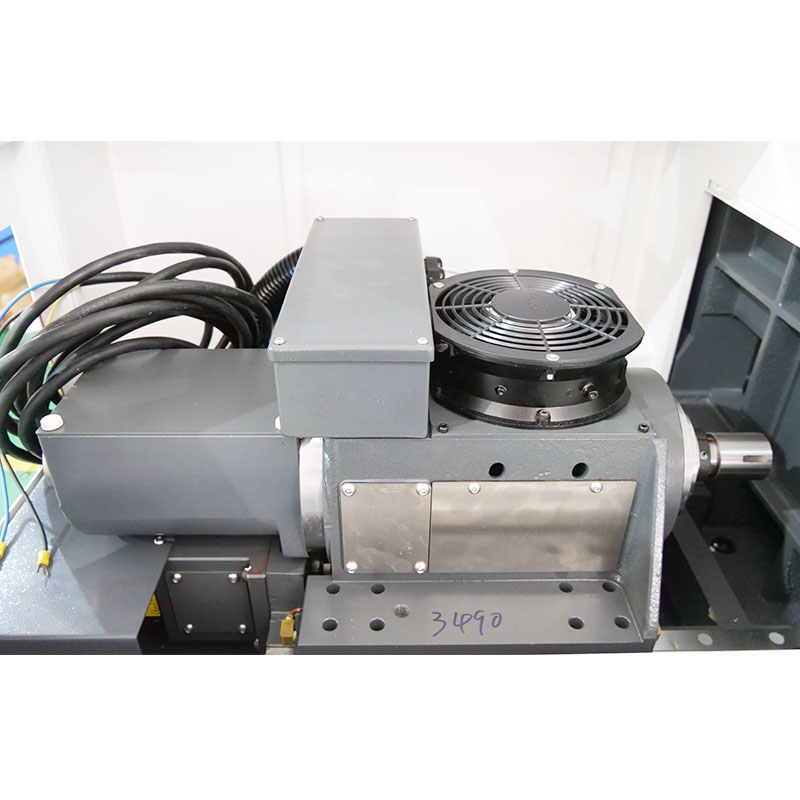

2. High-precision spindle: built-in electric spindle structure, spindle bearings using imported high-precision angular contact bearings to ensure high rigidity of the spindle and long-lasting precision retention, spindle runout ≤ 2μm.
3. High-performance cast iron: stable structural design, high-quality Meehanna cast iron (meehanite metal) whole bed and drag plate, after aging treatment, strong rigidity.
4. High-precision feeding: servo-driven feeding axes, imported high-precision screw bearings, imported high-precision screw guide, to ensure machining accuracy and long-time precision maintenance, feeding the axes of the repetitive positioning accuracy of ≤ 3μm.
5. Guide structure: no guide, fixed guide or rotary guide cutting mode can be selected to meet diversified processing requirements.

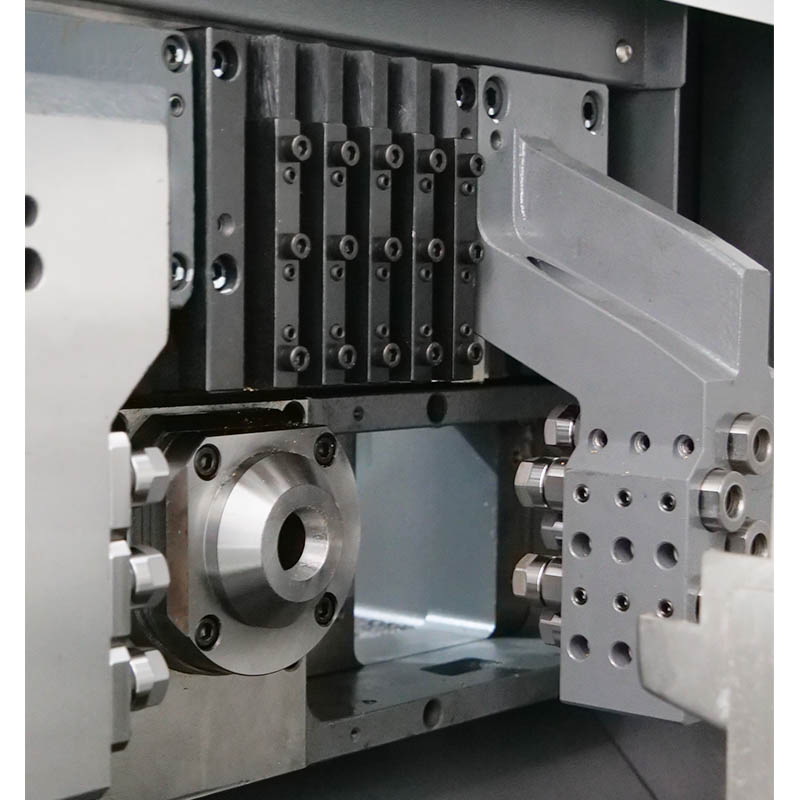

6. Tooling system: adopting cross row linear tool layout structure, smooth chip removal, compact structure and quick tool change. Configuration of radial power tool can meet the complex turning, milling, drilling and other processes of complex machining needs.

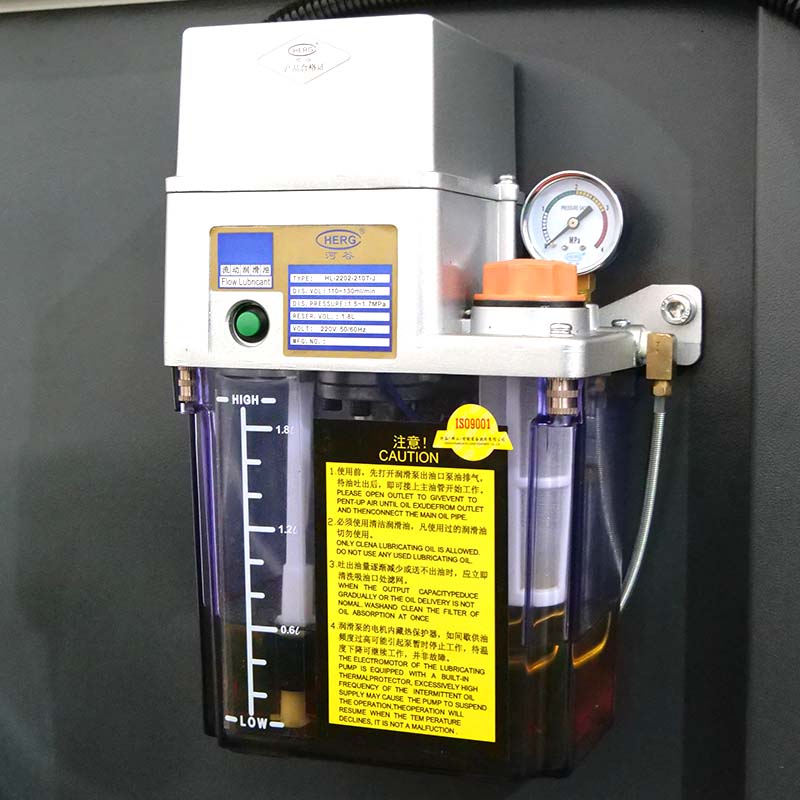

7. Lubrication system: all the screws and guide rails are lubricated by centralised lubrication system to ensure the long-term and efficient operation of the machine tool.
8. Automation: through the configuration of automatic feeding machine, it can realise automatic continuous processing.
9. Application: widely used in communication, electronics, automotive, pneumatic and hydraulic, medical, instrumentation, aviation and other industries for complex, small, precision, slender shaft parts processing.
| CK1203 | ||||
| Model | CSL1203Ⅱ | |||
| Processing Capacity | Max.clamping dia.of spindle (mm) | Φ12 | ||
| Main spindle bore dia.(mm) | Φ16 | |||
| Max machining length (mm) | Fixed guide sleeve | 140 | ||
| Rotary guide sleeve | 135（Optional） | |||
| No guide sleeve | -- | |||
| Max.clamping dia.of back spindle (mm) | -- | |||
| Max.drilling dia. (mm) | φ7 | |||
| Max.tapping dia. (mm) | M6 | |||
| Mechanical Capacity | Main spindle speed(r/min) | 8000 | ||
| Back spindle speed (r/min) | -- | |||
| Live tool speed(r/min) | 5000（Optional） | |||
| Rapid traverse speed (m/min) | 20 | |||
| Spindle runout(mm) | ≤0.002 | |||
| Repositioning accuracy | ≤0.003 | |||
| Tooling Systems | Cylindrical turning tool | 5(口10) | ||
| Face drilling tool | 4（ER11） | |||
| Lateral power tool | 3(ER11)（Optional） | |||
| Backside drilling tool | -- | |||
| Motor power | Main spindle (kW) | 3.7 | ||
| Back spindle (kW) | -- | |||
| Side power motor power (kW) | 0.4（Optional） | |||
| Cooling pump (kW) | 0.18 | |||
| Machine weight(Kg) | 1350 | |||
| Overall dimension (L×W×H)(mm) | 1560×900×1680 | |||
