Product Description

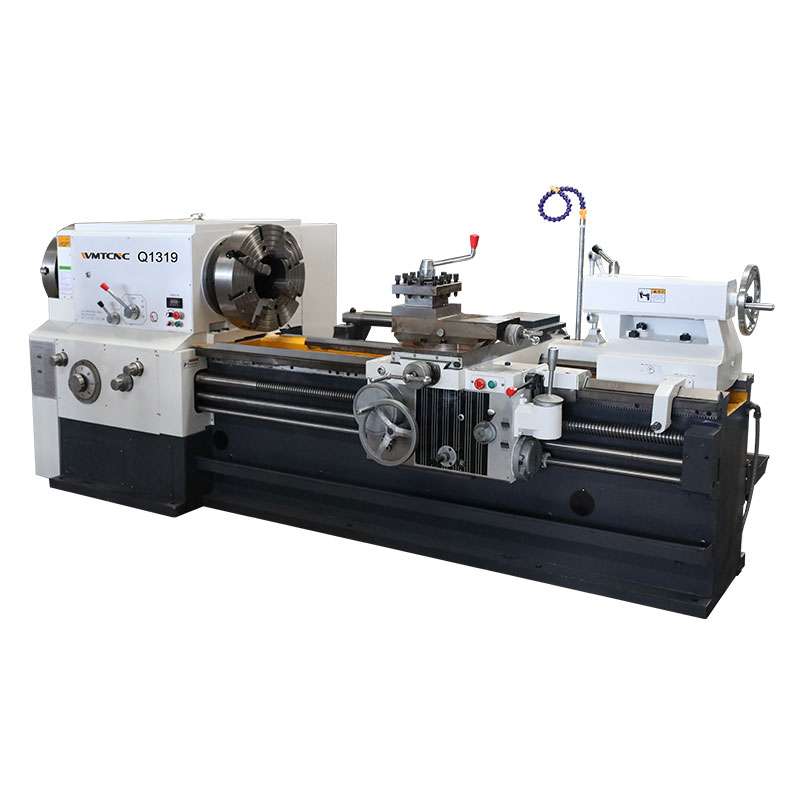

Big spindle bore and double chuck allow clamp and process big diameter pipes.
Integral machine bed adopts high strength iron to realize high rigidity and precision.
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
Equipped with a taper guide bar device this enables the machine to process taper threads.
| Specification | Unit | Q1319 |
| Max dia.swing over bed | mm | 630 |
| Max dia.swing over cross slide | mm | 350 |
| Max.length of work-piece | mm | 1500 |
| Width of bed | mm | 550 |
| Spindle bore | mm | 200 |
| Power of spindle motor | Kw | 11 |
| Spindle speed | r/min | 24-300 FWD.12 steps |
| Z axis feed grade/range | mm/r | 26/0.07-1.33 |
| X axis feed grade/range | mm/r | 22/0.02-0.45 |
| Carriage rapid traverse speed | mm/min | 4000 |
| Cross slide rapid traverse speed | mm/min | 2300 |
| Metric thread grade/range | mm | 2024/1/14 |
| Inch thread grade/range | T.P.I | 1940/2/28 |
| Module thread grade/range | mm | 0.5-7.5 |
| DP thread grade/range | D.P. | 28-2 |
| Traverse of cross slide | mm | 320 |
| Max. Traverse of turret | mm | 200 |
| Tailstock quill travel | mm | 250 |
| Tailstock quill Dia./taper | mm | Φ100/（MT5#） |
| Chuck | 4-jaw manual | |
| Overall dimensions(L*W*H) | mm | 3657×1360×1555 |
| Net weight | T | 4.5 |
