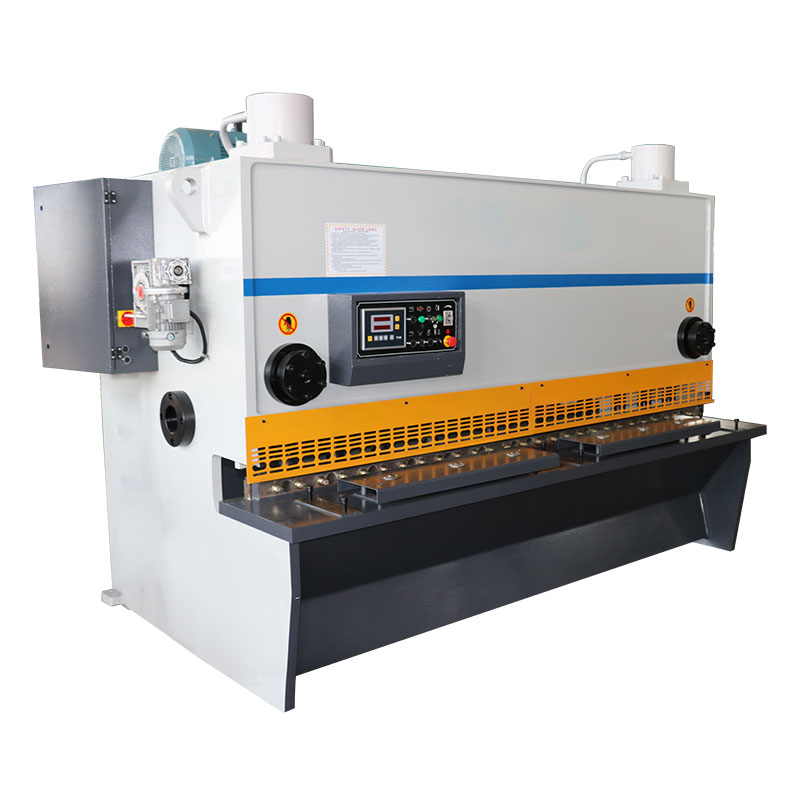

QC11Y-12X2500 Hydraulic Sheet Metal Guillotine Shearing Machine With Good Quality

  • QC11Y-12X2500
  • WMT
Quantity:

Product Description

Features:

  • Triple support rolling guide to eliminate gaps of support and enhance shearing quality.

  • As the cutting beam has been designed in an inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

  • The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.

  • Shearing angle is adjustable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.


QC11Y-12x2500

Specification Shear
Thickness
Shear
Width
Number of
Stroke
Backgauge
Rang
Shearing Angle Throat
Height
Motor
Power
mm mm min-1 mm (°) mm kw
QC11Y-4×2500 4 2500 15-35 20--600 0.5-1°30' 600 5.5
QC11Y-4×3200 4 3200 12-35 20--600 0.5-1°30' 600 5.5
QC11Y-4×4000 4 4000 10-35 20--600 0.5-1°30' 600 5.5
QC11Y-6×2500 6 2500 10-30 20--600 0.5-1°30' 800 7.5
QC11Y-6×3200 6 3200 8-30 20--600 0.5-1°30' 800 7.5
QC11Y-6×4000 6 4000 7-30 20--600 0.5-1°30' 800 7.5
QC11Y-6×5000 6 5000 6-20 20--800 0.5-1°30' 900 11
QC11Y-6×6000 6 6000 5-20 20--800 0.5-1°30' 1000 11
QC11Y-8×2500 8 2500 10-30 20--600 0.5-1°30' 800 7.5
QC11Y-8×3200 8 3200 8-30 20--600 0.5-1°30' 850 7.5
QC11Y-8×4000 8 4000 7-30 20--600 0.5-1°30' 900 7.5
QC11Y-8×5000 8 5000 6-25 20--800 0.5-2° 1000 15
QC11Y-8×6000 8 6000 5-25 20--800 0.5-2° 1050 15
QC11Y-12×2500 12 2500 10-20 20--800 0.5-2.5° 840 15
QC11Y-12×3200 12 3200 6-20 20--800 0.5-2.5° 900 15
QC11Y-12×4000 12 4000 6-20 20--800 0.5-2.5° 940 15
QC11Y-12×5000 12 5000 5-15 20--800 0.5-2.5° 1000 15
QC11Y-12×6000 12 6000 6-15 20--800 0.5-2.5° 1060 30
QC11Y-16×2500 16 2500 8-15 20--800 0.5-2°30' 840 18.5
QC11Y-16×3200 16 3200 7-15 20--800 0.5-2°30' 900 22
QC11Y-16×4000 16 4000 6-15 20--800 0.5-2°30' 940 30
QC11Y-16×5000 16 5000 6-15 20--800 0.5-2.5° 1000 30
QC11Y-16×6000 16 6000 5-15 20--800 0.5-2.5° 1100 37
QC11Y-20×2500 20 2500 9-15 20--1000 0.5-3° 900 30
QC11Y-20×3200 20 3200 7-15 20--1000 0.5-3° 950 30
QC11Y-20×4000 20 4000 6-15 20--1000 0.5-3° 1100 30
QC11Y-20×5000 20 5000 5-15 20--1000 0.5-3° 1100 37
QC11Y-20×6000 20 6000 5-15 20--1000 0.5-3° 1200 45
QC11Y-25×2500 25 2500 5-15 20--1000 0.5-3.5° 900 37
QC11Y-25×3200 25 3200 4-15 20--1000 0.5-3.5° 950 37
QC11Y-25×4000 25 4000 3-15 20--1000 0.5-3.5° 1100 37
QC11Y-32×2500 32 2500 4-12 20--1000 0.5-3.5° 1000 55
QC11Y-32×3200 32 3200 4-12 20--1000 0.5-3.5° 1100 55
QC11Y-40×2500 40 2500 3-12 20--1000 0.5-4° 1200 60
QC11Y-40×3200 40 3200 3-12 20--1000 0.5-4° 1200 60
