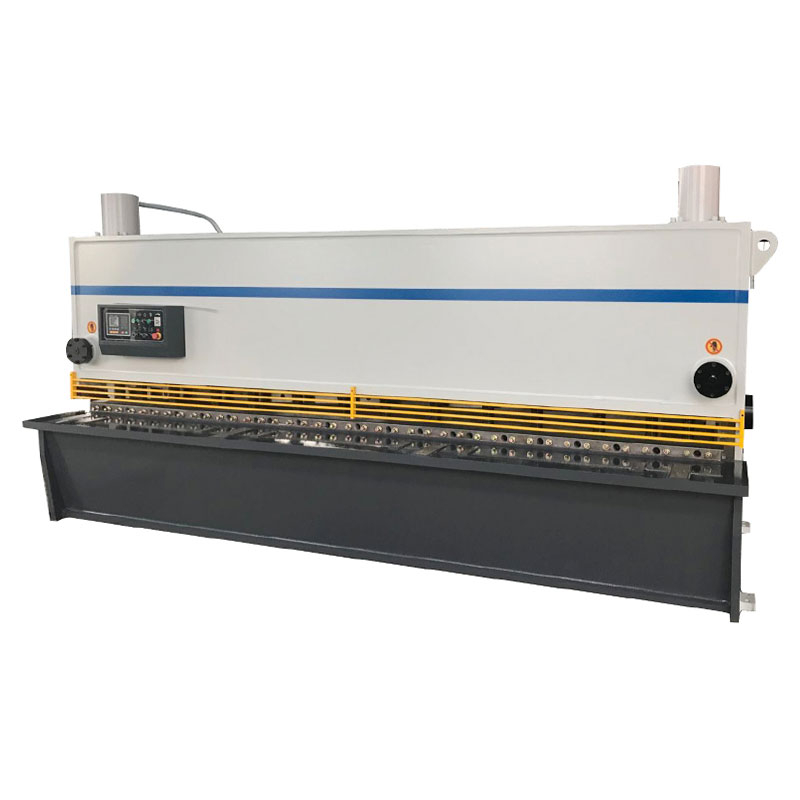

QC11Y-12X2500
WMT
| Quantity: | |
|---|---|
Product Description
Features:
Triple support rolling guide to eliminate gaps of support and enhance shearing quality.
As the cutting beam has been designed in an inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.
Shearing angle is adjustable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
| Specification | Shear Thickness | Shear Width | Number of Stroke | Backgauge Rang | Shearing Angle | Throat Height | Motor Power |
| mm | mm | min-1 | mm | (°) | mm | kw | |
| QC11Y-4×2500 | 4 | 2500 | 15-35 | 20--600 | 0.5-1°30' | 600 | 5.5 |
| QC11Y-4×3200 | 4 | 3200 | 12-35 | 20--600 | 0.5-1°30' | 600 | 5.5 |
| QC11Y-4×4000 | 4 | 4000 | 10-35 | 20--600 | 0.5-1°30' | 600 | 5.5 |
| QC11Y-6×2500 | 6 | 2500 | 10-30 | 20--600 | 0.5-1°30' | 800 | 7.5 |
| QC11Y-6×3200 | 6 | 3200 | 8-30 | 20--600 | 0.5-1°30' | 800 | 7.5 |
| QC11Y-6×4000 | 6 | 4000 | 7-30 | 20--600 | 0.5-1°30' | 800 | 7.5 |
| QC11Y-6×5000 | 6 | 5000 | 6-20 | 20--800 | 0.5-1°30' | 900 | 11 |
| QC11Y-6×6000 | 6 | 6000 | 5-20 | 20--800 | 0.5-1°30' | 1000 | 11 |
| QC11Y-8×2500 | 8 | 2500 | 10-30 | 20--600 | 0.5-1°30' | 800 | 7.5 |
| QC11Y-8×3200 | 8 | 3200 | 8-30 | 20--600 | 0.5-1°30' | 850 | 7.5 |
| QC11Y-8×4000 | 8 | 4000 | 7-30 | 20--600 | 0.5-1°30' | 900 | 7.5 |
| QC11Y-8×5000 | 8 | 5000 | 6-25 | 20--800 | 0.5-2° | 1000 | 15 |
| QC11Y-8×6000 | 8 | 6000 | 5-25 | 20--800 | 0.5-2° | 1050 | 15 |
| QC11Y-12×2500 | 12 | 2500 | 10-20 | 20--800 | 0.5-2.5° | 840 | 15 |
| QC11Y-12×3200 | 12 | 3200 | 6-20 | 20--800 | 0.5-2.5° | 900 | 15 |
| QC11Y-12×4000 | 12 | 4000 | 6-20 | 20--800 | 0.5-2.5° | 940 | 15 |
| QC11Y-12×5000 | 12 | 5000 | 5-15 | 20--800 | 0.5-2.5° | 1000 | 15 |
| QC11Y-12×6000 | 12 | 6000 | 6-15 | 20--800 | 0.5-2.5° | 1060 | 30 |
| QC11Y-16×2500 | 16 | 2500 | 8-15 | 20--800 | 0.5-2°30' | 840 | 18.5 |
| QC11Y-16×3200 | 16 | 3200 | 7-15 | 20--800 | 0.5-2°30' | 900 | 22 |
| QC11Y-16×4000 | 16 | 4000 | 6-15 | 20--800 | 0.5-2°30' | 940 | 30 |
| QC11Y-16×5000 | 16 | 5000 | 6-15 | 20--800 | 0.5-2.5° | 1000 | 30 |
| QC11Y-16×6000 | 16 | 6000 | 5-15 | 20--800 | 0.5-2.5° | 1100 | 37 |
| QC11Y-20×2500 | 20 | 2500 | 9-15 | 20--1000 | 0.5-3° | 900 | 30 |
| QC11Y-20×3200 | 20 | 3200 | 7-15 | 20--1000 | 0.5-3° | 950 | 30 |
| QC11Y-20×4000 | 20 | 4000 | 6-15 | 20--1000 | 0.5-3° | 1100 | 30 |
| QC11Y-20×5000 | 20 | 5000 | 5-15 | 20--1000 | 0.5-3° | 1100 | 37 |
| QC11Y-20×6000 | 20 | 6000 | 5-15 | 20--1000 | 0.5-3° | 1200 | 45 |
| QC11Y-25×2500 | 25 | 2500 | 5-15 | 20--1000 | 0.5-3.5° | 900 | 37 |
| QC11Y-25×3200 | 25 | 3200 | 4-15 | 20--1000 | 0.5-3.5° | 950 | 37 |
| QC11Y-25×4000 | 25 | 4000 | 3-15 | 20--1000 | 0.5-3.5° | 1100 | 37 |
| QC11Y-32×2500 | 32 | 2500 | 4-12 | 20--1000 | 0.5-3.5° | 1000 | 55 |
| QC11Y-32×3200 | 32 | 3200 | 4-12 | 20--1000 | 0.5-3.5° | 1100 | 55 |
| QC11Y-40×2500 | 40 | 2500 | 3-12 | 20--1000 | 0.5-4° | 1200 | 60 |
| QC11Y-40×3200 | 40 | 3200 | 3-12 | 20--1000 | 0.5-4° | 1200 | 60 |
